KAT Napoleonic

Inspired by early 19th century history.
Optimized for affordable language compatibility.

KAT Napoleonic

Now Shipping to Vendors!

Quick Links

This Sitehttps://nopunin10did.com/kat-napoleonic/
GeekhackGB Thread on Geekhack

Shipping / Production Update

Updated 09 November 2022:

KAT Napoleonic has finished production at Keyreative after what ended up being a nearly two-year-long wait. ZFrontier has begun shipping some orders to their own customers, and Keyreative is shipping the keycaps to the other vendors (though specifics in terms of progress vary by vendor).

I made a large personal order that included copies of most (but not all) kits, and I have received those. I have taken several photos of the keycaps on several different keyboards and am sharing those on social media, one board per day. The full collection of photos will be posted on nopunin10did.com after the series is complete (link TBD).


  1. Background
  2. About KAT
  3. Physical Color Standards
  4. Vendors
  5. Renders
  6. Kits
  7. Existing Set Comparison
  8. Peripherals
  9. ISO / ANSI Localization
  10. All Kits Gallery
  11. Thanks
  12. Copyright & Citations
  13. Links & Contacts



On the Ninth of November, 1799 (18 Brumaire in the Revolutionary calendar), a coup d’etat overthrew the French Directorate and replaced it with a new government: a Consulate to be led by General Napoleon Bonaparte. Just a few short years later, he would be crowned Emperor.

To say his rise to power ruffled a few feathers across Europe would be a gross understatement. While he is credited with bringing about positive reforms to the legal and governmental systems of France, his legacy is one tainted by costly, bloody wars across the continent.

Those early decades of the nineteenth century, from Napoleon’s rise to his death, roughly mark the Napoleonic Period, an era that left indelible marks upon the face of Europe and the world.

KAT Napoleonic is a keycap set in the KAT profile that explores the history and artistic depictions of the Napoleonic Period.

Core Features

Neoclassical Typeface

KAT Napoleonic utilizes a modified form of Playfair Display for most of its alpha keys and legend text. It is a serif-based typeface (uncommon in keycaps), and it is inspired by the Transitional and Neoclassical typefaces of the nineteenth century: Baskerville, Bodoni, and Didot.

Wide Affordable Localization

Because of the global nature of Napoleon’s impact on history, a primary goal for KAT Napoleonic has always been wide localization support. While it may not always be practical for manufacturers to support a wider array of languages and layouts in a cost-effective manner, the KAT profile does provide that flexibility.

While this keyset cannot feasibly provide support for every language worldwide, KAT Napoleonic supports more than twenty-one locales in base alpha kits. Kits available include many that are rarely (if ever) seen in the Mechanical Keyboard hobby: Swiss, BÉPO, South Slavic, Tamil, Cherokee, and Canadian French.

Localized alpha kit availability may vary by vendor.

Colors & Uniforms

KAT Napoleonic’s primary alpha legends present dark indigo text upon a warm, ivory-like white background. A lower-contrast yellow-gold color is used for alpha key sublegends.

KAT Napoleonic’s modifier keys come in three “uniforms” of color, each inspired by the military uniforms of the era, with particular attention to the Battle of Austerlitz (1805). Austerlitz was a clash of three empires: France, Russia, and Austria. For KAT Napoleonic, you are likewise given a choice of three uniforms: French Indigo, Russian Green, and Austrian White.

French Indigo Uniform

The predominant uniform of Napoleon’s armies was a dark blue-black or indigo. Mods in the French Indigo uniform of KAT Napoleonic are white-on-blue with yellow-gold accents.

Core Modifier Kits in French Indigo

French Indigo mods are marked with text-and-icon legends. Where possible, these legends use actual terminology from modern French keyboards: the abbreviation Maj to represent Shift, Entrée for Enter, et cetera.

Update 28 Sept 2020:
By popular demand, the Ortho kit for French Indigo has been converted to use icons only. Additionally, an alternative British Navy kit for mainstream legends is now planned.

Russian Green Uniform

Russian imperial army uniforms of the eighteenth and nineteenth centuries were green in color. The exact shade has varied through time and in artistic depictions, sometimes appearing in a brilliant jewel tone, and other times a more drab olive (a.k.a. Russian green). Russian Green mods for KAT Napoleonic present white legends upon a darker “moss” green that splits the difference between drab and saturated.

Core Modifier Kits in Russian Green

Russian Green mods are marked with text-and-icons. Like modern Russian keyboards, they use standard English text and abbreviations for all modifier labels.

Austrian White Uniform

Shortly after Napoleon dissolved the Holy Roman Empire, Franz Joseph Karl, not wishing to relinquish the title of Emperor, rebranded his domain as the Austrian Empire. The Austrian imperial army commonly wore white; Austrian White mods for KAT Napoleonic are likewise white with indigo or yellow-gold legends (matching the alpha colorway).

Core Modifier Kits in Austrian White

Keyboards used in German-speaking countries like Austria typically use a standard set of icons for major modifiers (Enter, Shift, et cetera) with no text. KAT Napoleonic extends this pattern to the whole keyboard; the Austrian White uniform is an icons-only option for traditional and ortholinear keyboards.

By Popular Demand: British Navy

By far, the most requested change to KAT Napoleonic, per survey data, has been the addition of more mainstream English language modifier legends using the French Indigo colors. In order to satisfy this popular request, KAT Napoleonic now includes one kit with an alternative uniform: British Navy.

The British did not fight at Austerlitz, but they were a primary antagonist for Napoleon through much of the Napoleonic period.

The British Navy colorway will be available for a single mods kit for mainstream TKL, 60%, and 70% boards. Its primary mod colors are the same as French Indigo but has more mainstream legends.

Back to Index




Back to Index

About KAT

KAT is an ultra smooth sculpted profile PBT dye-sub keycap set that embraces the classic aesthetics of spherical keycaps [and] combines the ergonomics of Cherry profile keycaps.

Keyreative All Touch – zFrontier (description from KAT Alpha)

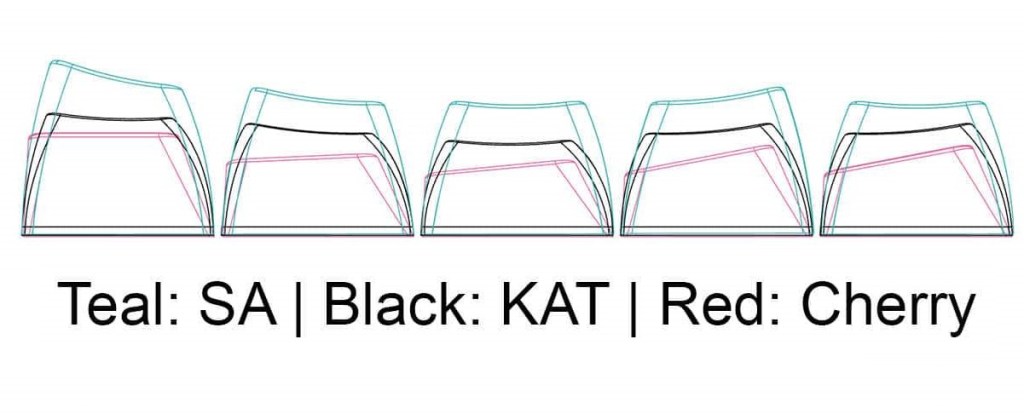

Comparison of KAT keycap profile to SA and Cherry profiles

KAT keycaps are compatible with MX-style keyboard switches. They are made from PBT, the industry-standard plastic for dye-sublimated caps.

KAT rows are numbered bottom-to-top, with the lowest (shift and spacebar rows) labeled R1, the home row labeled R2, the Q row labeled R3, et cetera. KAT Napoleonic will use a 4-4-3-2-1-1 sculpt analogous to what is commonly seen in Cherry or SA-profile keycaps.

For more information about keycap profiles and group buys, visit Keyboard University.

Back to Index

Physical Color Standards

KAT-Nap colors: RAL 5011, RAL 9010, Pantone 7403 U, RAL 6005, & RAL 3031

Colors shown in keyboard renders and diagrams should not be treated as accurate representations of final keycap colors. Manufacturer samples will be checked against physical color decks of the RAL and Pantone standards above. Be aware that some variation is always possible, and these colors are not guaranteed to be exact.

Back to Index



USA, Canada, China, & Europe

The following table displays prices for zFrontier (China), MKUltra (US), myKeyboard.eu (Europe), and Ashkeebs (Canada).

  • Prices exclude Shipping & Handling, except for zFrontier (for orders over 100 USD).
  • Prices for myKeyboard include VAT.
  • Ashkeebs allows customers to pay in either USD or CAD; USD prices for Ashkeebs will match those from MKUltra.
Regular Alpha kits$ 34.00$ 32.00€ 36,00$ 42.00
Large Alpha kits$ 38.00$ 36.00€ 40,00$ 48.00
Extra Large Alpha kits$ 42.00$ 40.00€ 44,00$ 54.00
TKL Mods$ 72.00$ 67.00€ 73,00$ 90.00
TKL Alt Mods – British Navy$ 52.00$ 48.00€ 54,00$ 65.00
Numpad$ 23.00$ 22.00€ 25,00$ 28.00
Ortho Mods$ 42.00$ 39.00€ 44,00$ 52.00
Forties Mods$ 51.00$ 47.00€ 52,00$ 64.00
Ergo Mods$ 58.00$ 55.00€ 59,00$ 74.00
Spacebars$ 30.00$ 28.00€ 32,00$ 37.00
Novelties$ 38.00$ 35.00€ 39,00$ 47.00
Mac Kit$ 21.00$ 20.00€ 23,00$ 26.00
Blank Ergo Ortho Kit$ 56.00$ 52.00€ 57,00$ 70.00
Madness Kit$ 47.00$ 44.00€ 49,00$ 60.00

* See Alpha Kit Pricing Notes below for details on which kits fall into which tier.

Southeast Asia & South America

Prices for HEX Keyboards (Singapore) and Fancy Customs (Chile) are below. These vendors are selling a subset of all kits.

  • Prices exclude Shipping & Handling.
  • Prices for Fancy Customs include VAT.
  • Prices for HEX Keyboards include GST.
  • Fancy Customs allows customers to pay in either USD or CLP; USD prices for Fancy Customs match those from zFrontier.
  • HEX Keyboards allows customers to pay in AUD, USD, GBP, EUR, or SGD, with all prices auto-calculated based on the SGD listing price and a current exchange rate.
KitsHEX Keyboards
Fancy Customs
Default US English – Jefferson$ 44.00$ 27.290
Cherokee – Sequoyah$ 44.00
Colemak – Jonathan Strange$ 58.00
Dvorak – Mr Norrell$ 51.00
German – Metternich$ 27.290
Japanese – Nagasaki$ 58.00$ 33.690
Polish & Lithuanian – Uhlan$ 27.290
Russian – Alexander$ 51.00$ 30.490
Spanish – Agustina$ 30.490
Tamil – Pondicherry$ 44.00$ 27.290
UK English & Irish – Wellington$ 44.00
US Int’l & Netherlands – Waterloo$ 27.290
TKL Mods$ 98.00$ 57.690
TKL Alt Mods – British Navy$ 70.00$ 41.690
Numpad$ 30.00$ 18.490
Ortho Mods$ 58.00$ 33.690
Forties Mods$ 70.00$ 40.790
Ergo Mods$ 80.00$ 46.390
Spacebars$ 40.00$ 24.090
Novelties$ 51.00$ 30.490
Mac Kit$ 28.00$ 16.890

Alpha Kit Pricing Notes

Alpha kits are divided into three price tiers: Regular, Large, & Extra Large.

  1. Large Alpha kits
    1. Belgian & Apple French (Marie Louise)
    2. Dvorak (Mr Norrell)
    3. Nordic (Bernadotte)
    4. Russian (Alexander)
    5. Spanish (Agustina)
  2. Extra Large Alpha kits
    1. Colemak+ (Jonathan Strange)
    2. Japanese (Nagasaki)
  3. Regular Alpha kits
    1. (everything else)

Back to Index


Renders are not guaranteed to look like the final product, particularly with regard to color. The physical color standards, not the renders, will be used to evaluate color samples from Keyreative.

Also note that minor corrections to legends shown in these renders have occurred and may continue to occur for the duration of the Interest Check.

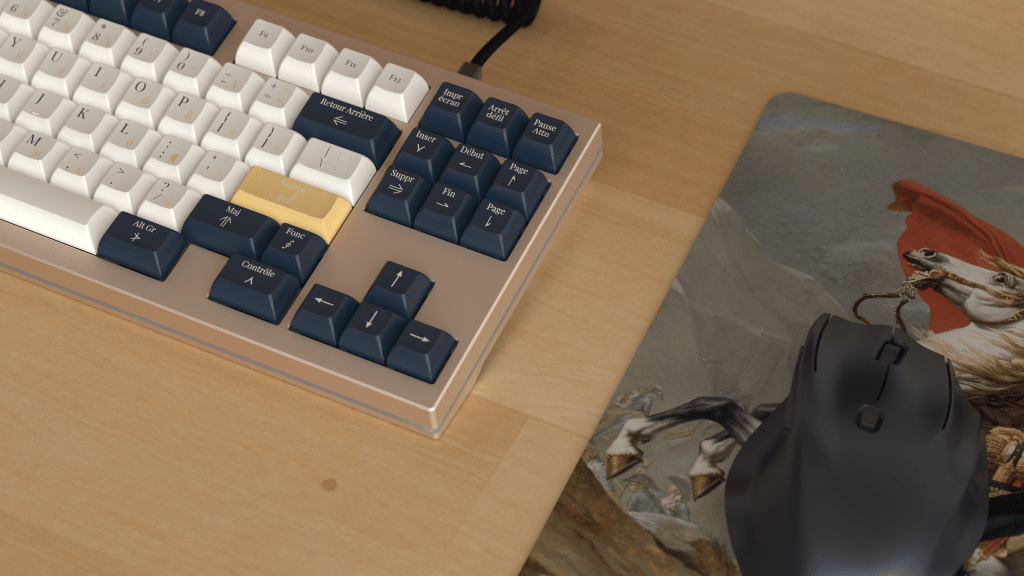

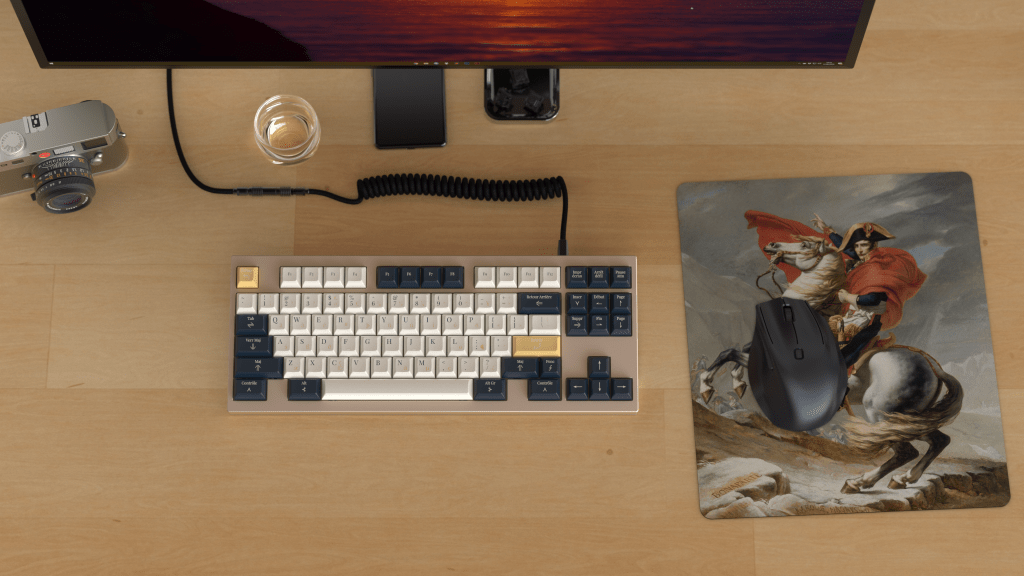

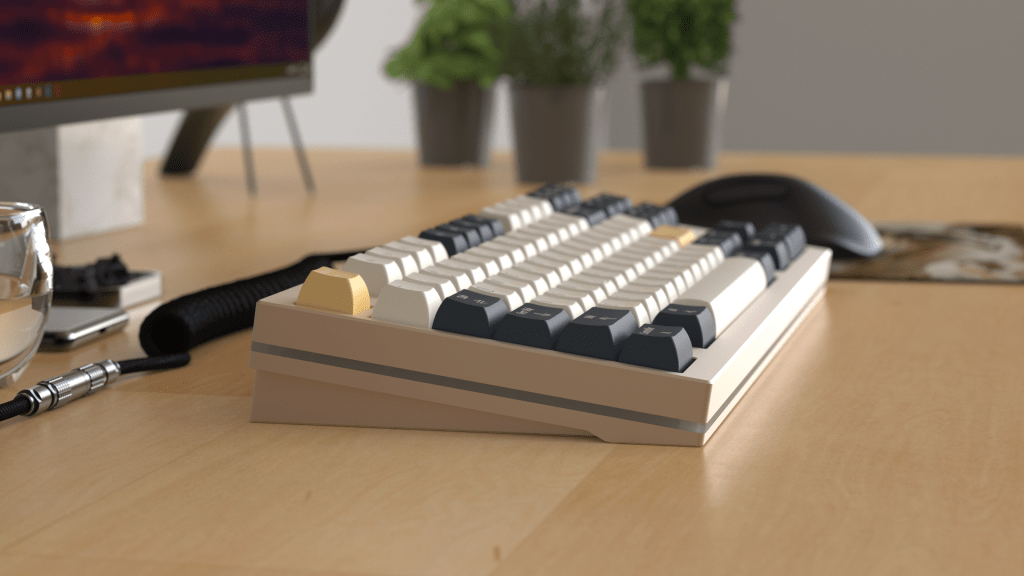

US International on Mech27-TKL by Mech27. Renders by Manzel.

1800s Layout

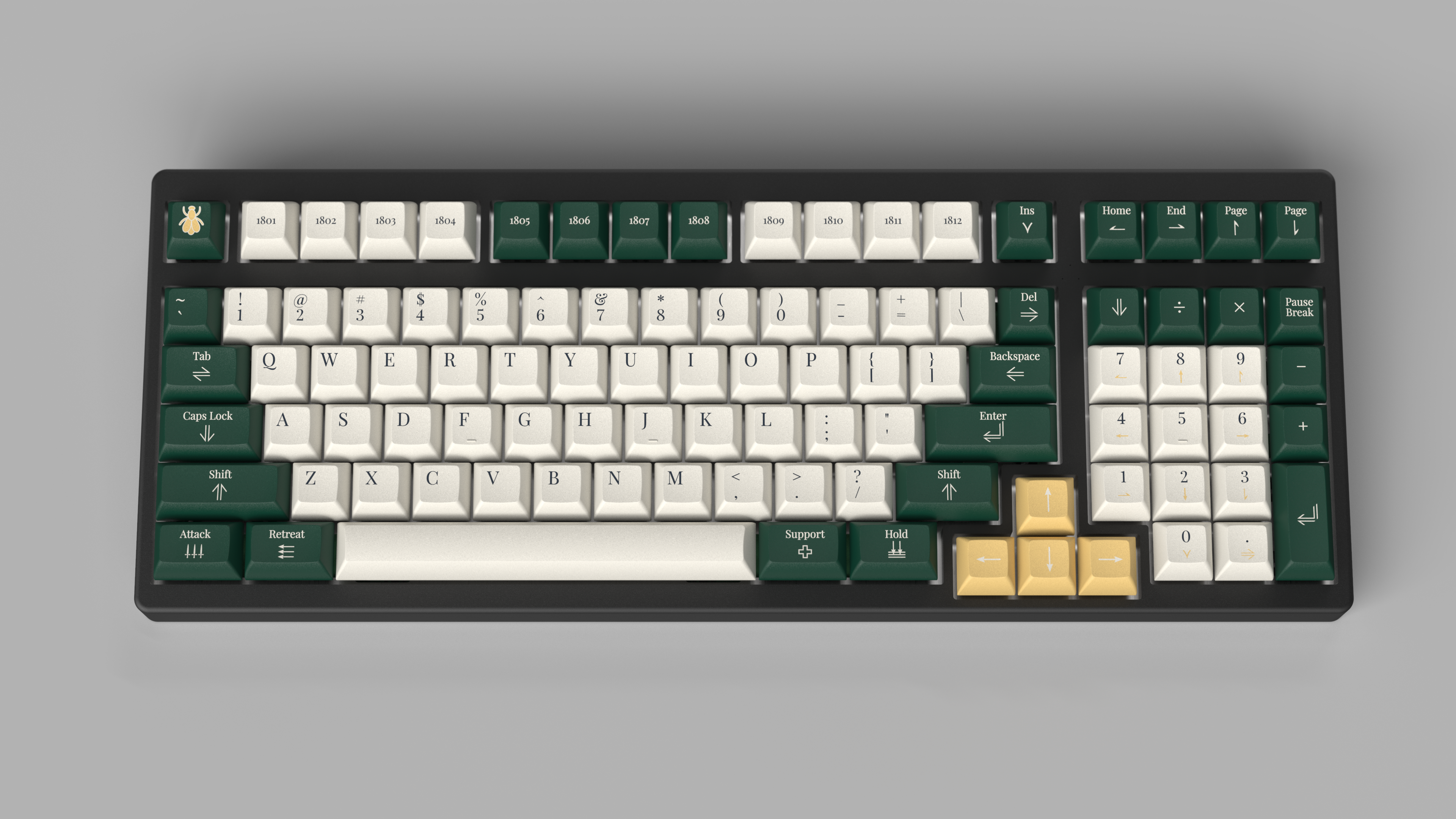

US English on KBD19X by KBDfans. Renders by Manzel.

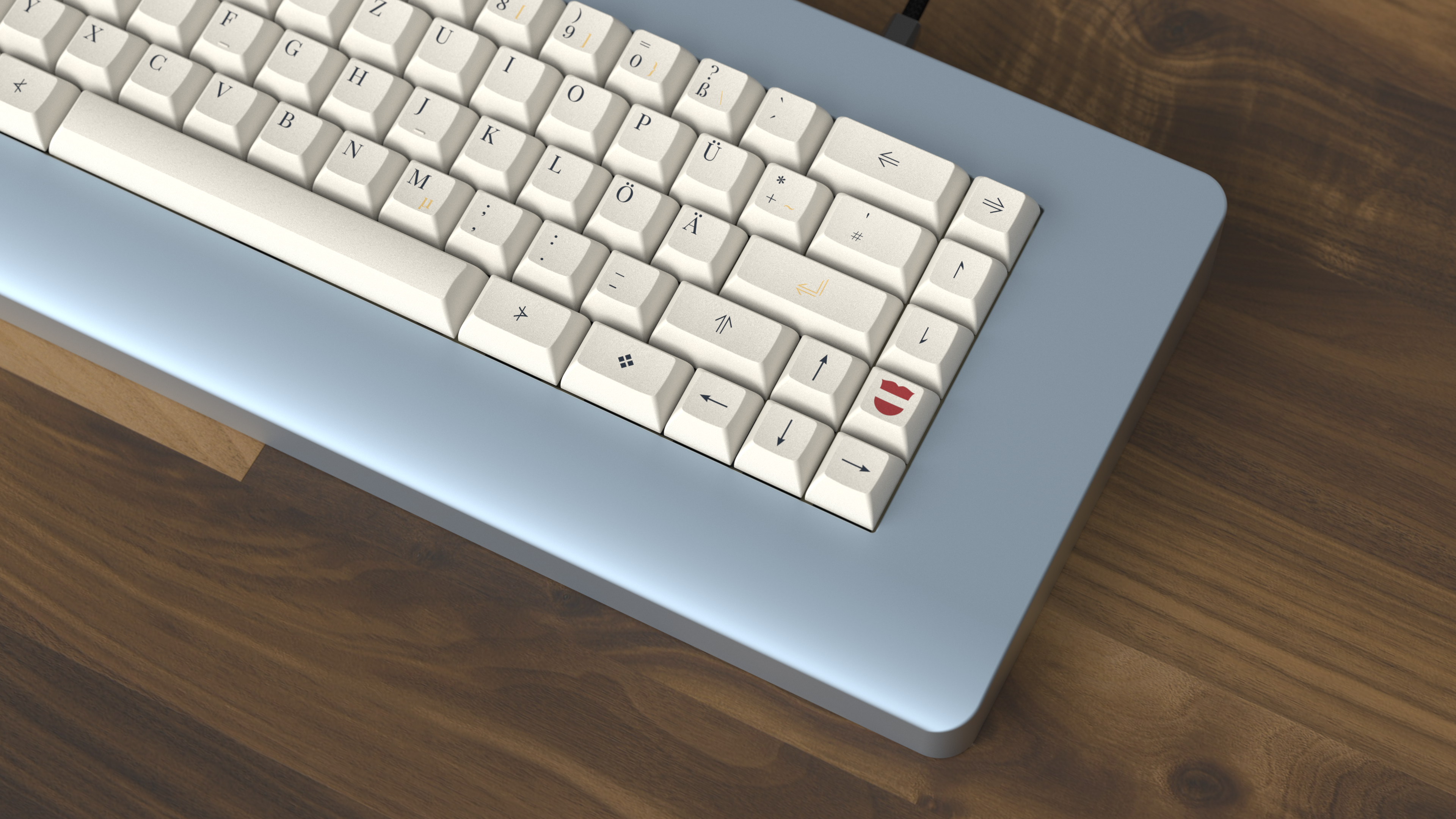

Austrian Elephant Ivory

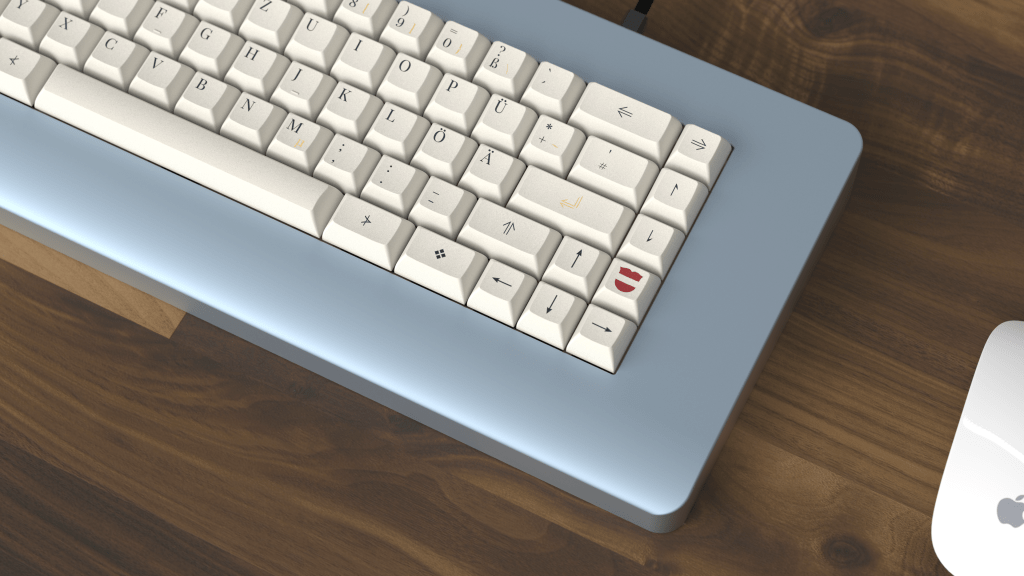

German on S7-Elephant by jacky. Renders by Manzel.

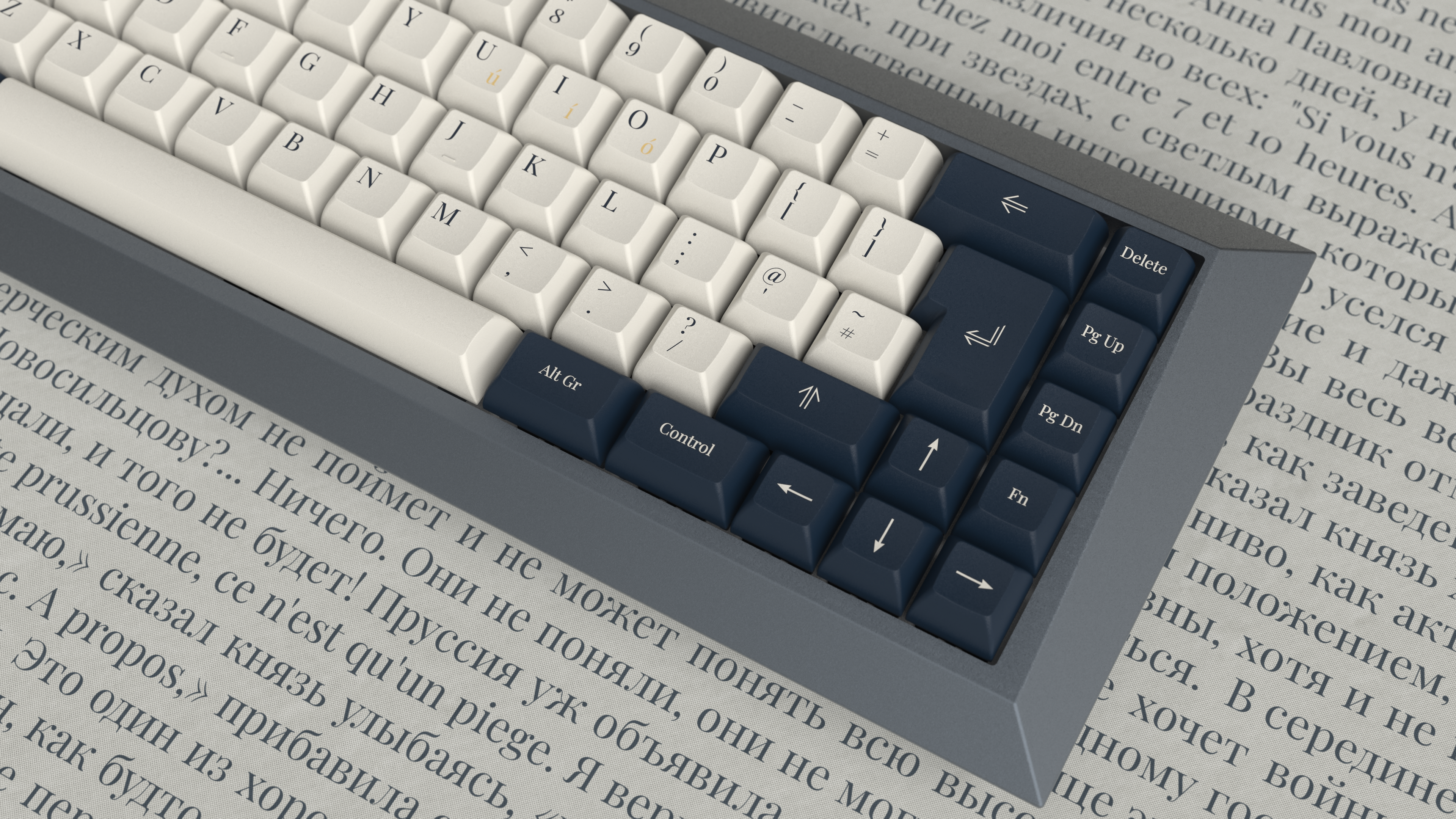

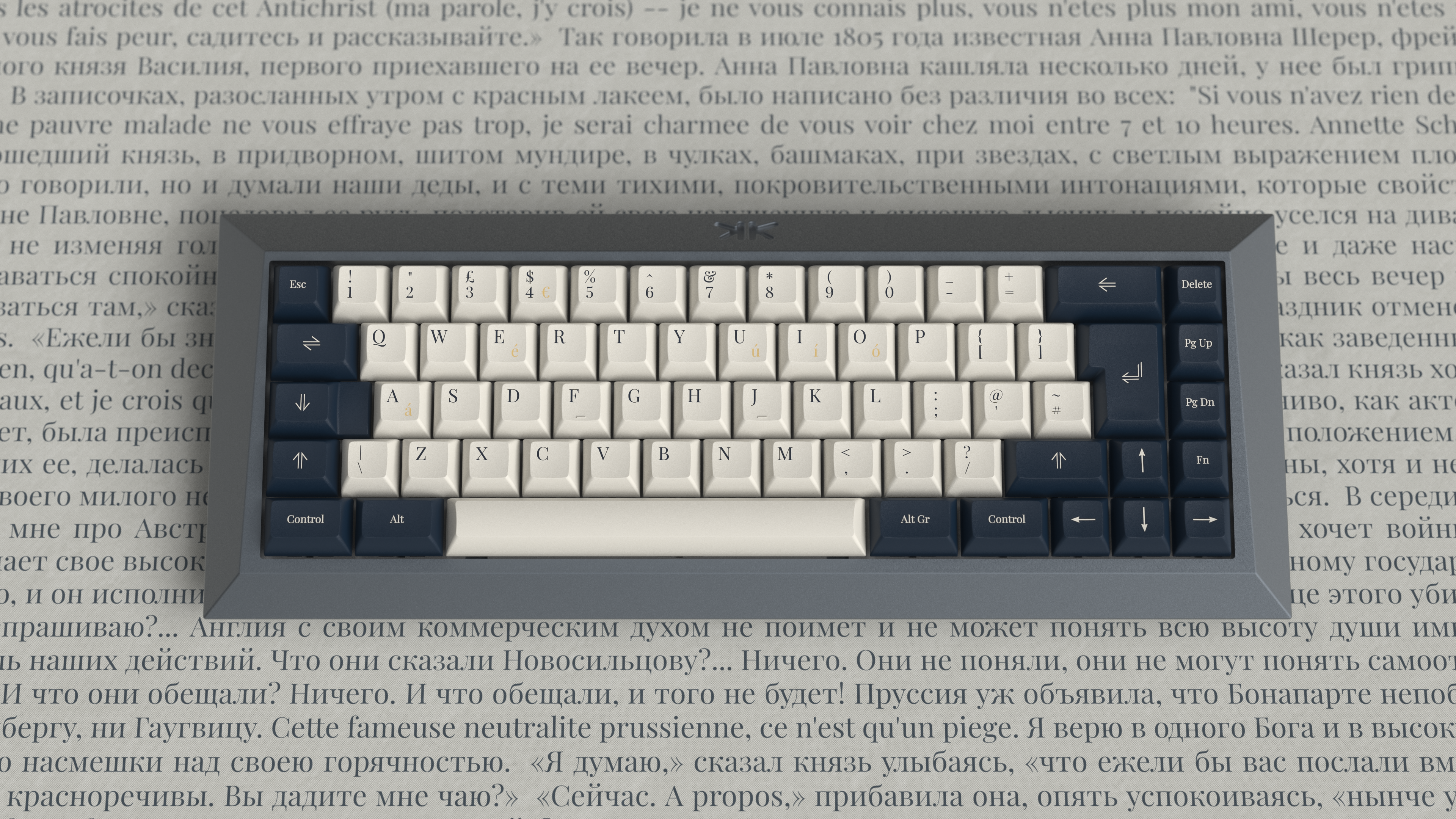

British Navy on Conone

UK / Irish alphas and British Navy Alt TKL Mods on Conone by kindakeyboards. Renders by Manzel.

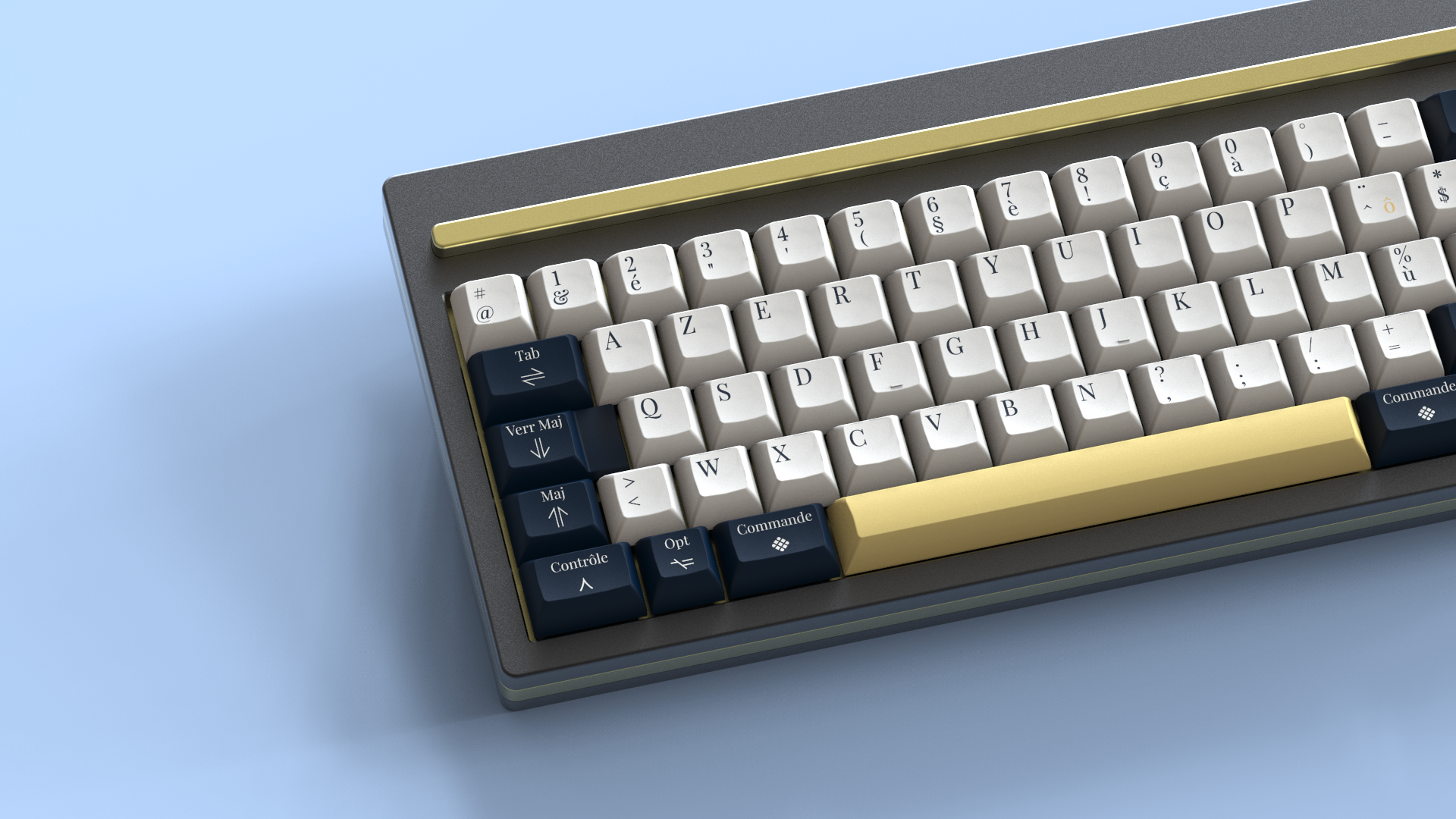

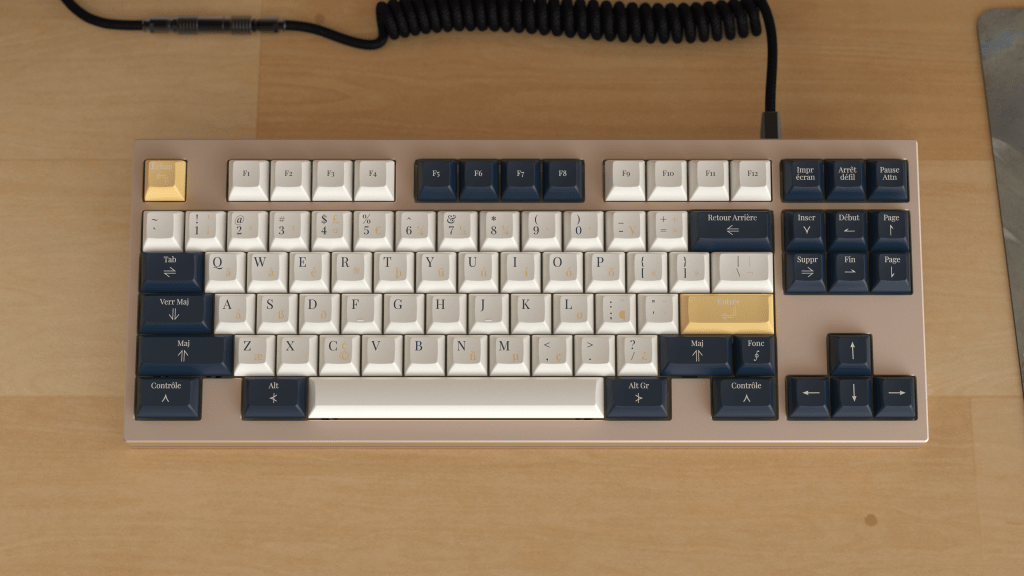

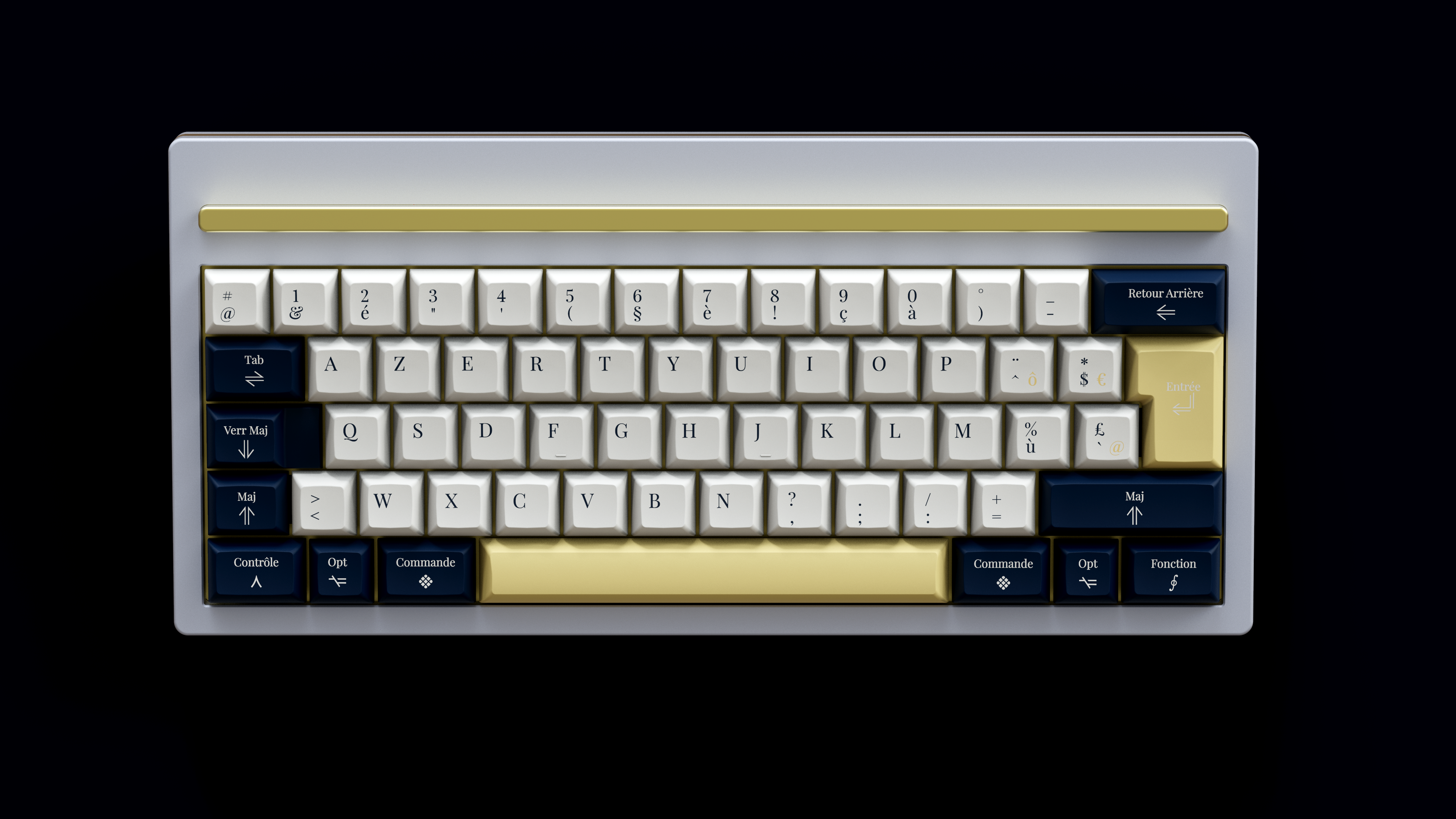

AZERTY for Apple

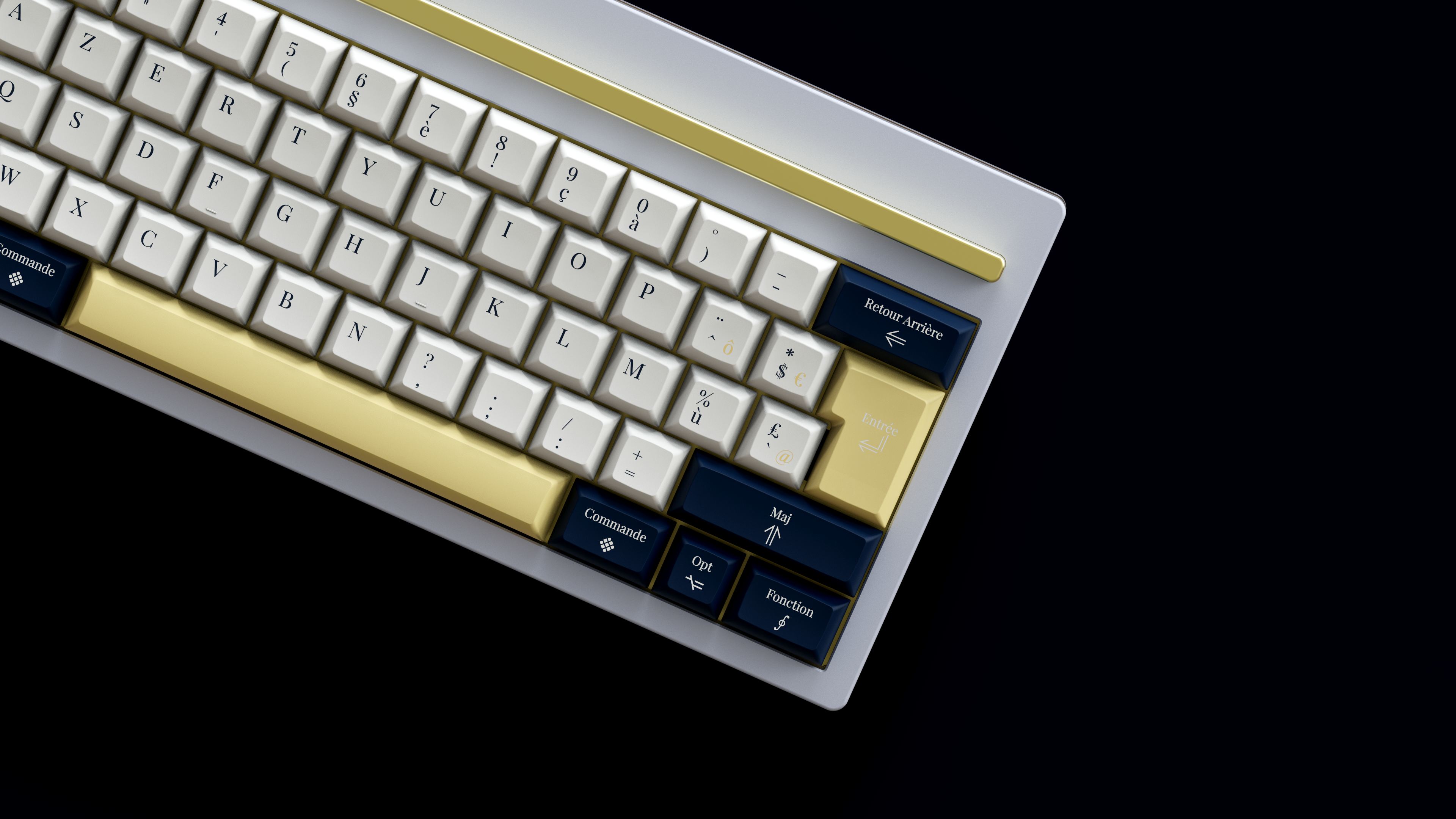

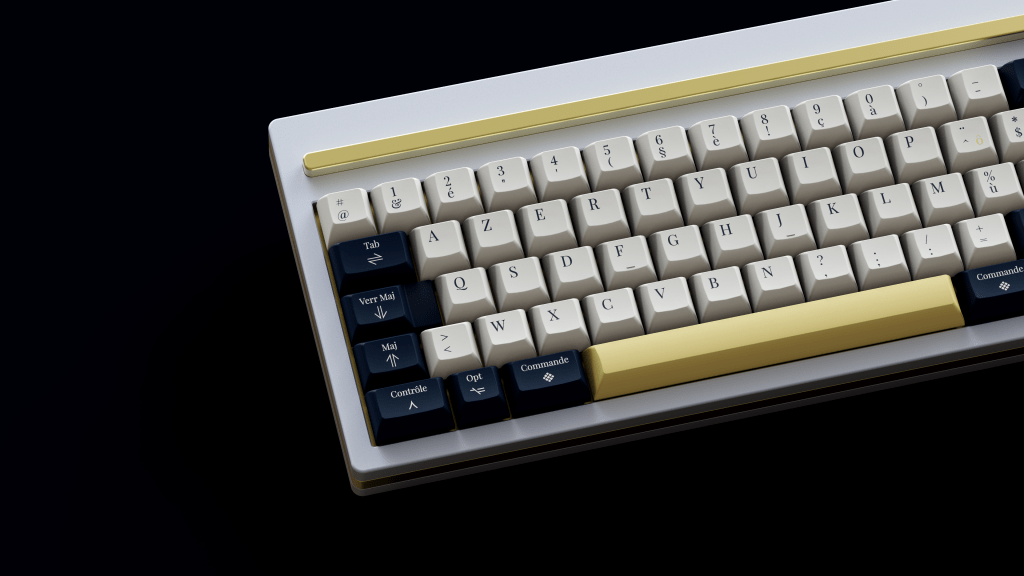

Apple AZERTY on J02 by Jae-3soteric. Renders by Ulliam.

Polish-Lithuanian Ergonomics

Polish/Lithuanian on Boardrun CNC by Shensmobile. Renders by Manzel.

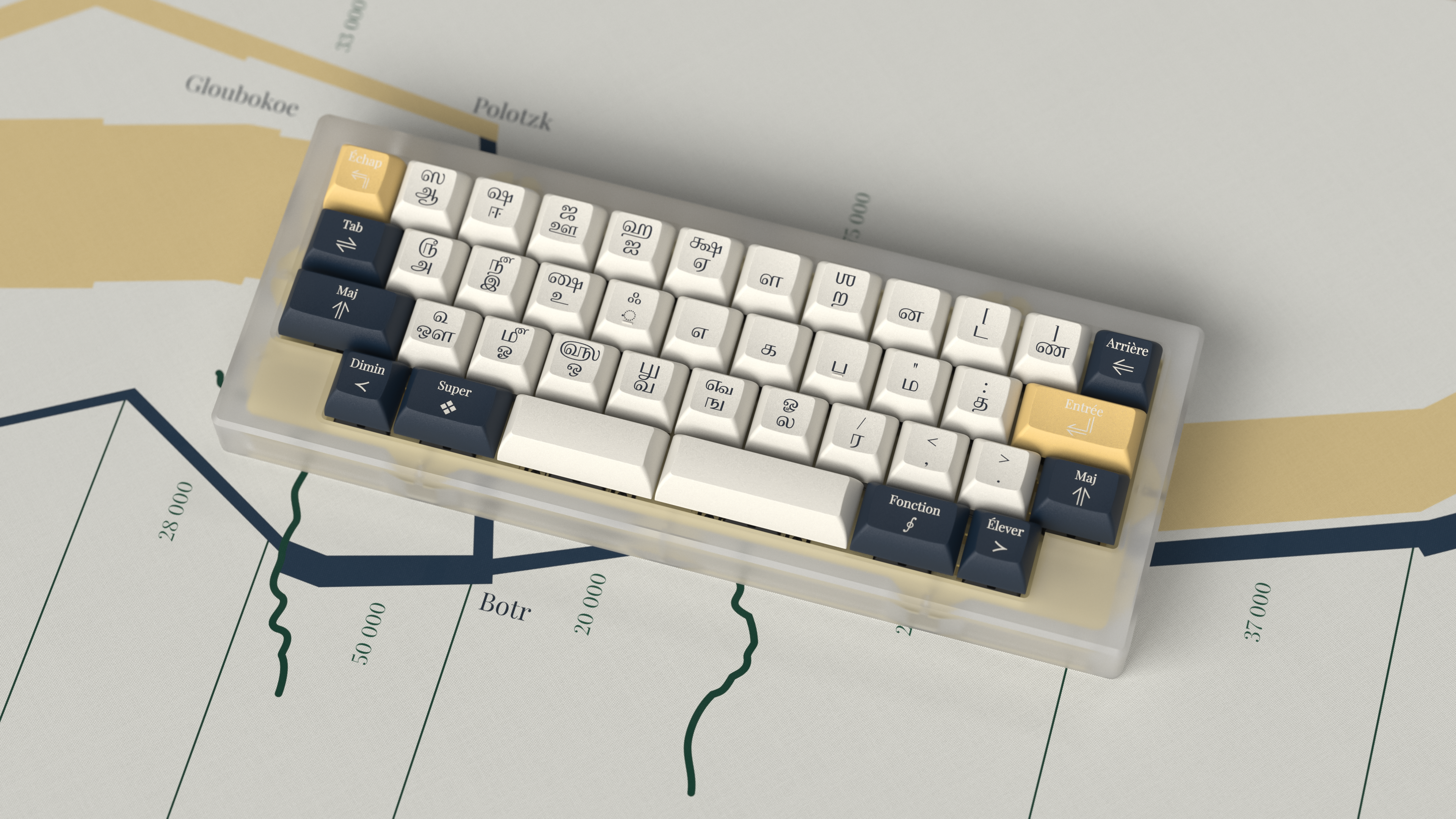

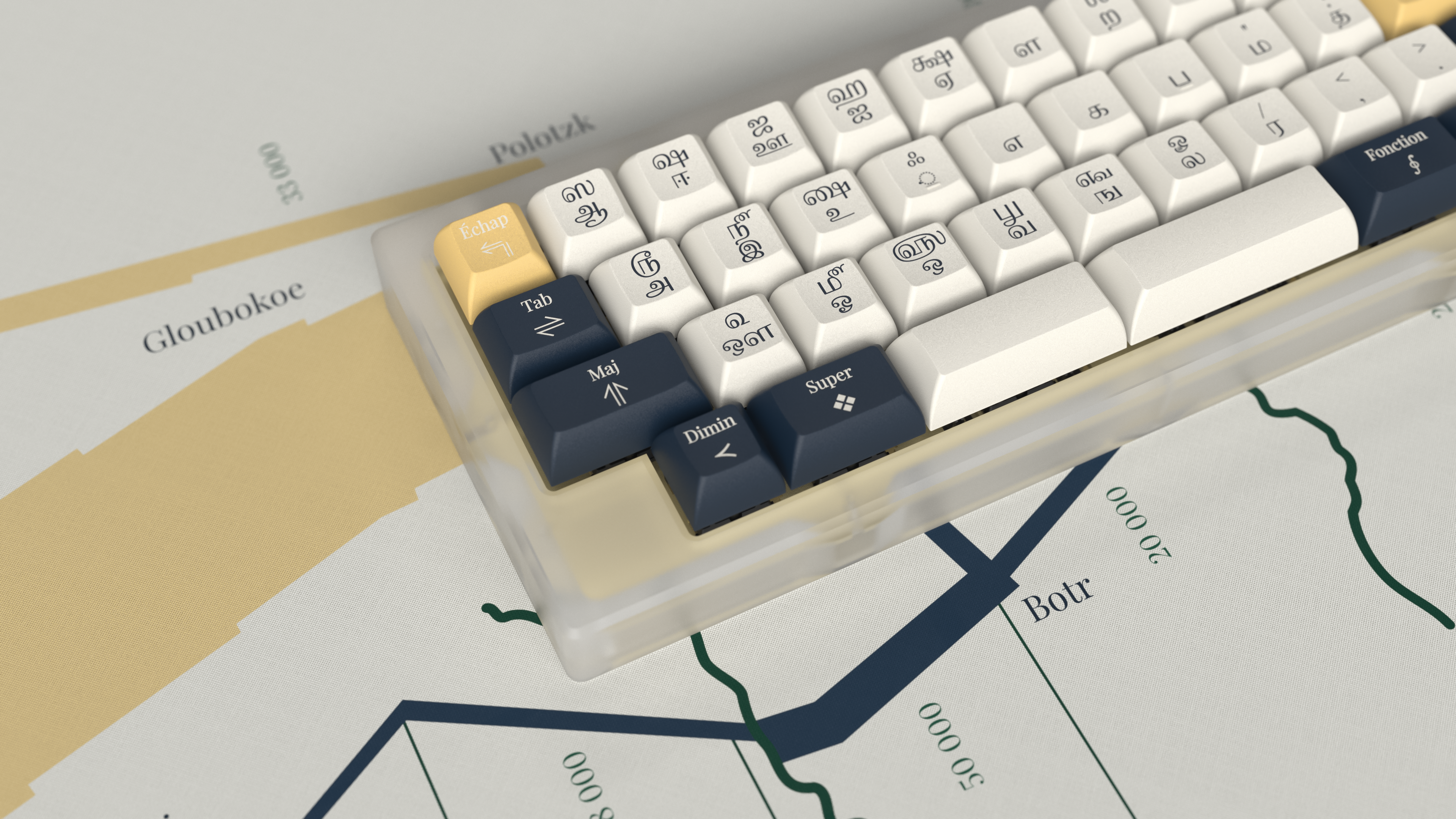

Pondicherry Neuron

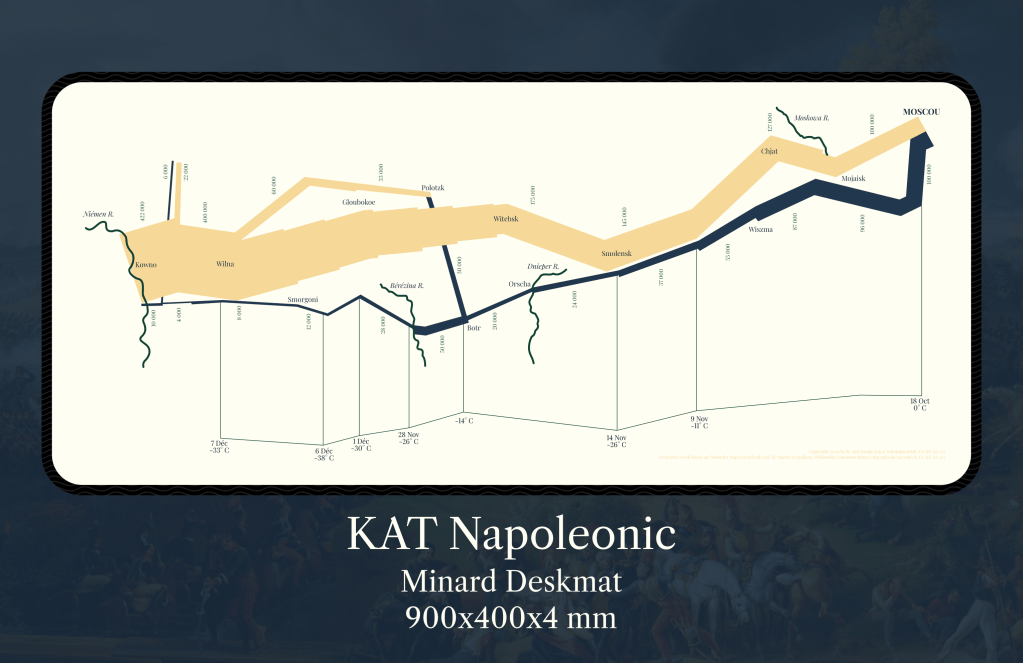

Tamil on Neuron by walletburner. Renders by Manzel. See also: Minard deskmat.

Abacus: Clean Calculations

Austrian White Numpad kit on Abacus by SomeGreekGuy (unreleased). Renders by Manzel. See also: Minard deskmat.

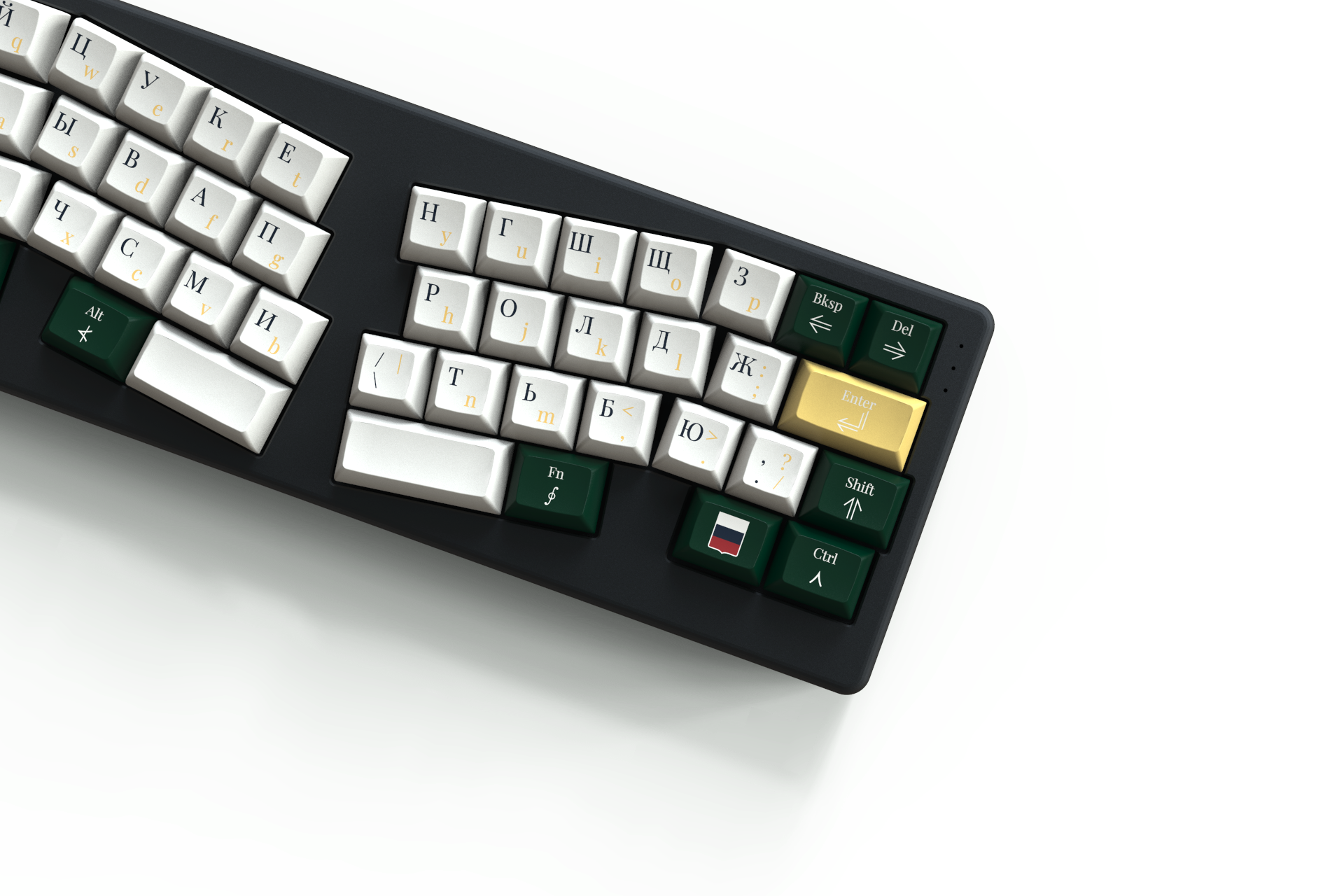

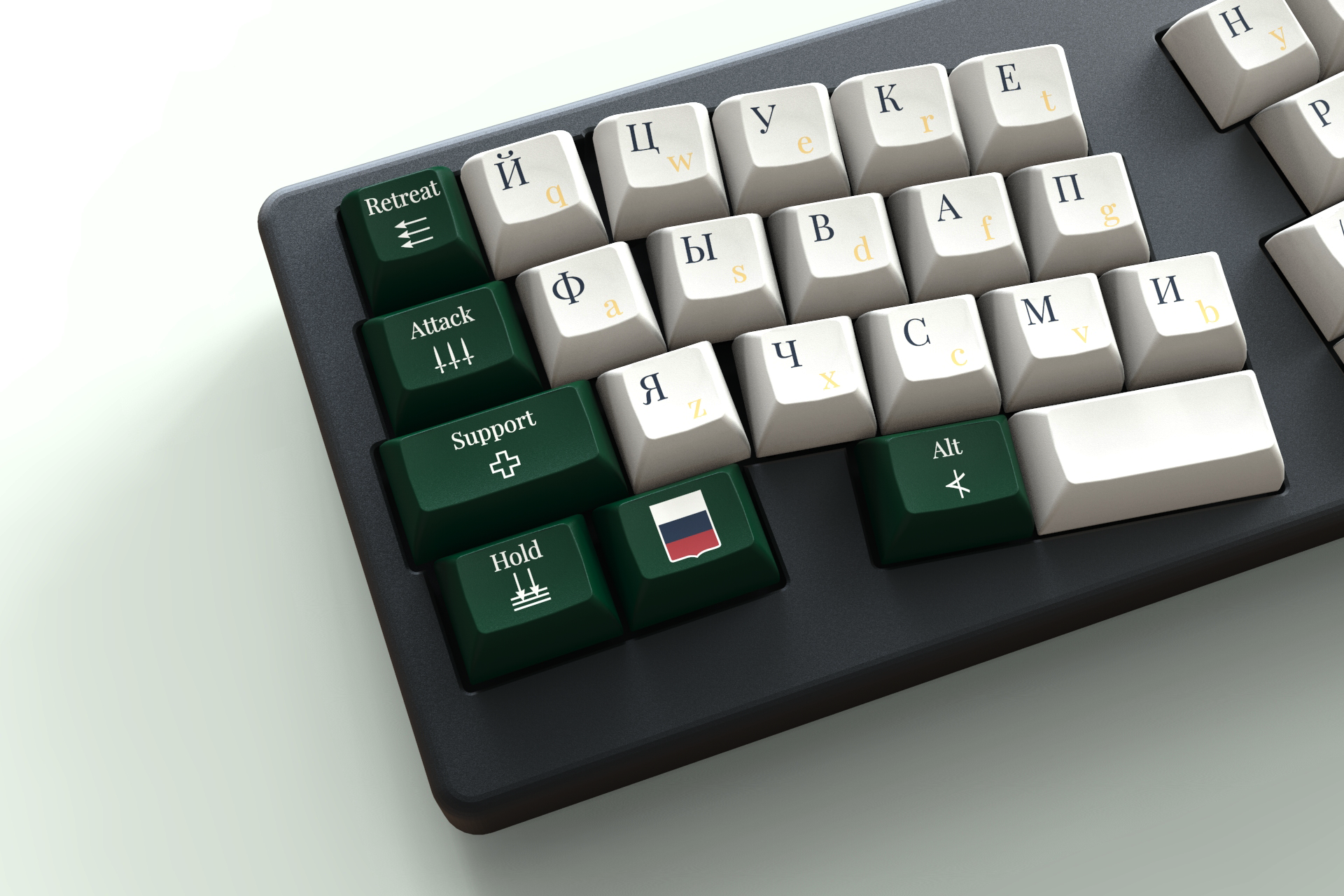

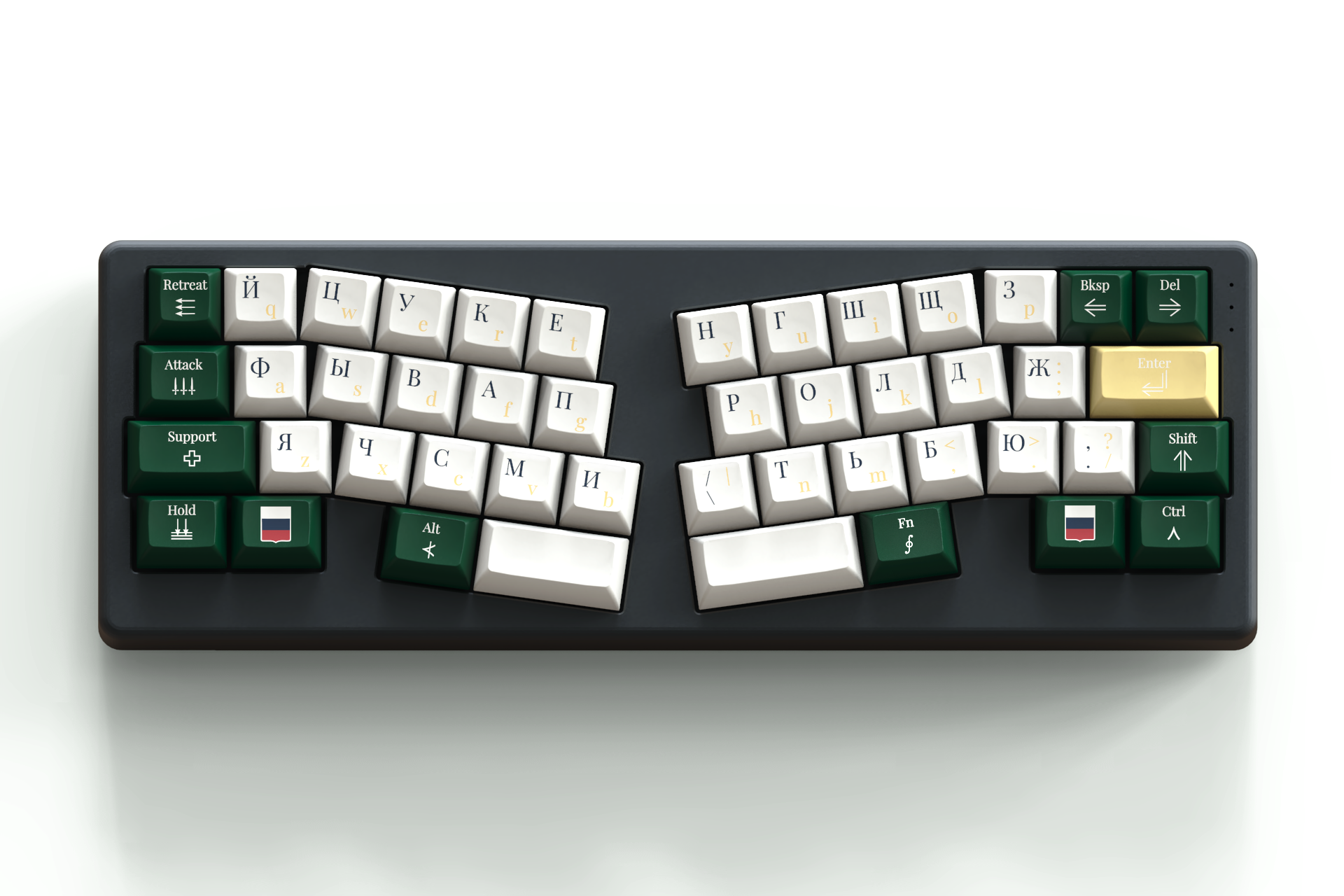

Russian Prime

Prime_E by Prime Keyboards. Renders by Ulliam. Post-processing by Manzel.

Back to Index


As is typical for KAT, customers will need to choose a selection of “kits” that together will cover their chosen keyboard(s). For KAT Napoleonic, kits are broken into three major categories:

  1. Alpha Kits
  2. Core Mod Kits
  3. Miscellaneous Kits

The vast majority of keyboards will require one Alpha kit and a Core Mod kit. Some will also require a Numpad or one of the Miscellaneous kits.

Kit Albums on Imgur


Kit diagrams are not to be interpreted as an accurate representation of the final look of the product.

Kit Shopping List by Keyboard Type

Here are the kits required to cover some example keyboard formats.

Keyboard TypeAlphas?Primary Core ModsOther Kit(s) Req.
Tenkeyless (TKL)AlphasTKL Mods
Standard Full-SizeAlphasTKL ModsNumpad
Razer HuntsmanAlphasTKL ModsNumpad & Spacebars
1800 layoutAlphasTKL ModsNumpad
Standard 60-75%AlphasTKL Mods
TKL Apple BoardAlphasTKL ModsMac Kit
Alice or QuefrencyAlphasTKL ModsSpacebars
Planck or PreonicAlphasOrtho Mods
40% (non-Ortho)Alphas40s Mods
CandyBarAlphas40s ModsNumpad
MoonlanderAlphasOrtho Mods
Ergodox or BoardwalkAlphasErgo Mods

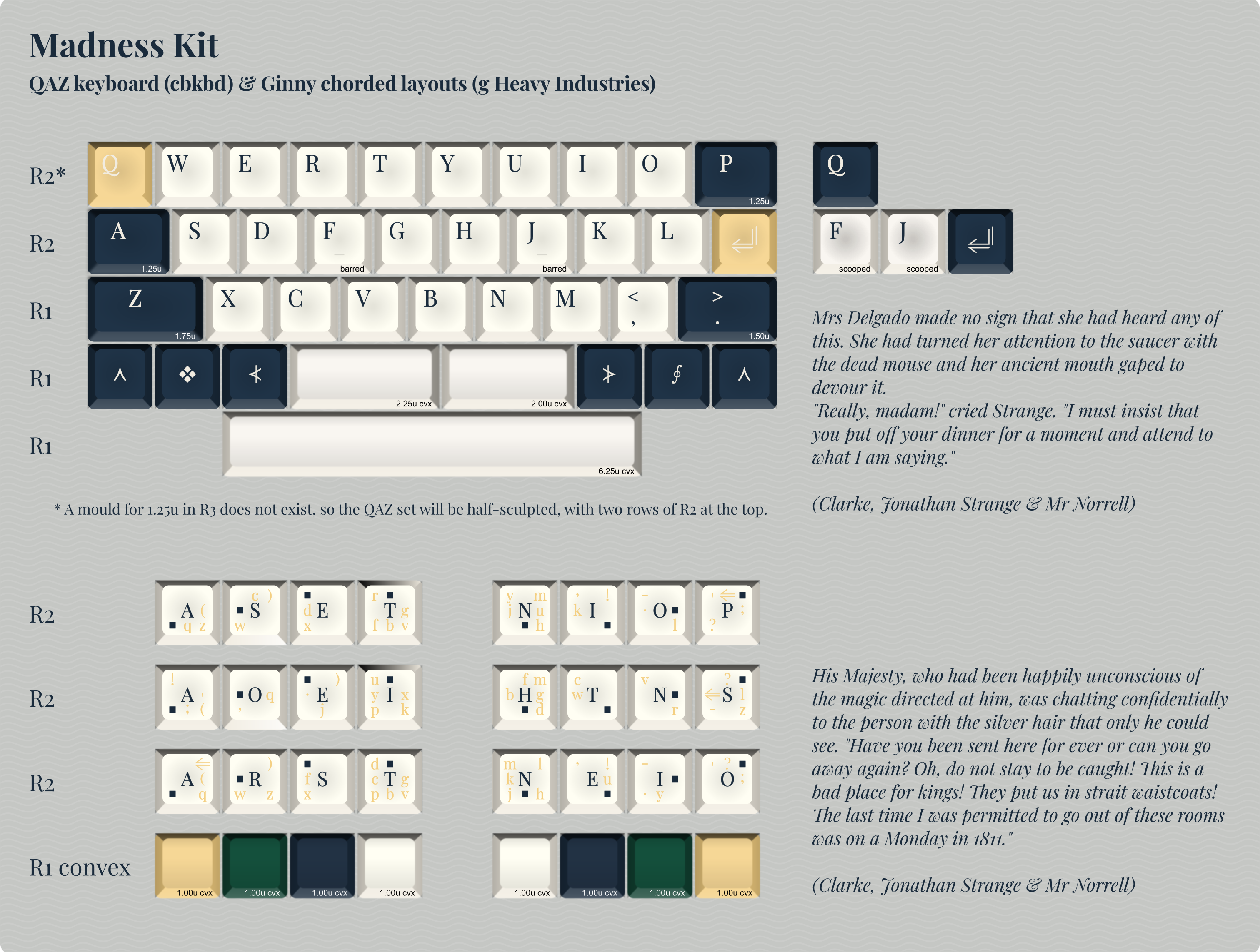

QAZ or Ginny Madness Kit

Back to Index

Alpha Kits

There are 21 different base Alpha kits.

  • Alphas - Default US English - Jefferson
  • Alphas - Belgian & Apple French - Marie Louise
  • Alphas - BÉPO - Bépoleon Nonaparte

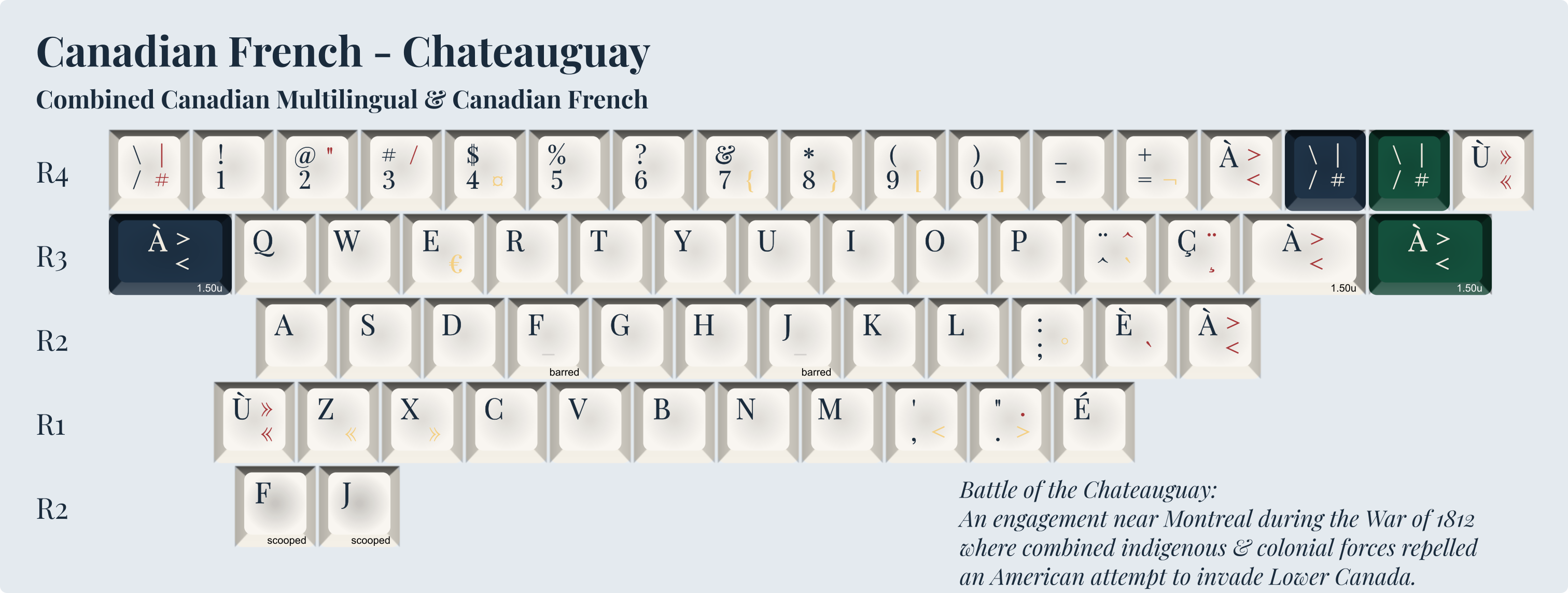

  • Alphas - Canadian French - Chateauguay

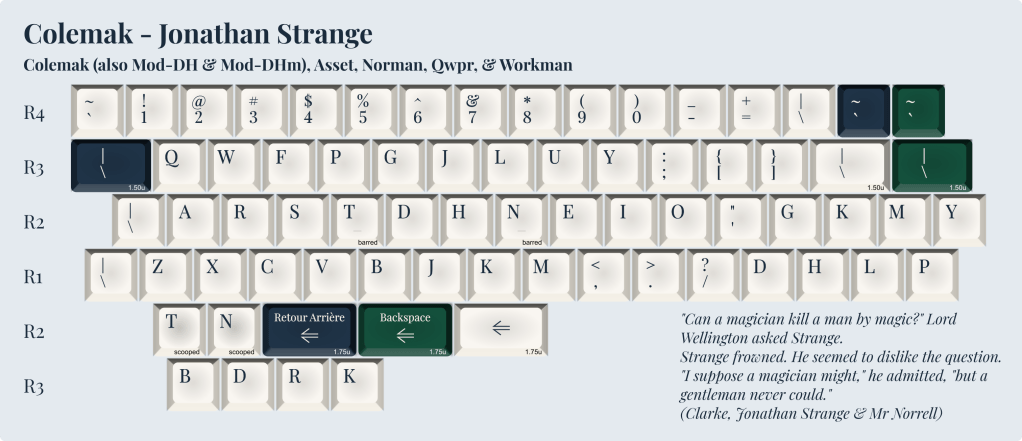

  • Alphas - Colemak - Jonathan Strange
  • Alphas - Hungarian & South Slavic - Doppelkaiser

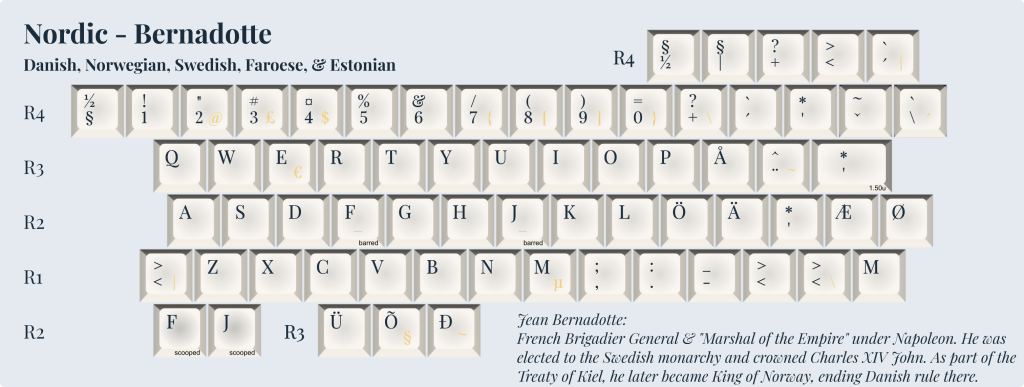

  • Alphas - Nordic - Bernadotte
  • Alphas - Polish & Lithuanian - Uhlan
  • Alphas - UK English & Irish - Wellington
  • Alphas - US Int'l & Netherlands - Waterloo

Table of Alpha Kits

The following is a list of all 21 Alpha kits and the layouts they support. Kits that provide the standard US QWERTY characters either in legends or sublegends are noted in red in the rightmost column.

All alpha kits support ISO, ANSI, and HHKB configurations.

Alpha KitLanguages / Locales

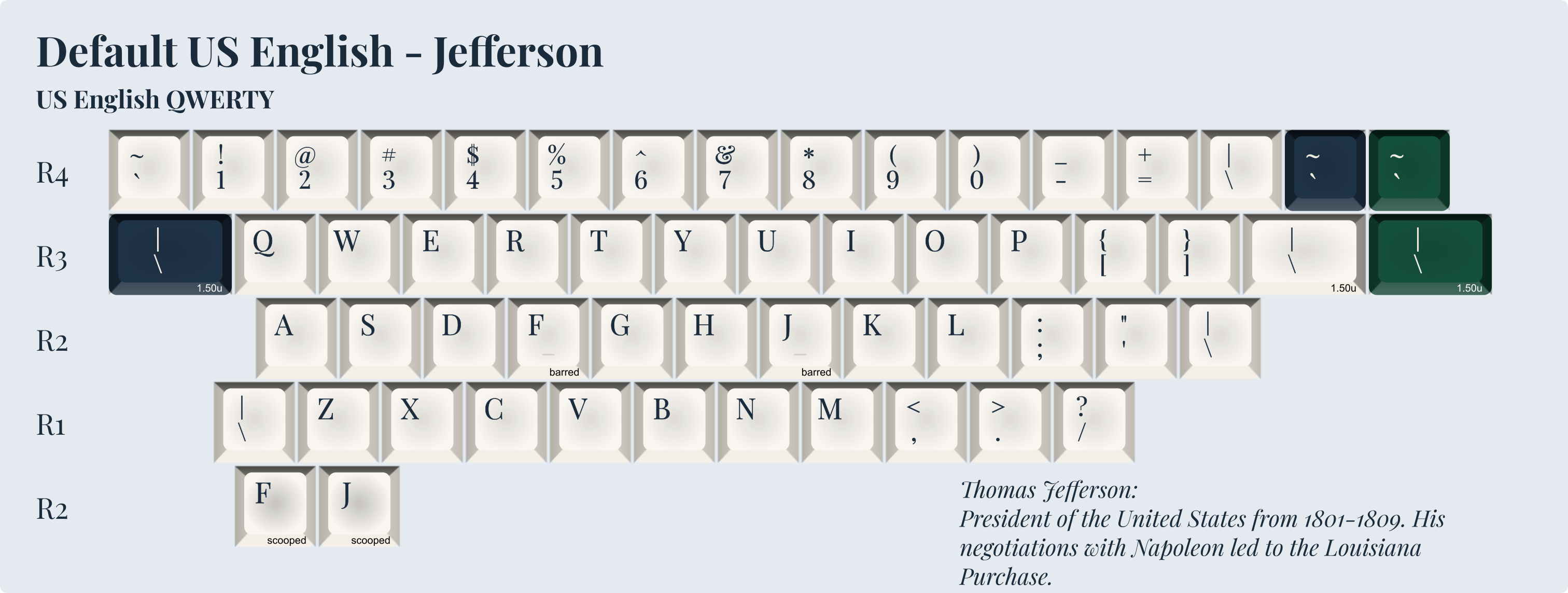

Default US English – JeffersonUS English
Belgian & Apple French – Marie LouiseBelgian French & French for MacOS / iOS
BÉPO – Bépoleon NonaparteFrench BÉPO
Canadian French – ChateauguayCombined Canadian Multilingual & Canadian French
Cherokee – SequoyahCherokee Nation layout with US sublegends
Colemak – Jonathan StrangeColemak, Mod-DH, Mod-DHm, Asset, Norman, Qwpr, & Workman

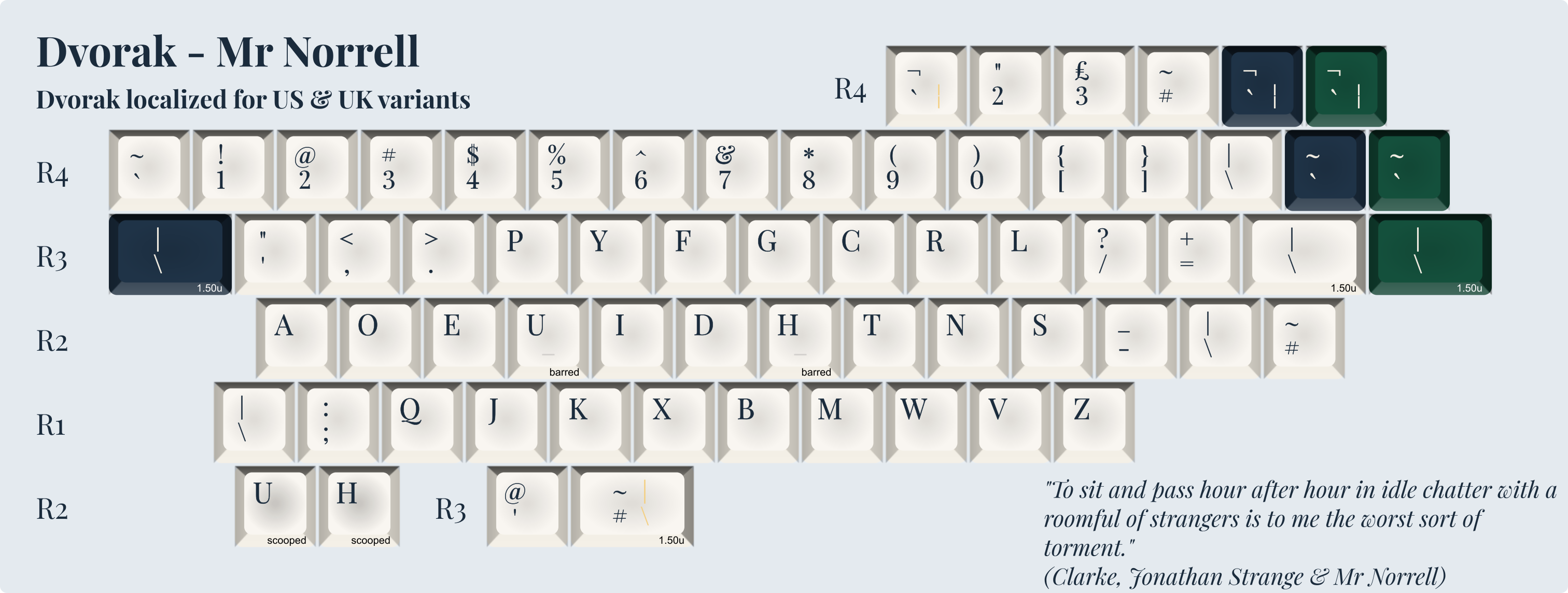

Dvorak – Mr NorrellUS & UK Dvorak

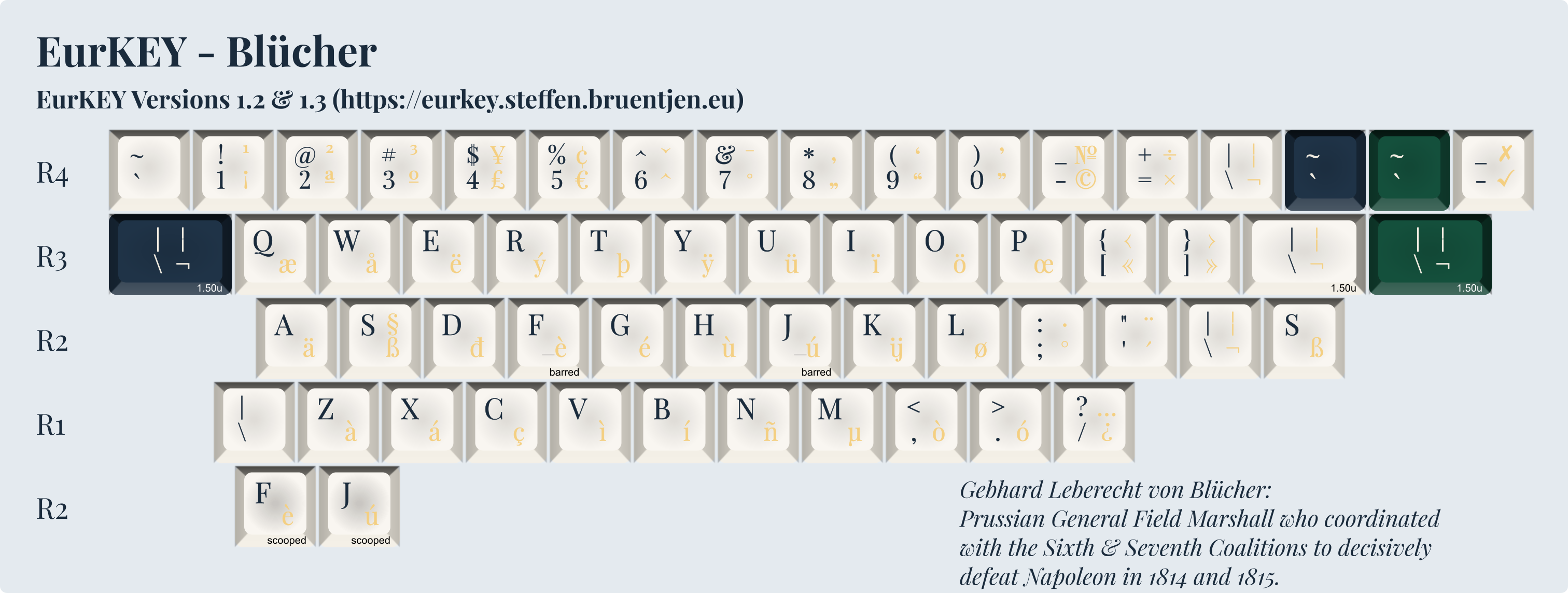

EurKEY – BlücherEurKEY versions 1.2 & 1.3 (US primary legends)

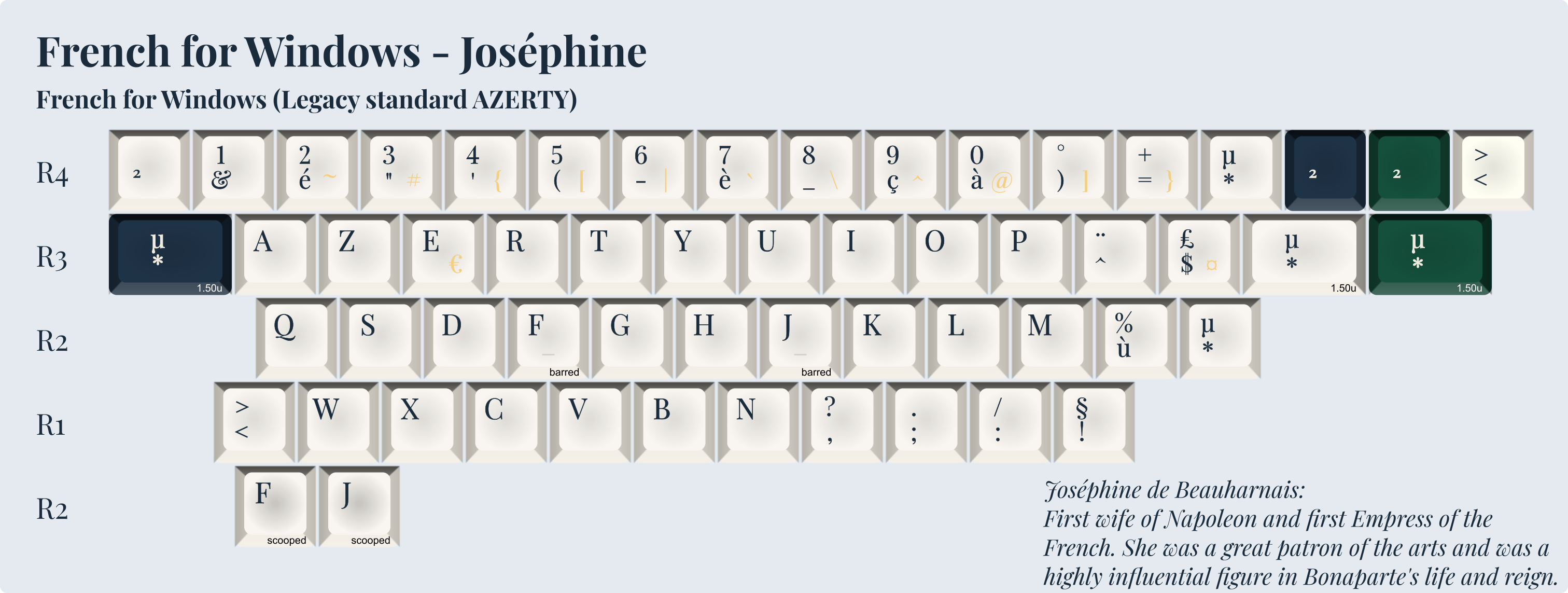

French for Windows – JoséphineFrench for Windows (Legacy standard AZERTY)

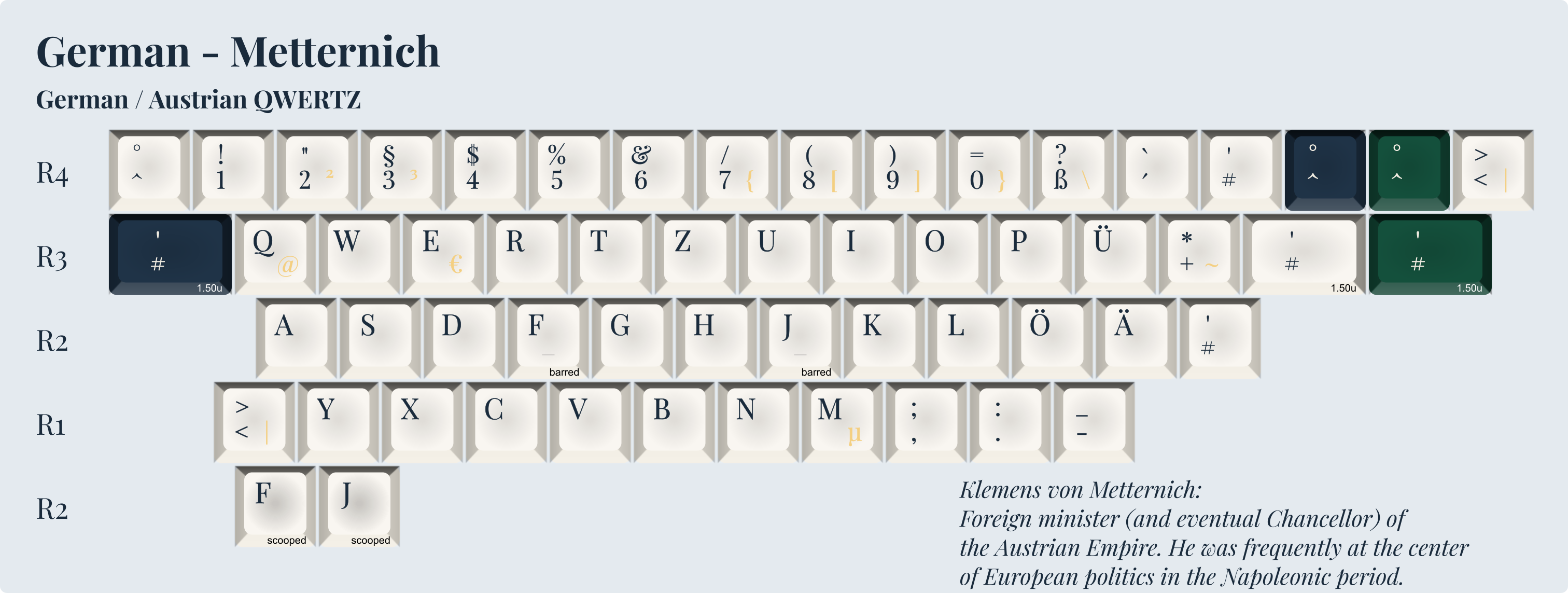

German – MetternichGerman / Austrian QWERTZ

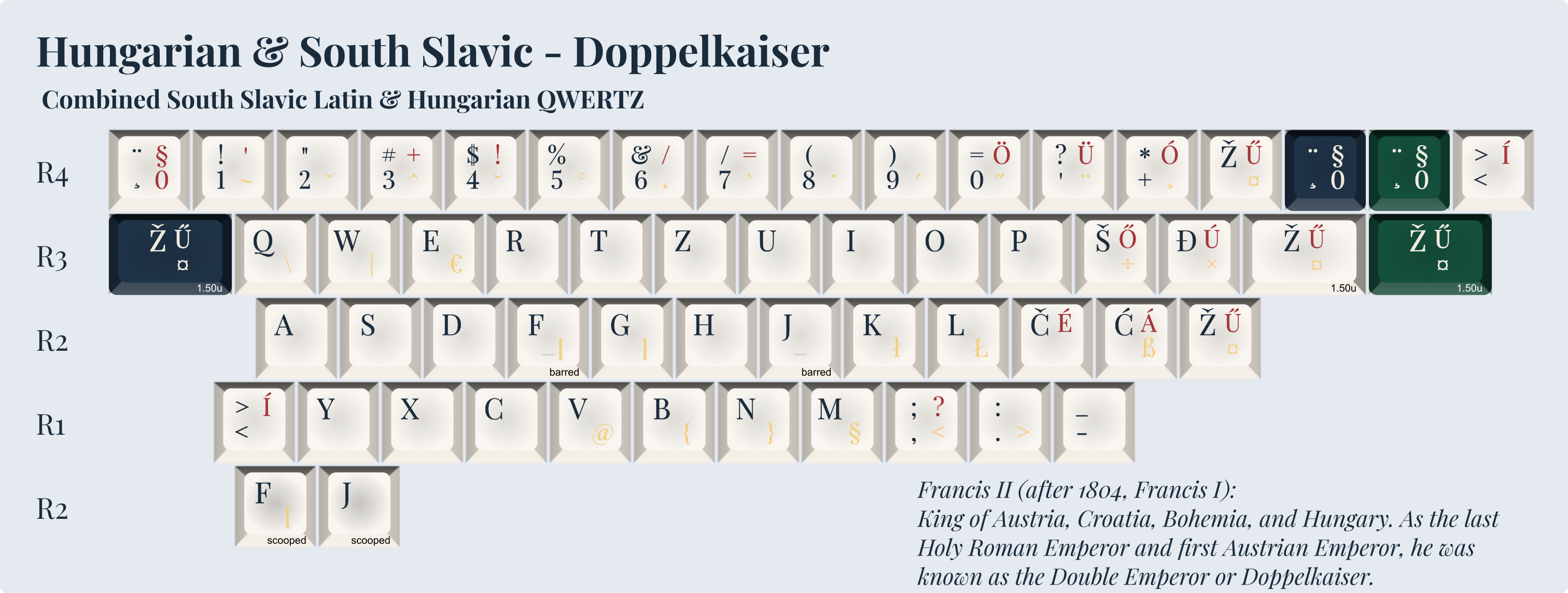

Hungarian & South Slavic – DoppelkaiserCombined South Slavic Latin & Hungarian QWERTZ

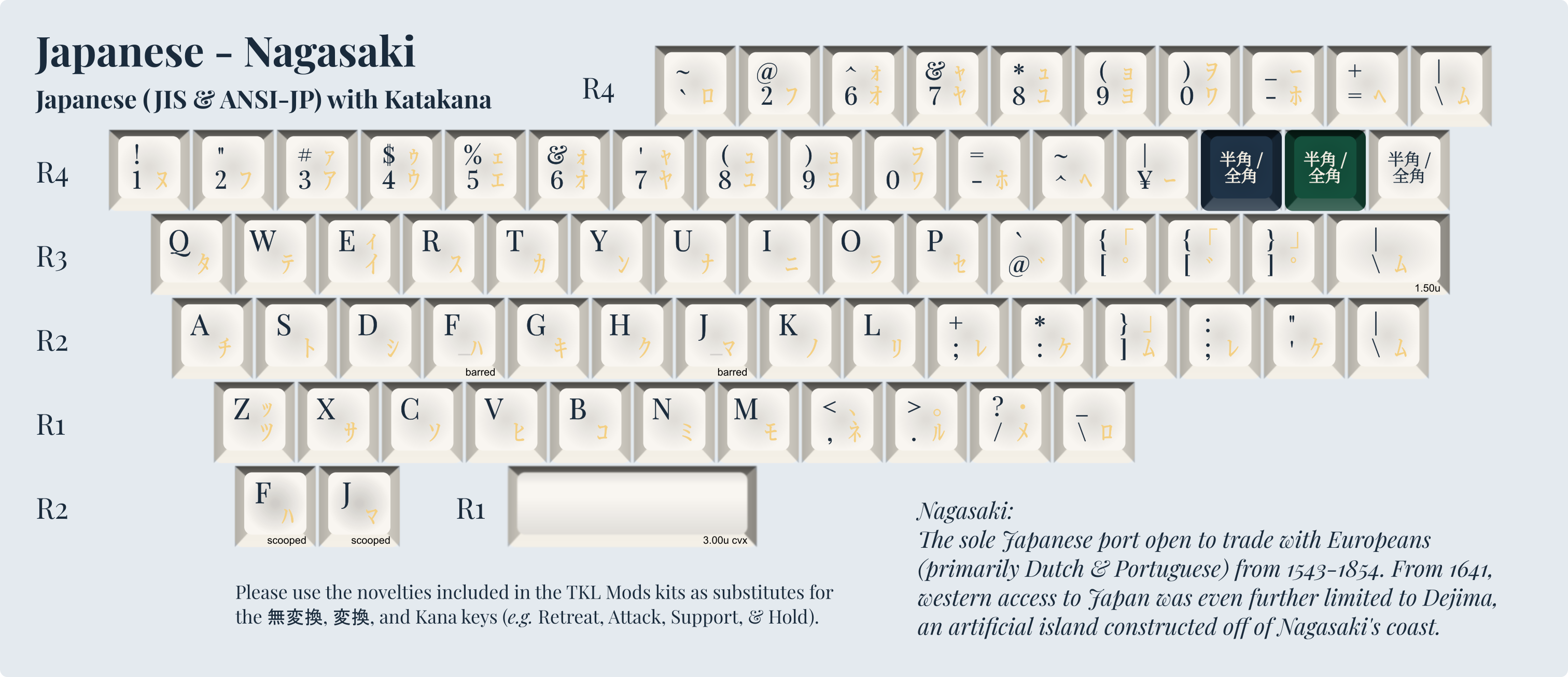

Japanese – NagasakiJapanese (JIS & ANSI-JP) with Katakana
(US primary legends for ANSI-JP layout)
Nordic – BernadotteDanish, Norwegian, Swedish, Faroese, & Estonian
Polish & Lithuanian – UhlanCombined US English, Polish Programmers’ layout, & Lithuanian QWERTY

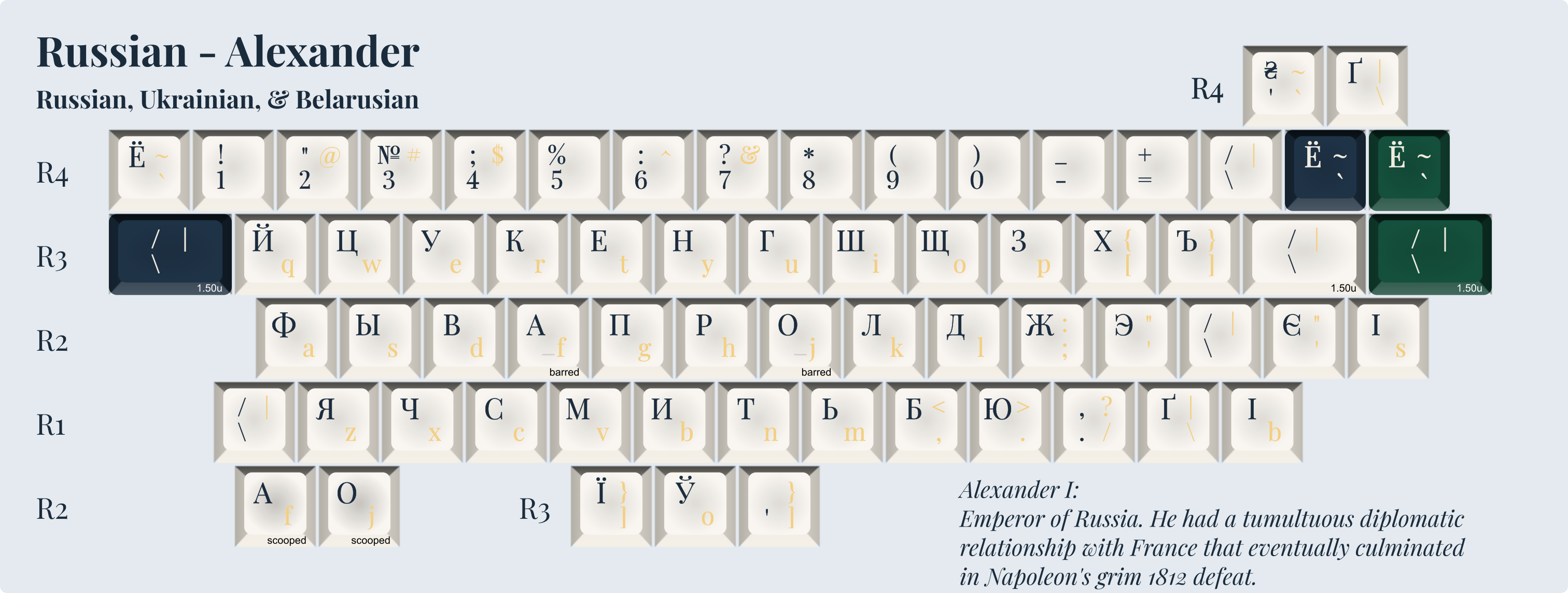

Russian – AlexanderRussian, Ukrainian, & Belarusian with US sublegends

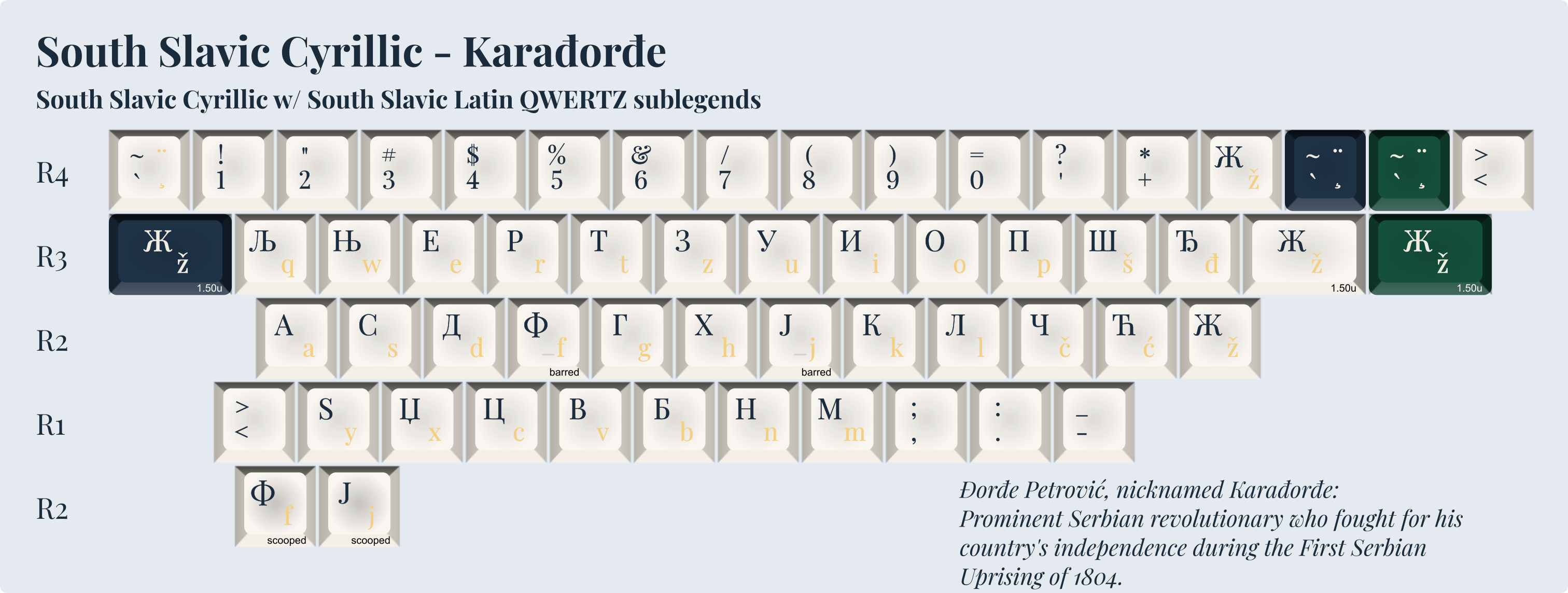

South Slavic Cyrillic – KarađorđeSouth Slavic Cyrillic with South Slavic Latin QWERTZ sublegends

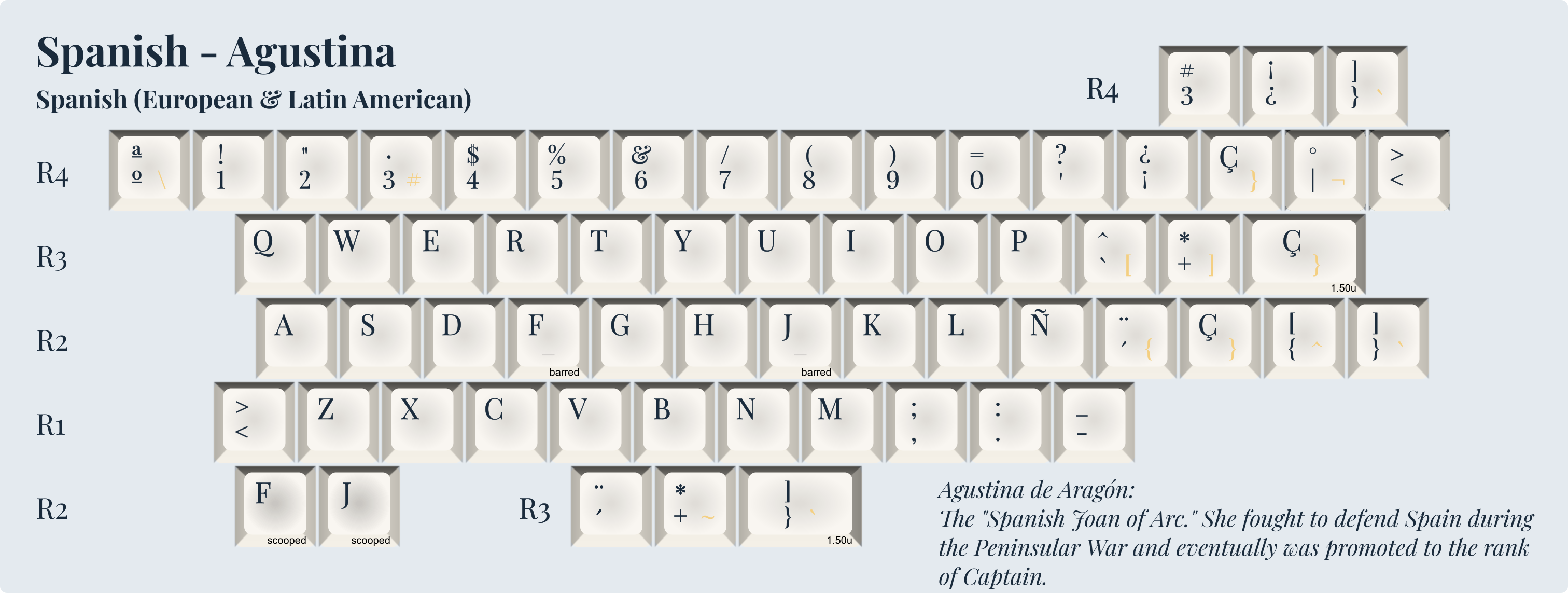

Spanish – AgustinaSpanish (European & Latin American)

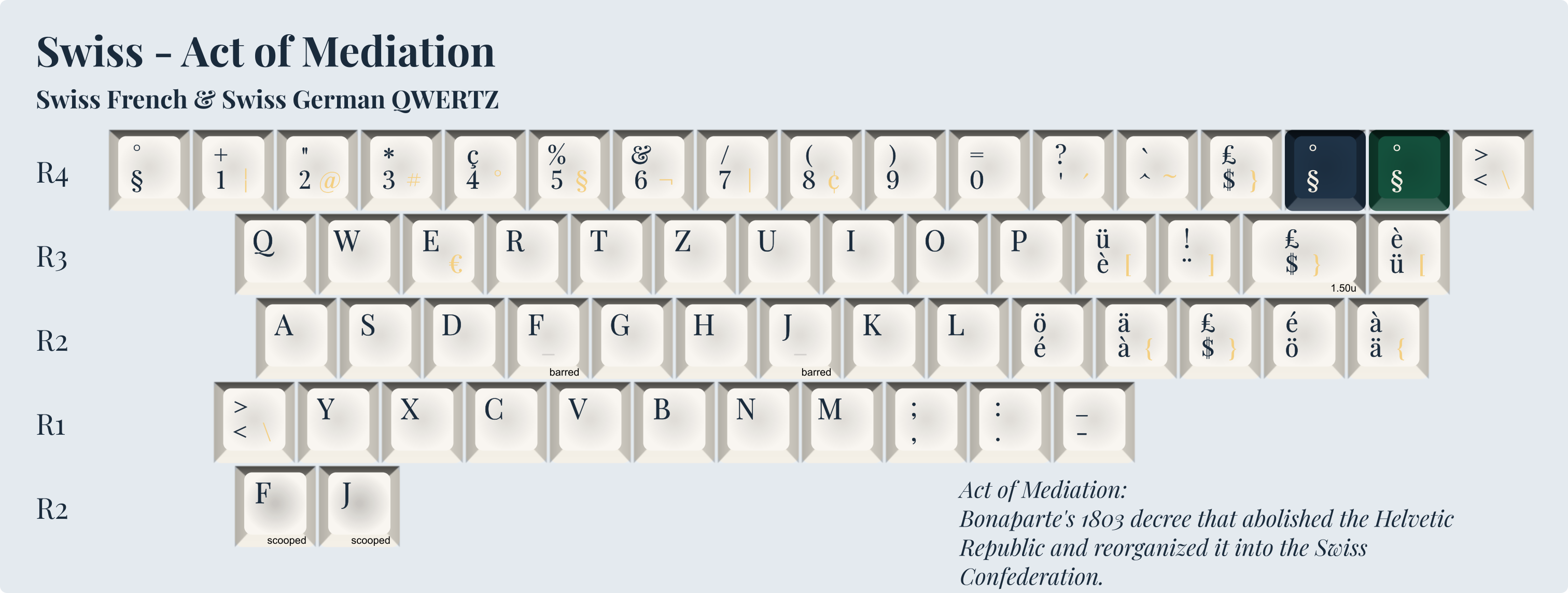

Swiss – Act of MediationSwiss French & Swiss German QWERTZ

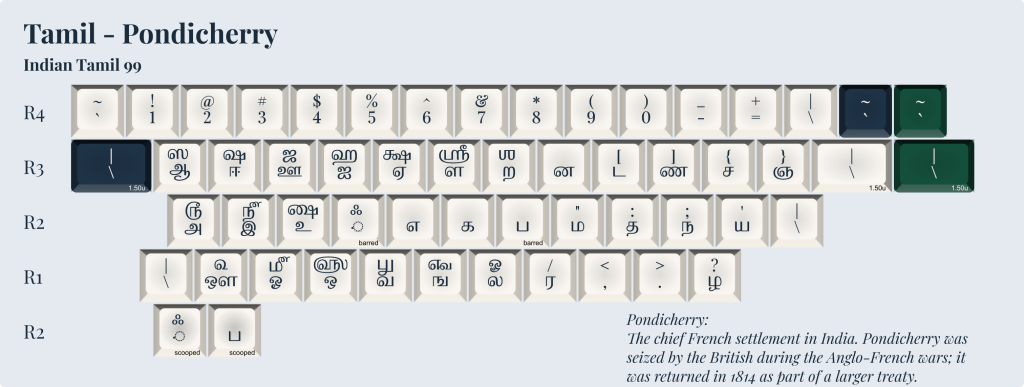

Tamil – PondicherryIndian Tamil 99

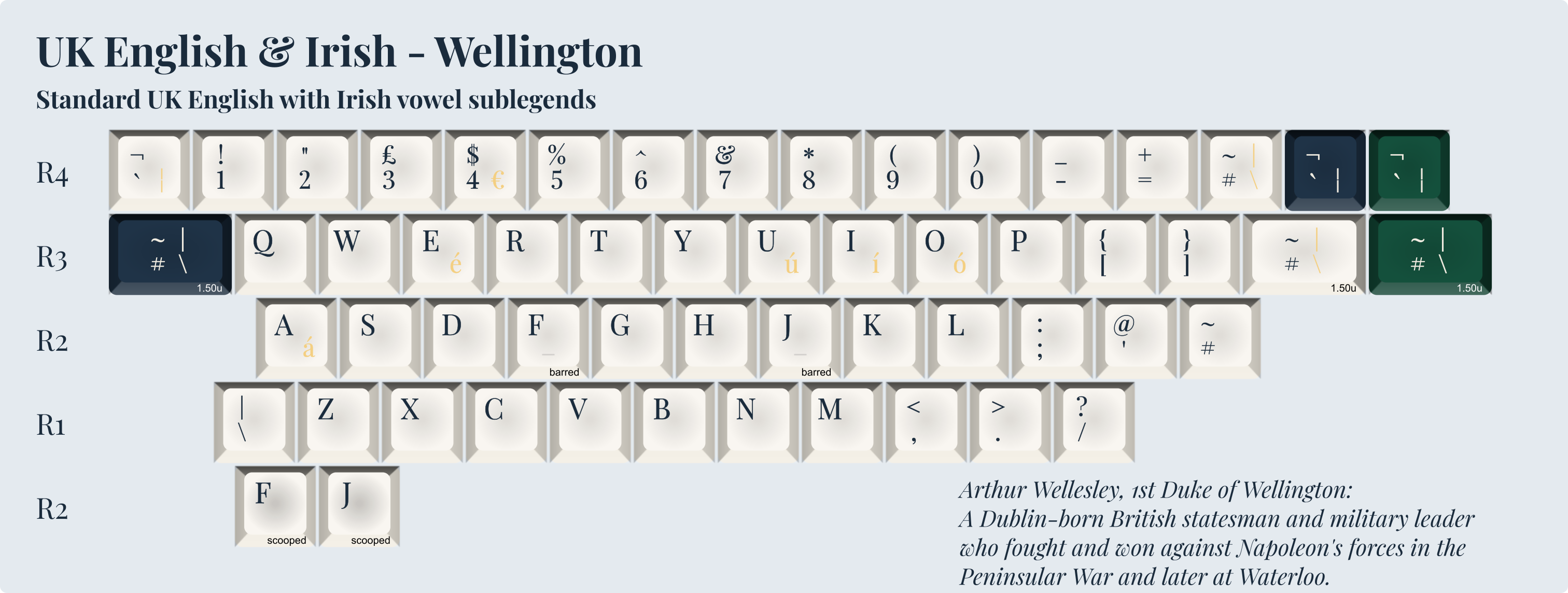

UK English & Irish – WellingtonStandard UK English QWERTY with Irish vowel sublegends

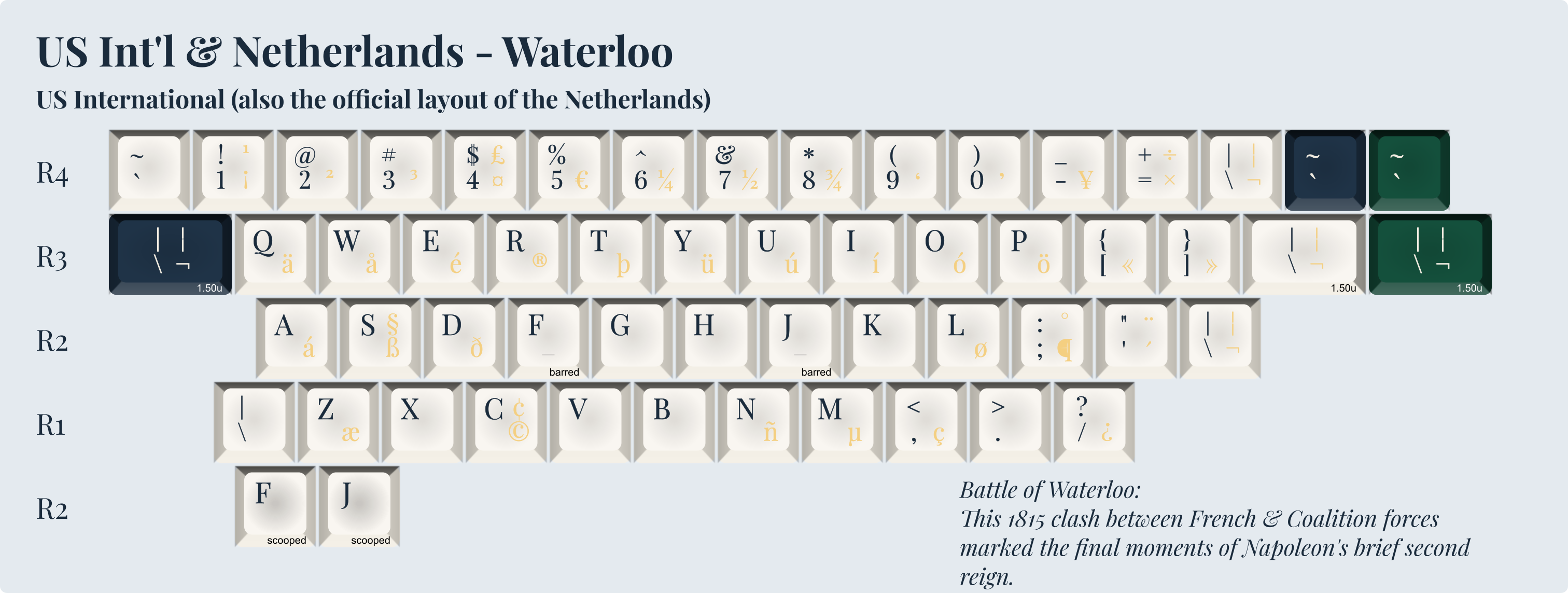

US Int’l & Netherlands – WaterlooUS International (also the official layout of the Netherlands)

Back to Index

Core Mod Kits

There are five core modifier kits for KAT Napoleonic, each provided with two-or-three colored “uniform” options: French Indigo, Russian Green, or Austrian White. All core modifier kits (except for British Navy) come with a custom set of military-themed novelty keys: Retreat, Attack, Support, and Hold.

Core Mod Kit TypeIndigo?Green?White?
TKL ModsIndigoGreenWhite
Alt TKL ModsBritish Navy
NumpadIndigo (or Navy)GreenWhite
Ortho ModsIndigoGreenWhite
Forties ModsIndigoGreen
Ergo ModsIndigoGreen

Some boards require one of the additional Miscellaneous Kits (e.g. Spacebars) for complete coverage. See the shopping list for examples.

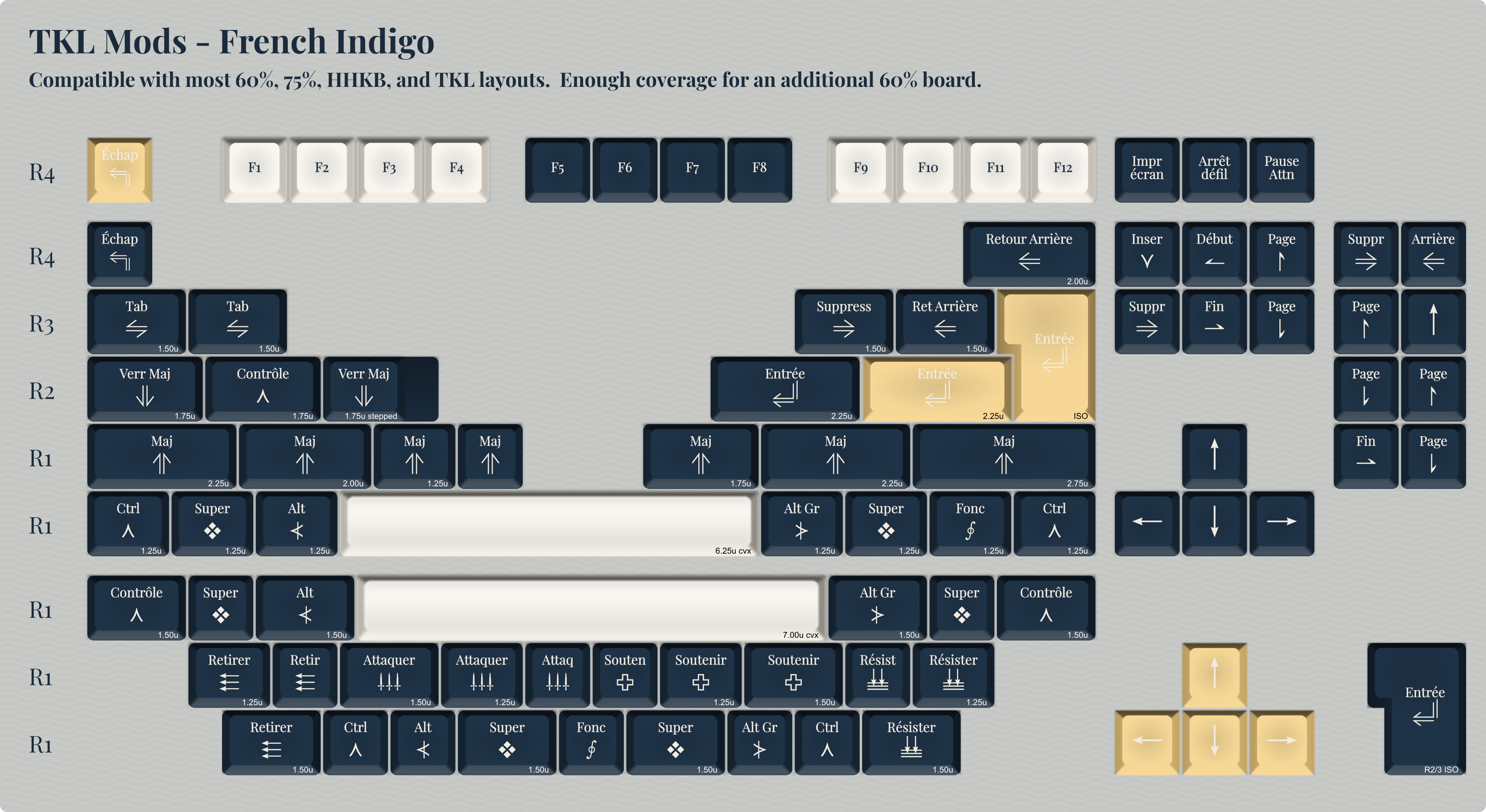

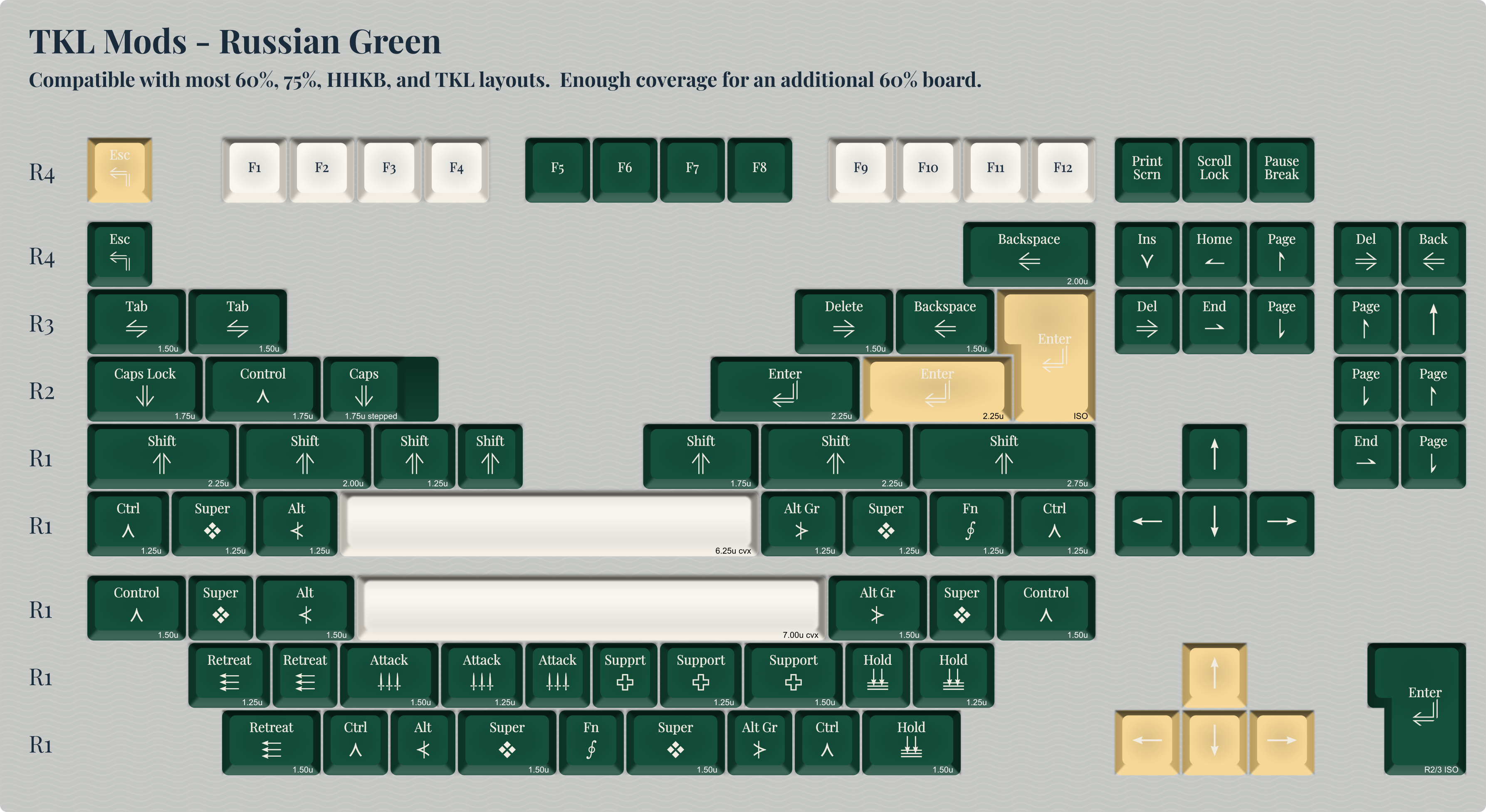

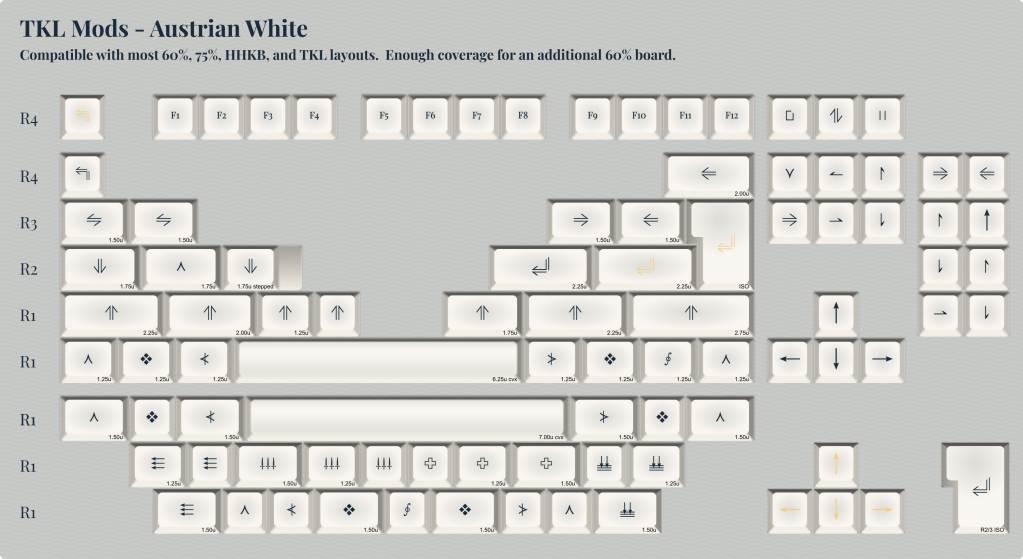

TKL Mods

A majority of customers will require a TKL Mods kit, available in all three uniforms. A TKL Mods kit covers the most popular 60%, 65%, 75%, HHKB, and Tenkeyless layouts. That wide compatibility also provides enough coverage for an additional 60% board (presumably paired with a second alpha kit).

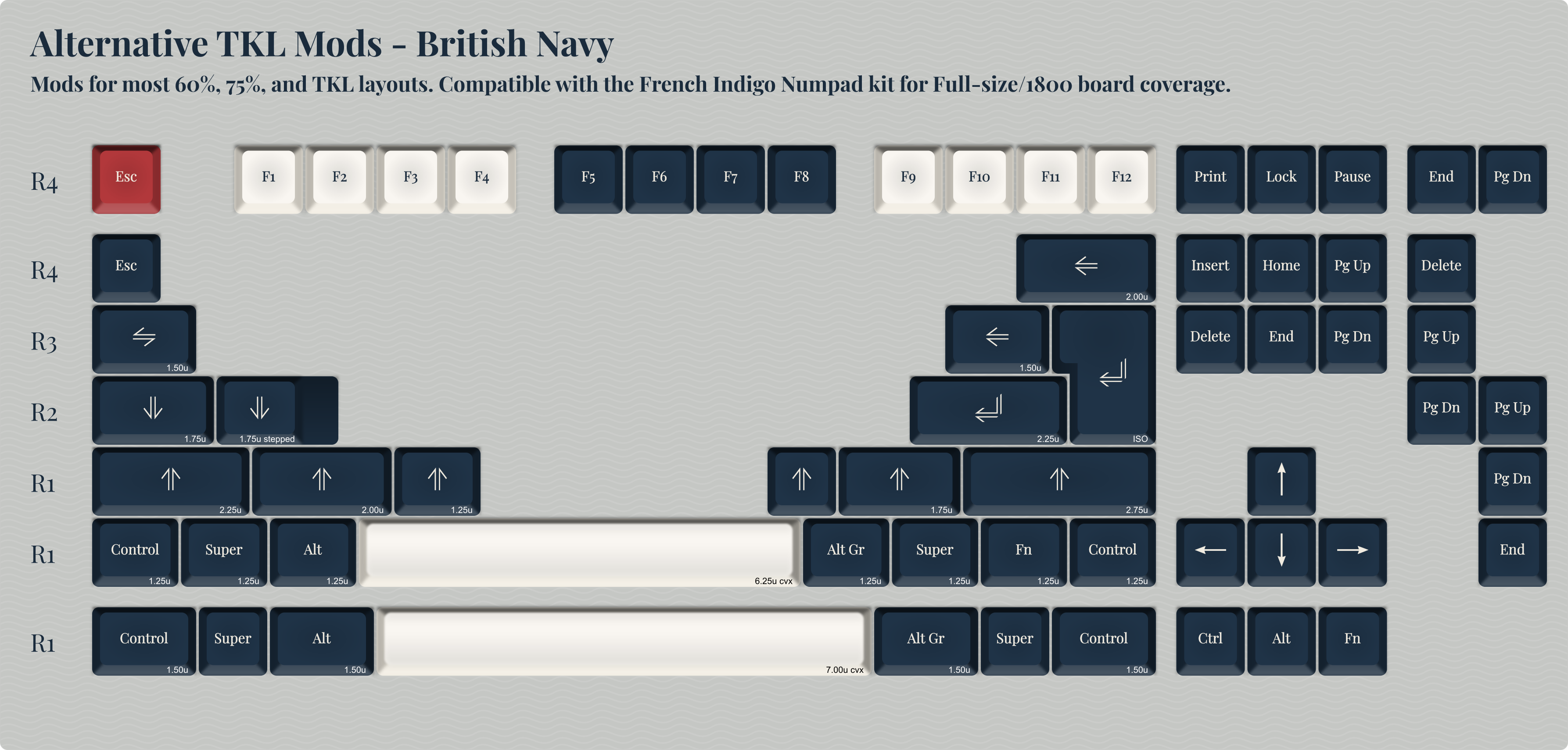

Alt TKL Mods – British Navy

The British Navy kit provides an alternative TKL Mods kit using the same primary mod color as French Indigo, but with a more mainstream approach to modifier legends. Its primary mod colors are the same as French Indigo, and it is compatible with the French Indigo Numpad kit for full-size boards.

The British Navy kit is intentionally slimmer than the other TKL mods kits on offer and does not provide the same range of compatibility; it is also priced lower than other TKL mod kits.

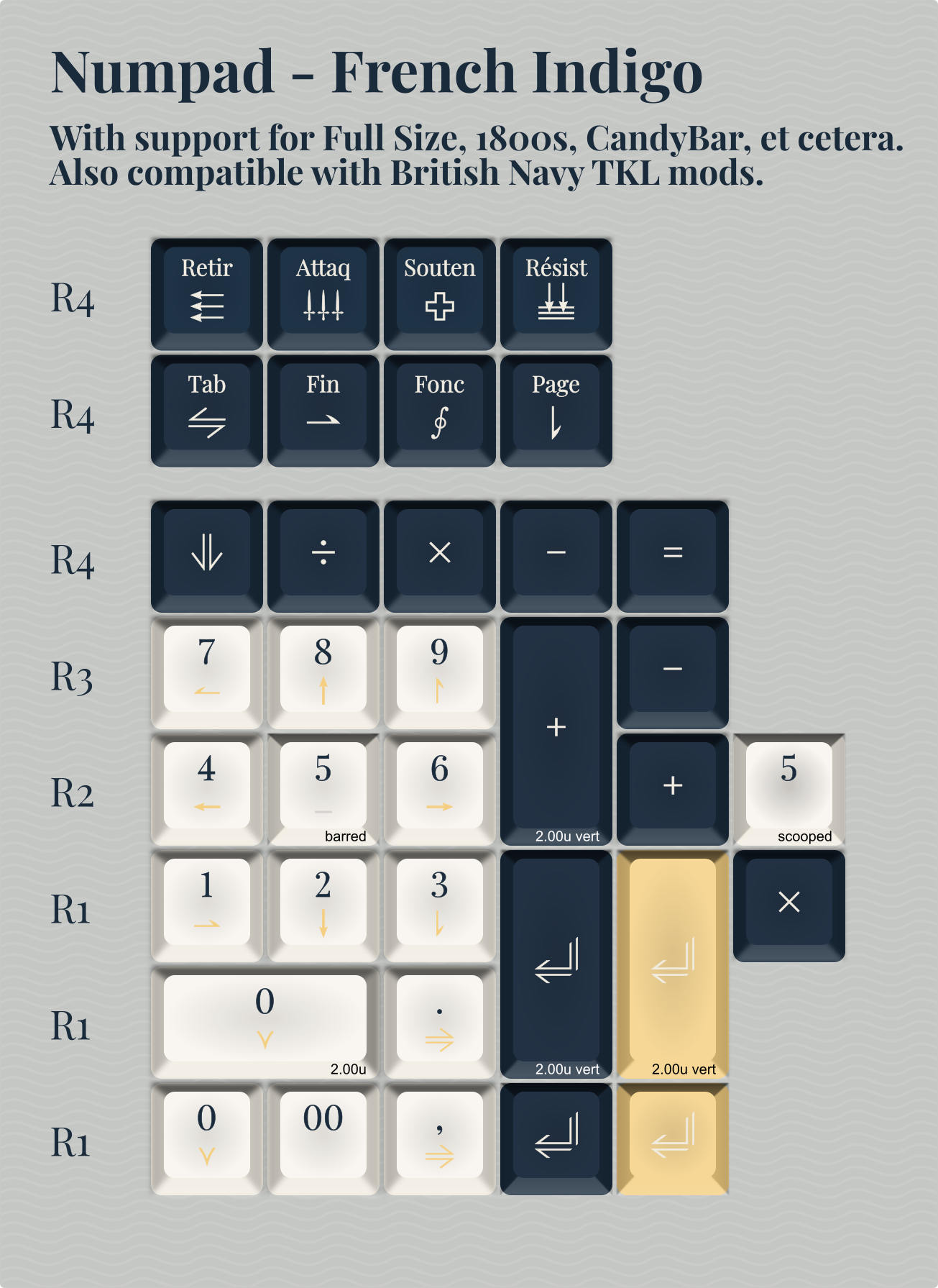

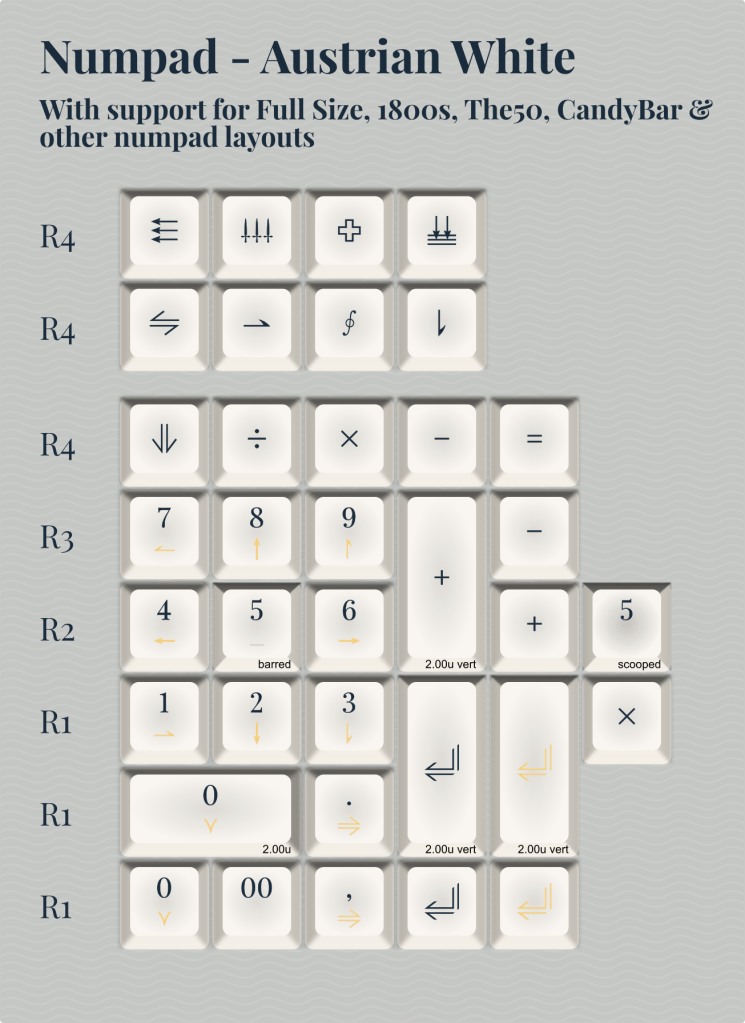

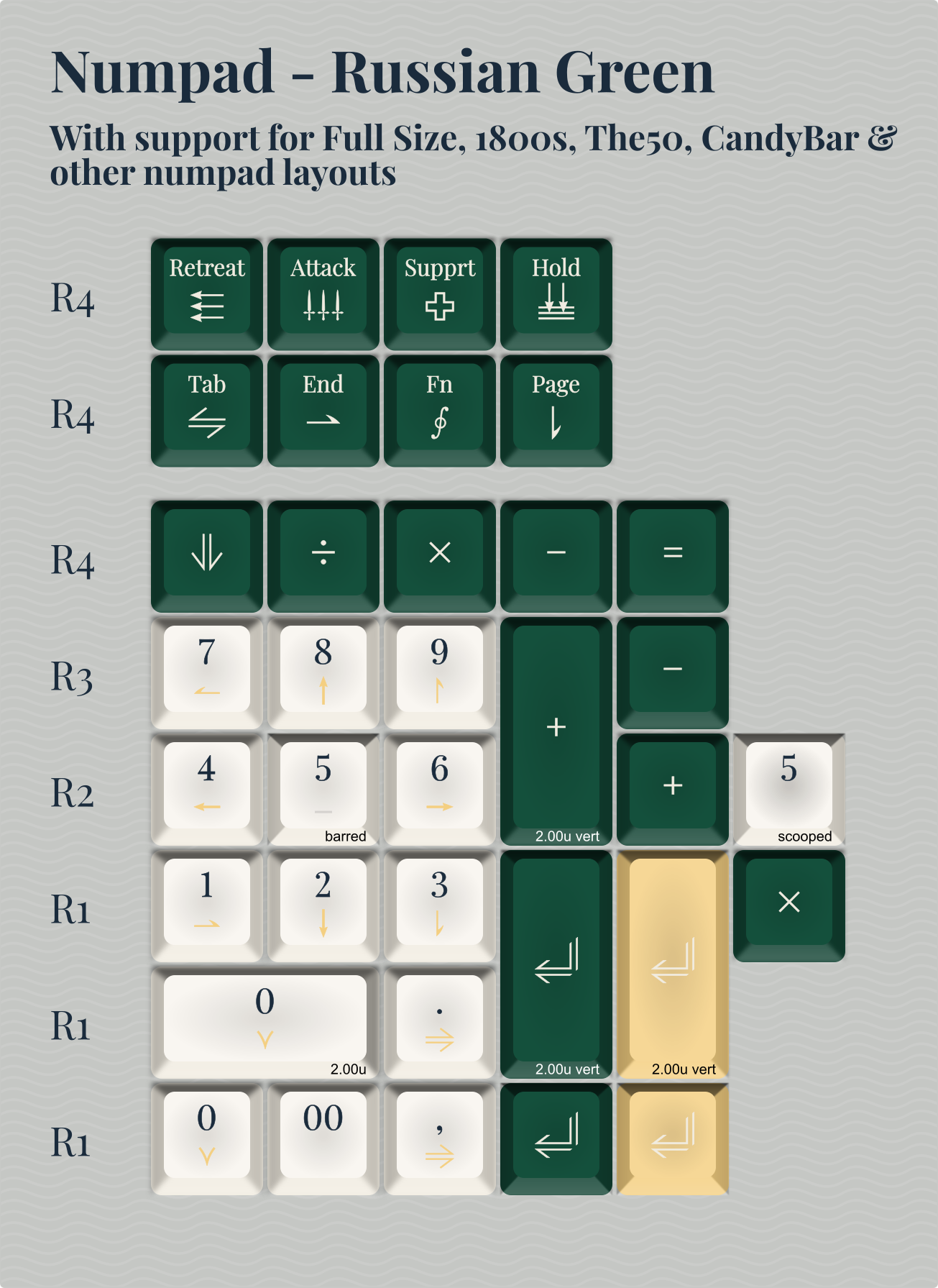

Customers using full-size (104/105-key) boards will require a Numpad kit in addition to TKL mods. The Numpad kit additionally supports 50% or CandyBar layouts when paired with a Forties kit.

Numpad kits are available for all three uniforms. The French Indigo Numpad kit is also compatible with the British Navy Alt TKL Mods kit.

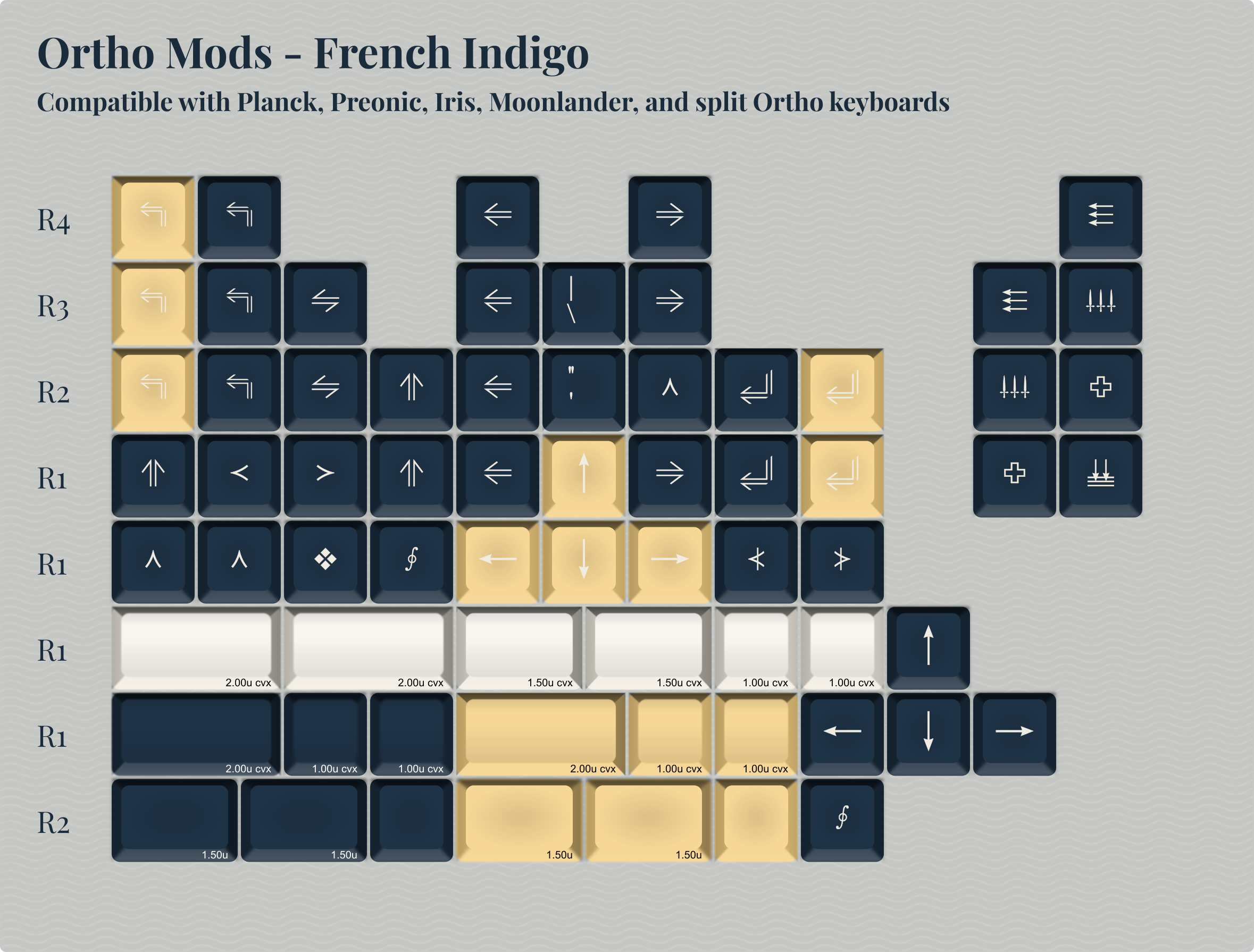

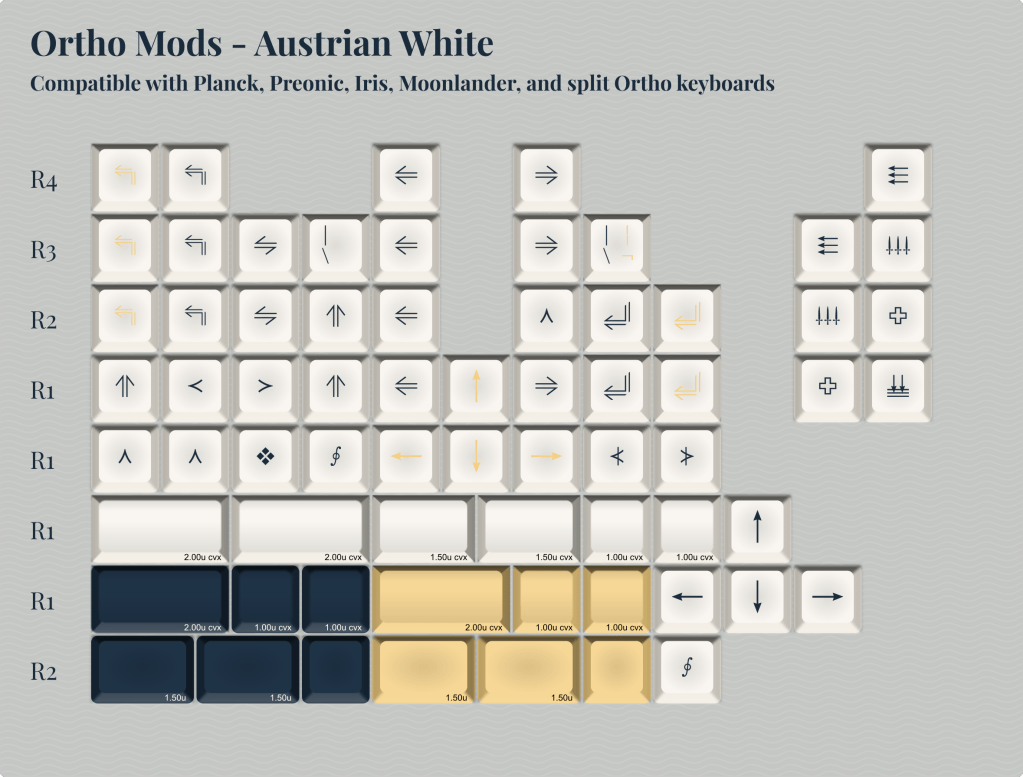

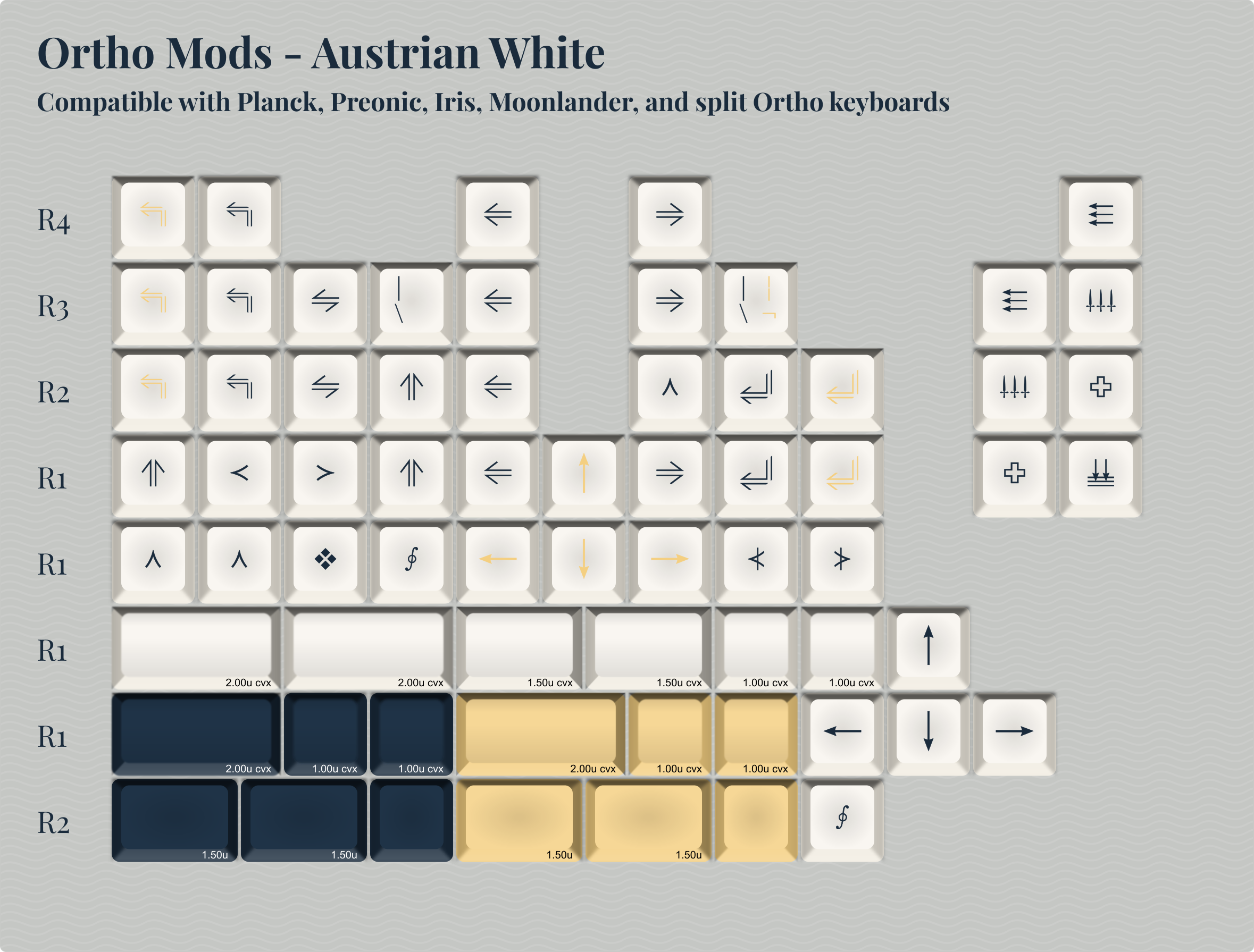

Ortho Mods

Ortholinear Boards (e.g. Planck or Preonic) and columnar-staggered boards with 1u modifiers (e.g. Moonlander or Iris) will require an Ortho Mods kit, available in all three uniforms. French Indigo Ortho Mods are icon-only.

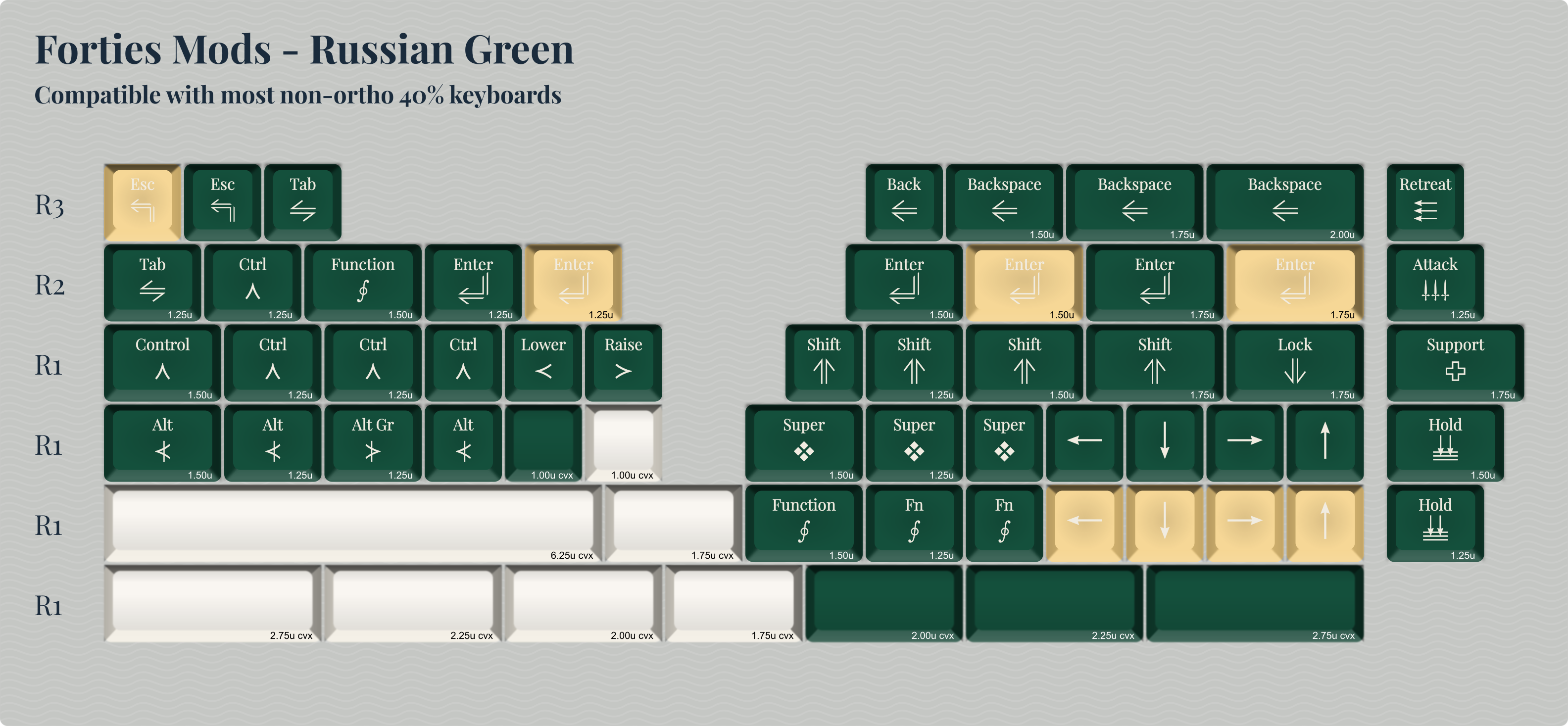

Forties Mods

Non-ortholinear 40% keyboards (e.g. Minivan) will require a Forties kit, available in French Indigo and Russian Green.

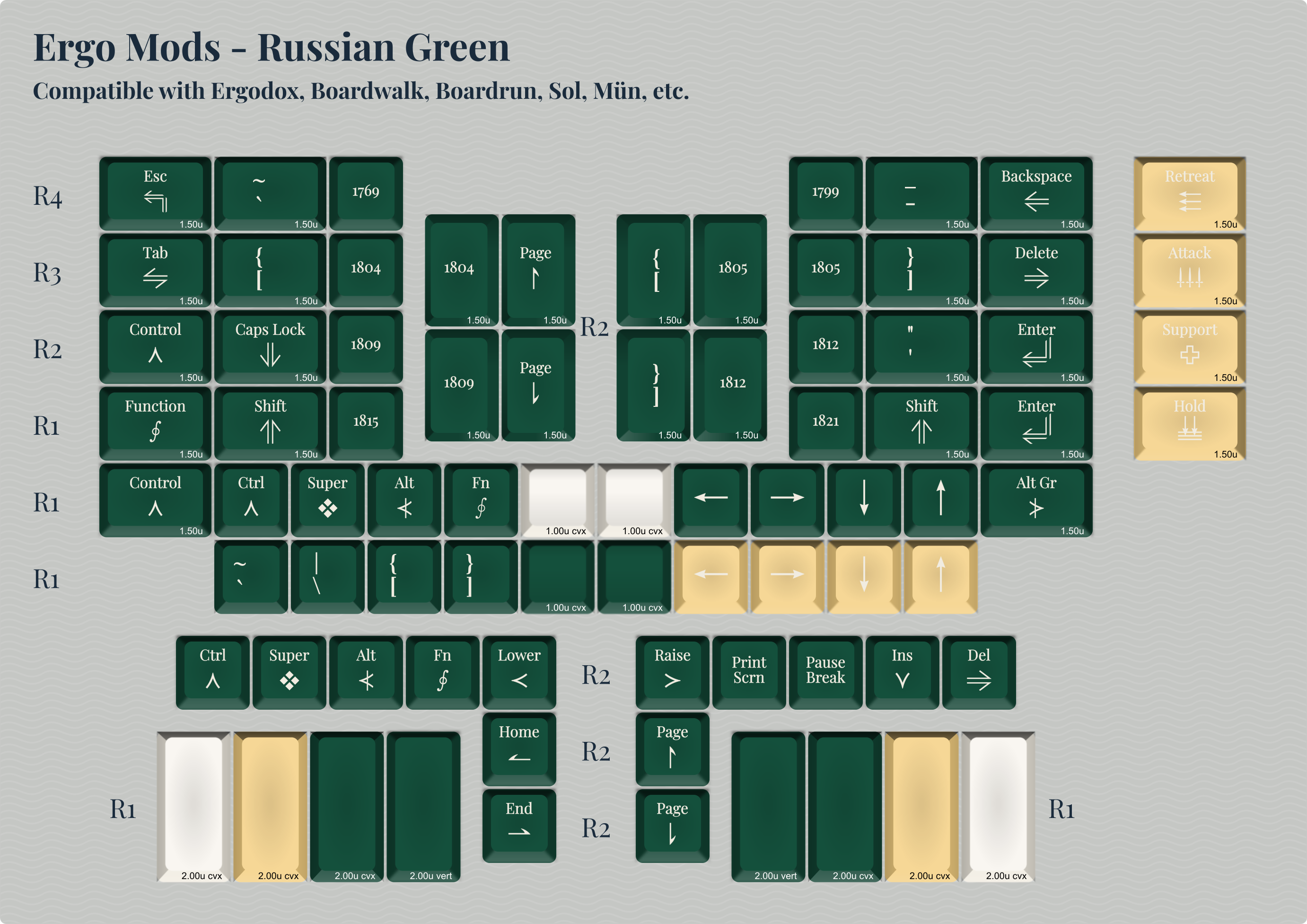

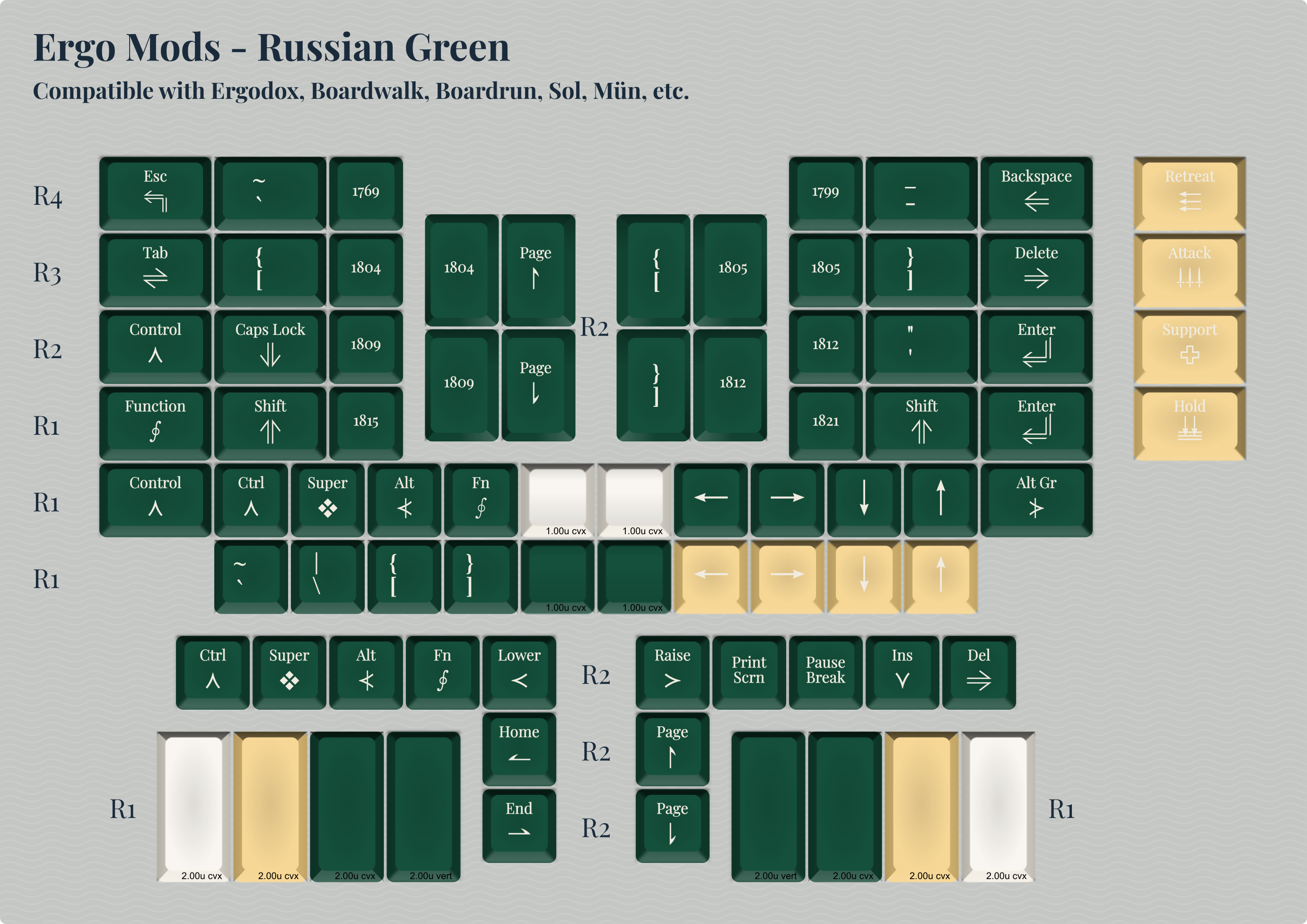

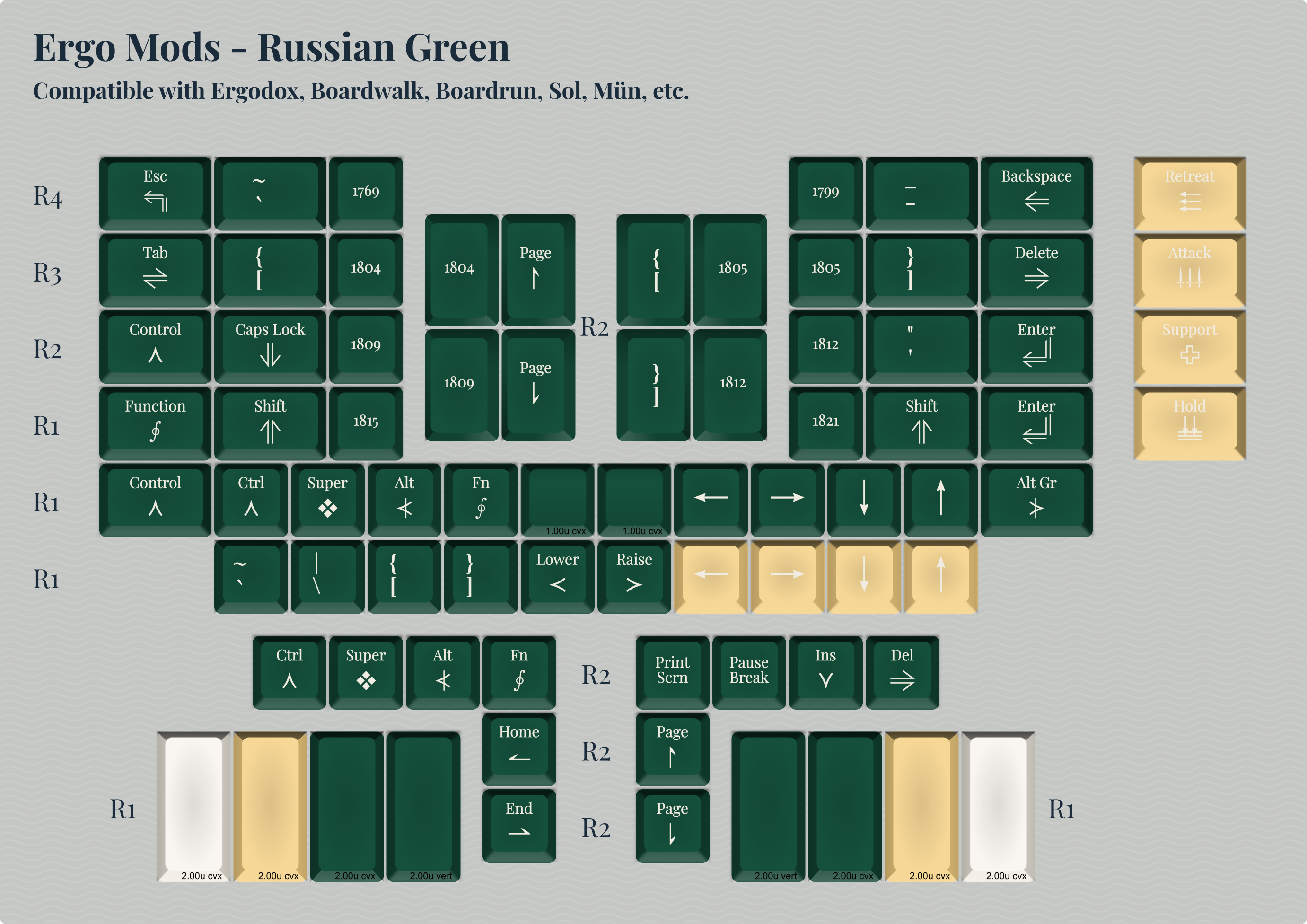

Ergo Mods

Ergodox, Boardwalk, Sol, and similar boards with 1.5u side modifiers will require an Ergo Mods kit, here provided with the most common legends by row (as per survey data) along with accent-colored novelties for a greater level of customization. Ergo Mods kits are available in French Indigo and Russian Green.

Mod Kits By Uniform

French Indigo Mods

The French Indigo uniform consists of dark blue mods with yellow-gold accents and white legends. Except for the Ortho kit (which is icon-only), these modifiers are labeled with both text and icons, and the text comes from standard French keyboard key names and abbreviations (where known).

British Navy Mods

Russian Green Mods

The Russian Green uniform consists of dark green mods with yellow-gold accents and white text. Modifiers are labeled with icons and standard English text and abbreviations.

Austrian White Mods

The Austrian White uniform consists of white mods marked with dark blue icons and no text. This uniform matches the colorway of the alpha keys and transforms KAT Napoleonic into a monocolor set. Accents are also white but use yellow-gold icons.

Back to Index

Miscellaneous Kits

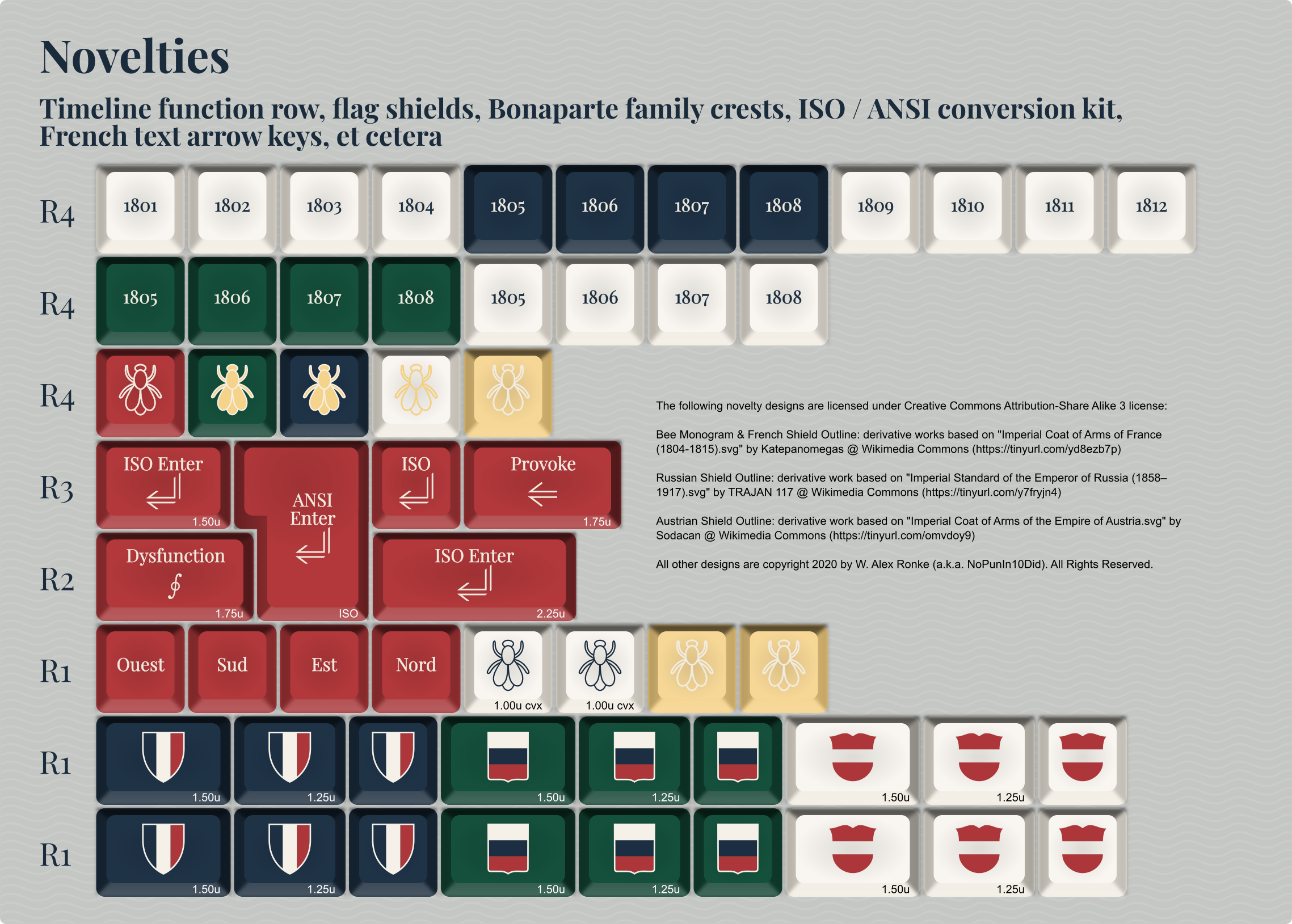

  • Convert your function row (F1-F12) into a timeline (1801-1812).
  • Decorate your board with a bee monogram (the Bonaparte family crest) or with an imperial flag shield.
  • Add a splash of red to your board.

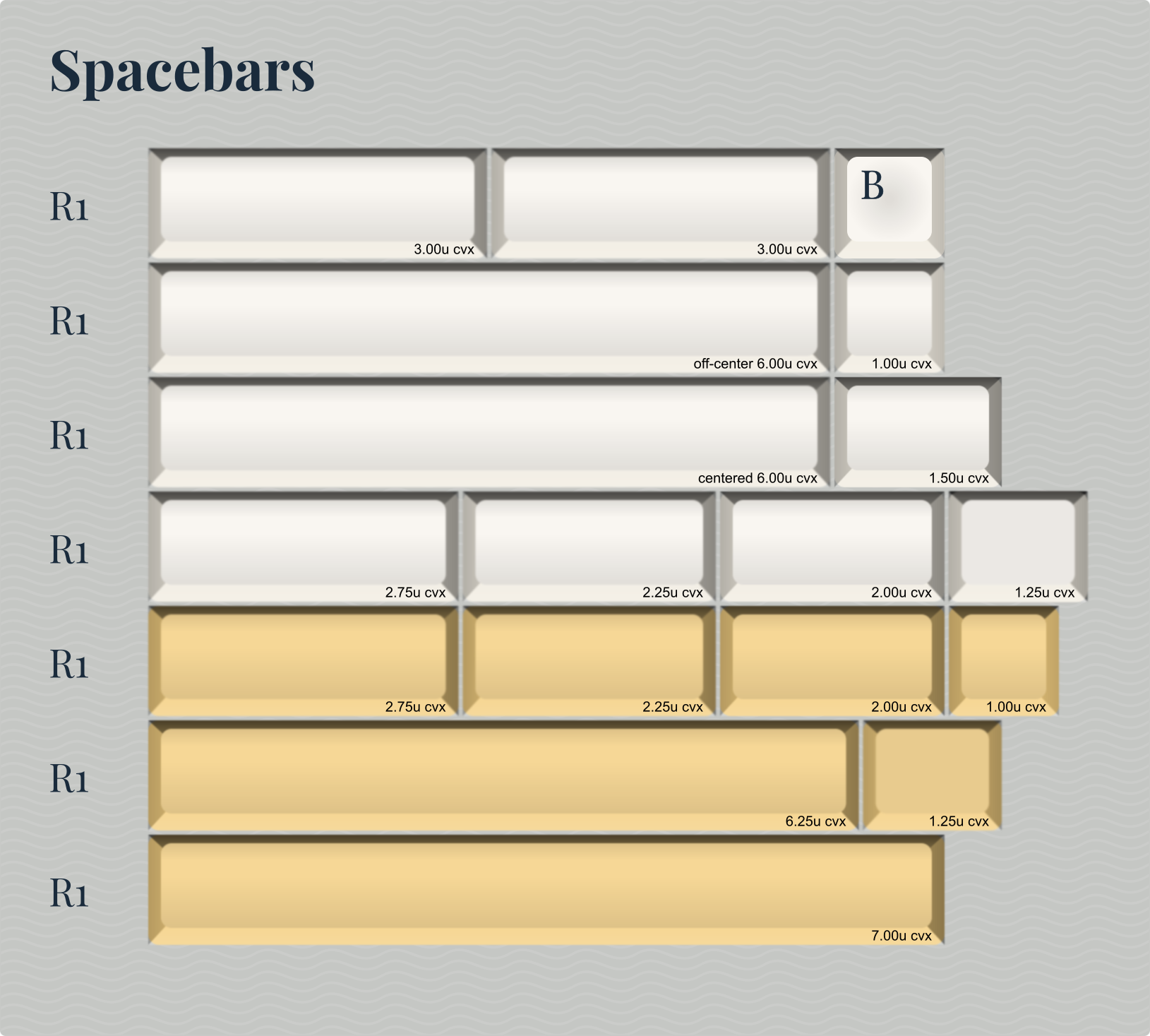

  • Accent-colored spacebars for standard boards.
  • Compatibility for boards that require a 6u spacebar.
  • Compatibility for Alice-like layouts.

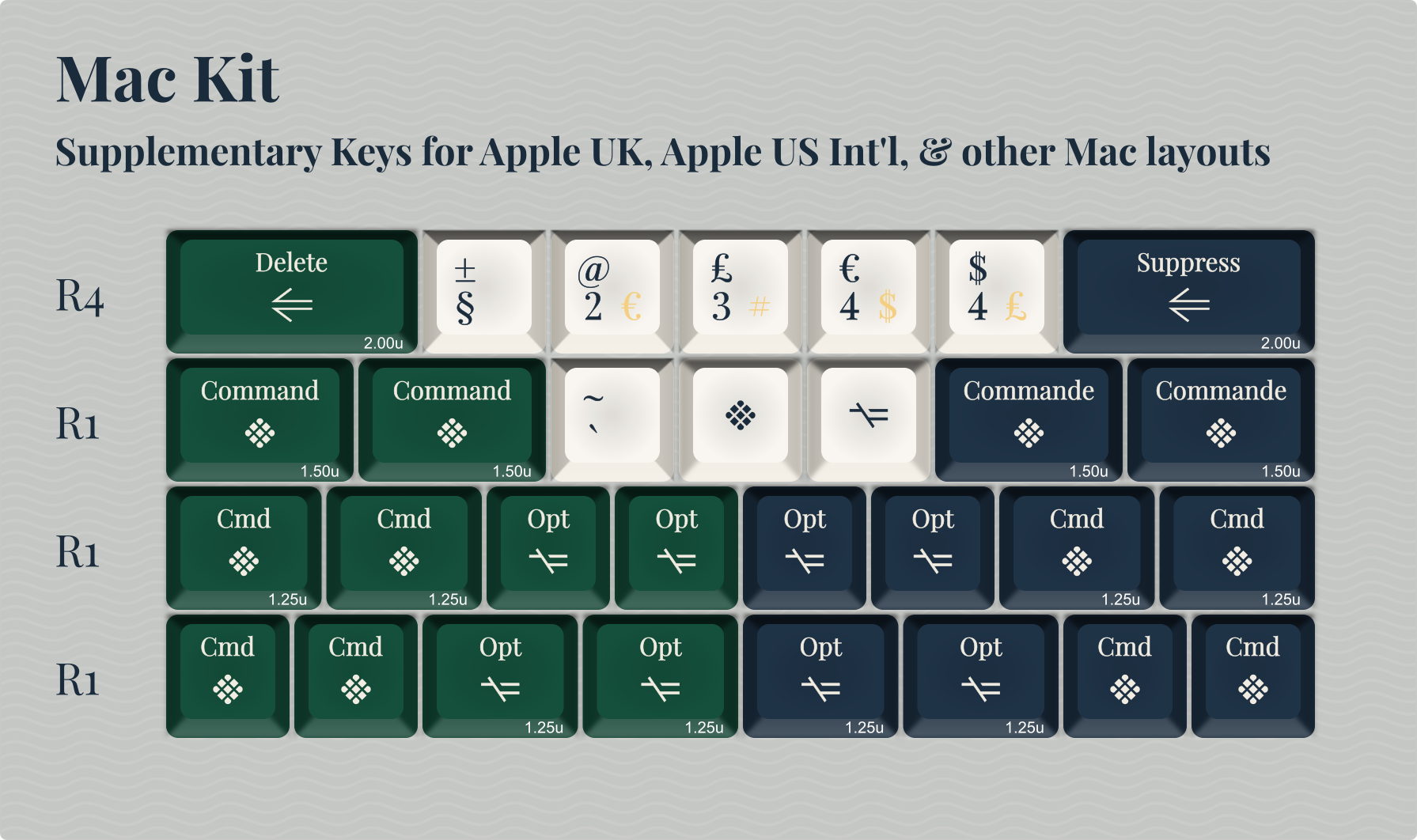

Mac Kit

  • Mac / Apple “Command” and “Option” keys are provided.
    • These include range of sizes for French Indigo and Russian Green.
    • Ortho-oriented modifiers in Austrian White are also included.
  • Some Apple alpha locales (like Apple UK) will require the Mac Kit as a supplement to base alphas.

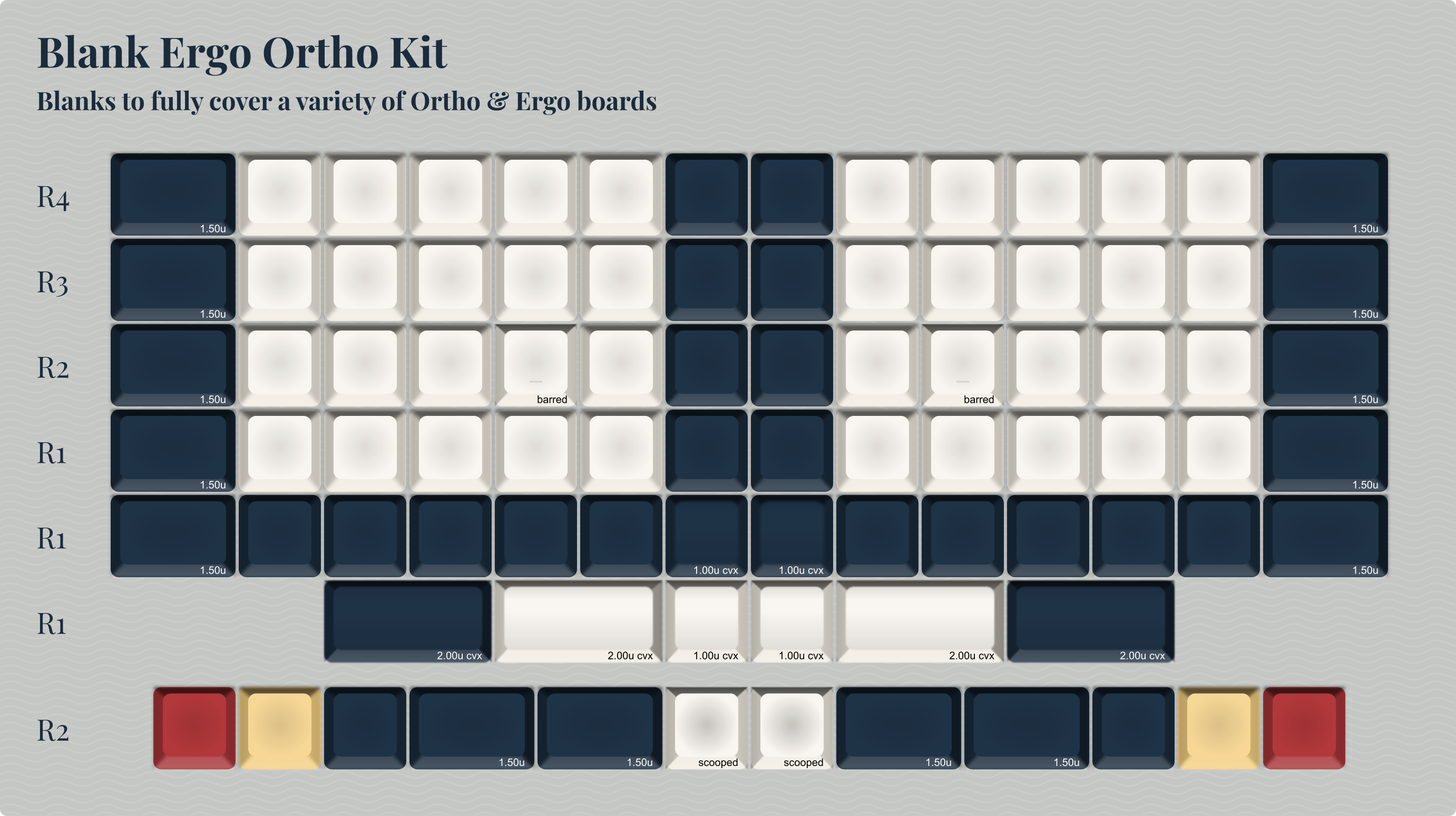

Blank Ergo Ortho Kit

  • For users who prefer blank alpha keys and/or blank modifier keys.
  • Enough blanks to cover an entire Preonic, Ergodox, or several other Ortho formats in the French Indigo colorway.

Madness Kit

  • This unique kit comes with enough keycaps to cover four whole atypical (and small) keyboards: one QAZ and three Ginny boards.
  • QAZ is a sub-40% board designed by tominabox1 & whydobearsxplod.
    • It re-purposes side modifier keys to serve as the outermost alpha & punctuation keys.
    • Note that for mould availability reasons, this kit provides all Q-row keys in the KAT R2 profile rather than R3.
    • QAZ is sold by Coffee Break Keyboards.
  • Ginny is a 10-key split chorded keyboard provided by g Heavy Industries.
    • Keyboard output is produced via ASETNIOP chording in one of three configurations (Colemak-like, Dvorak-like, or ASETNIOP).
    • These keycaps will only work with a Ginny with MX switches.

Back to Index

Existing Set Comparison

Early concept diagrams for KAT Napoleonic drew comparisons to GMK Rudy by Warrenified. Because the keycap designer community tends to frown on overly-similar colorways, Warrenified was consulted so as to double-check that we were in fact using different colors.

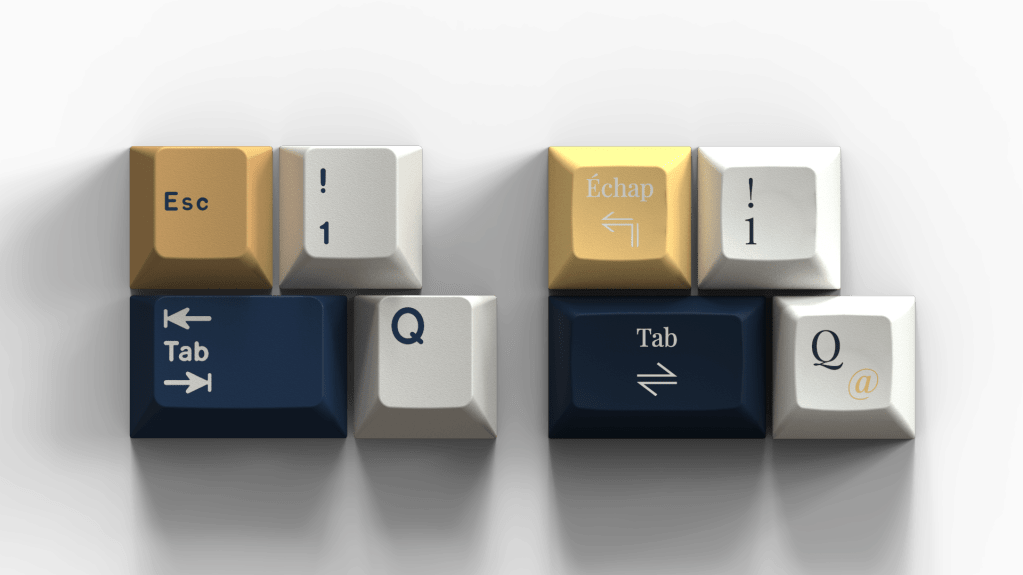

A comparison render of GMK Rudy (left) to alphas and “French Indigo” modifiers for KAT Napoleonic (right) is provided above. Render by Ulliam.

Color CodesGMK RudyKAT Napoleonic
Yellow / GoldRAL 1002Pantone 7403 U
BlueRAL 5003RAL 5011
WhiteCP (GMK stock color)RAL 9010

Back to Index


This section contains information about themed peripheral items: matching deskmats/deskpads, custom colored cables, coffee mugs, et cetera.


There are two deskmat designs. Each will be offered in two sizes: 900x400x4mm and 700x300x4mm. Final products may vary slightly from images below.


  • This is based on a famous map by Charles Joseph Minard.
  • It shows the size of Napoleon’s forces during his invasion of and subsequent retreat from Russia in 1812.
  • It is one of the most famous data visualizations in history.

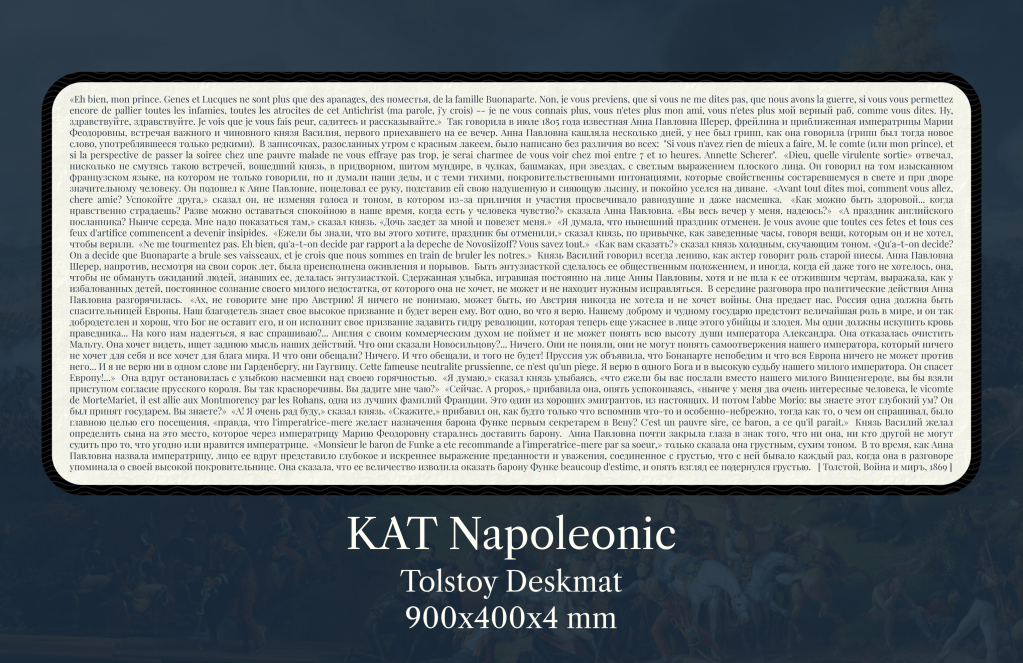

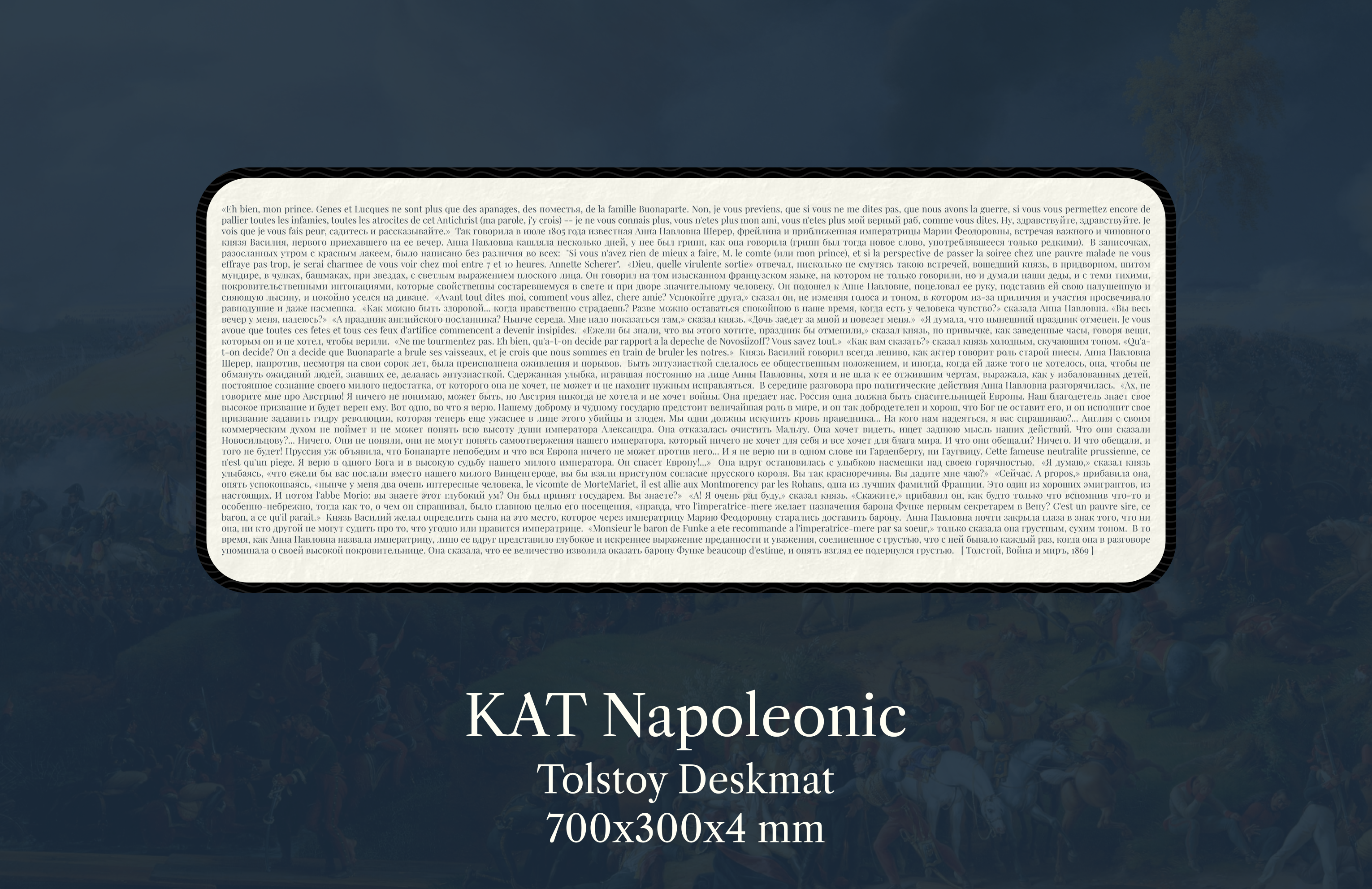

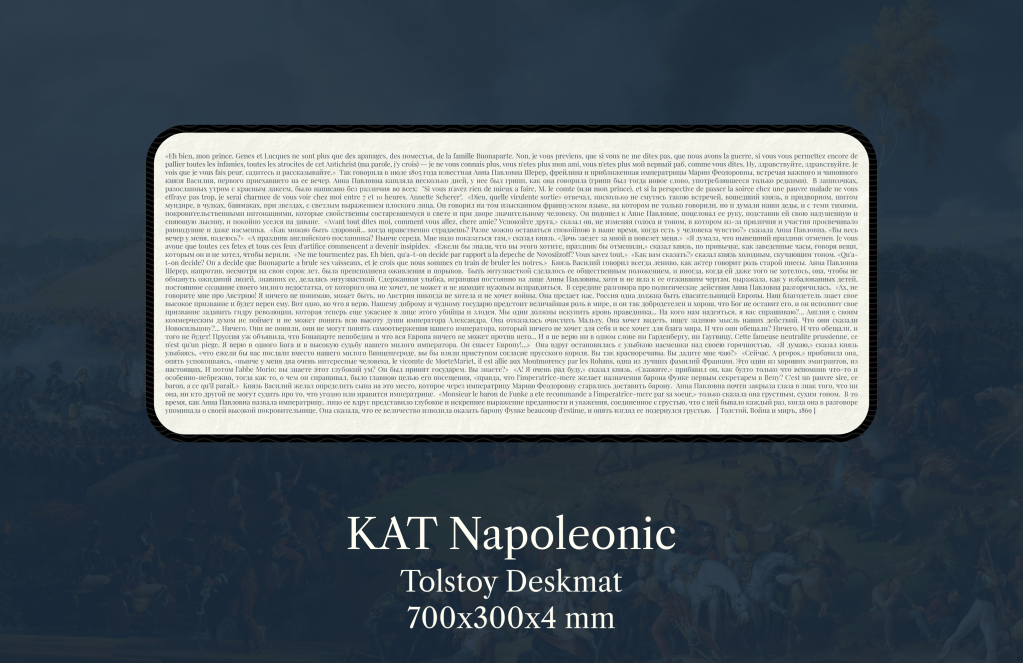

  • This contains an excerpt from the first chapter of the Russian text of Leo Tolstoy’s War and Peace.
  • In it, characters from the Russian aristocracy discuss Napoleon, Austria, and politics of the early 19th century.
  • Russian aristocrats of that era would apparently switch between French and Russian within a single conversation. Tolstoy does so here as well.

USB Cables

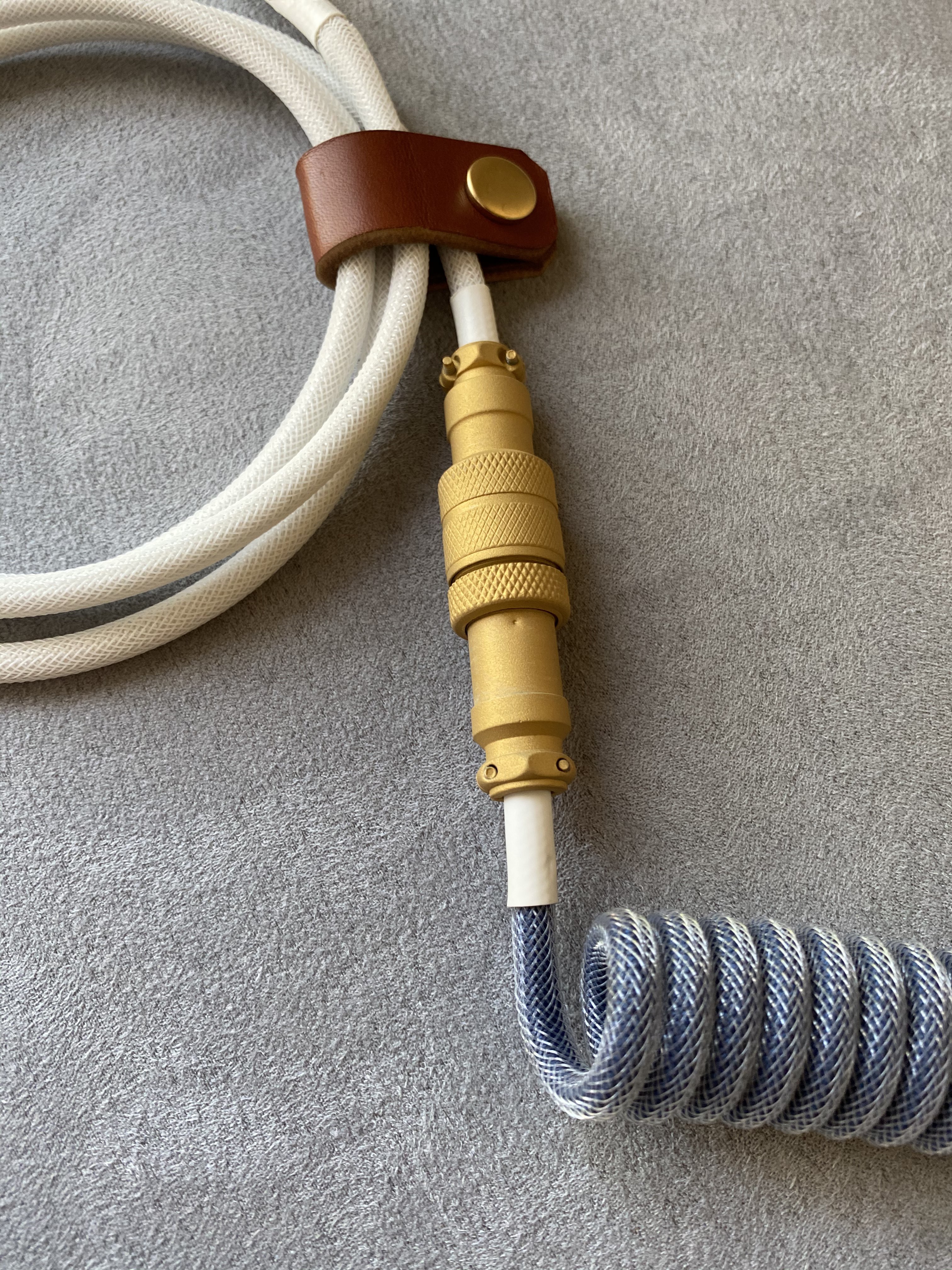

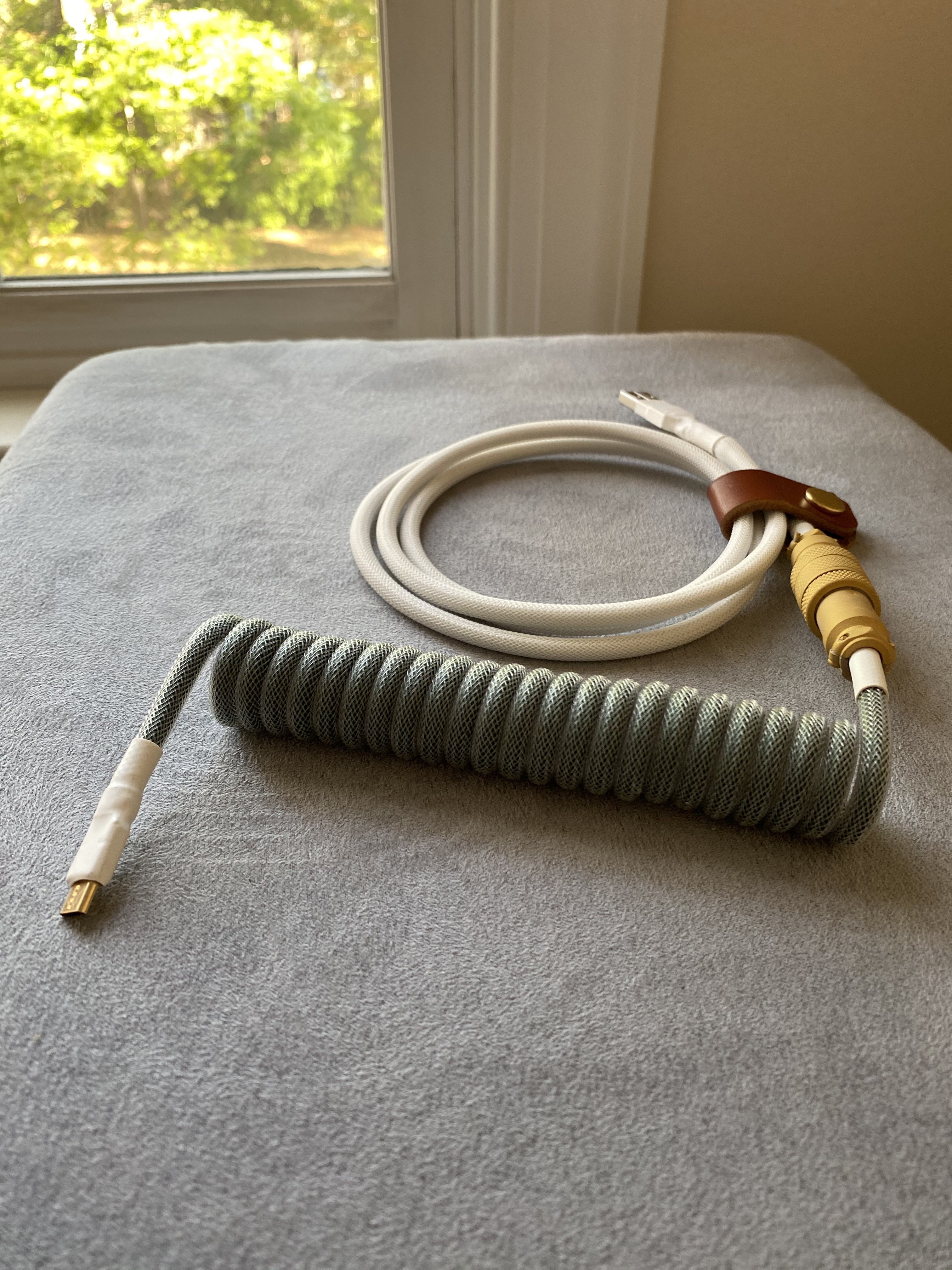

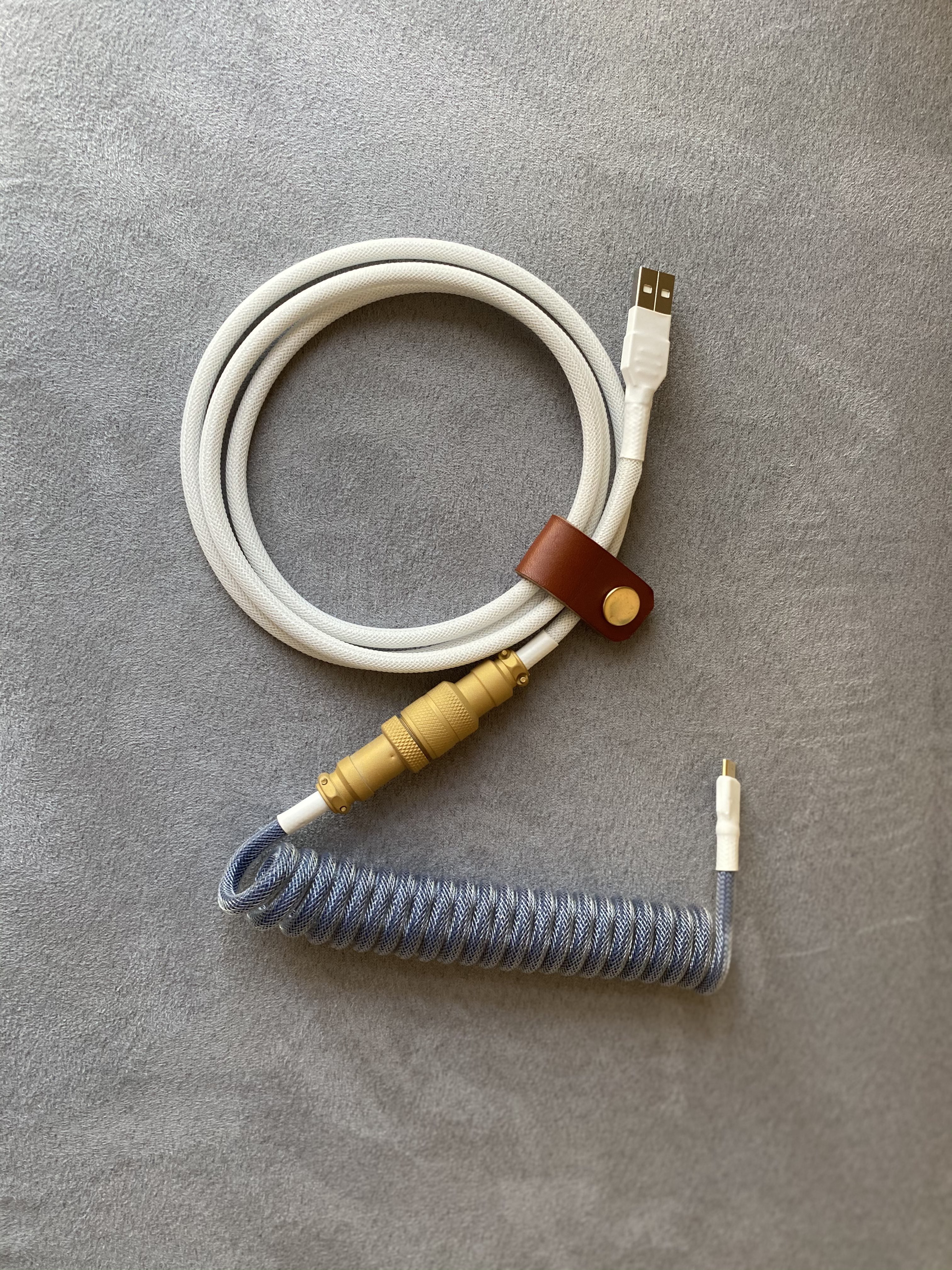

We are partnering with KustomKeys to manufacture custom Napoleonic-themed USB cables. They come in two different color schemes, matching as closely to the KAT Napoleonic colors as was possible for the materials available. Each colorway provides two further options for USB-C or USB-Micro.

These will be available on MK Ultra, Ashkeebs, myKeyboard.eu, and Fancy Customs. Unlike all other products shown here, the cables have a limited max quantity. They may not be available for the whole of the Group Buy period, so get them while they last.

More About the Cables

  • Approx. 1.2m in length
  • Approx. 14cm of coil with a 2.5 cm diameter
  • Built from extremely durable materials (paracord & techflex).
  • Every cable is made by hand with exquisite craftsmanship.
  • Compatible with every USB-Micro or USB-C keyboard.
  • Features genuine handmade, KustomKeys leather cable tie.
  • For keyboard use only.

Clothing & Coffee Mugs

I am partnering with Keeb Nerd to design official Napoleonic merchandise, currently including custom scarves (neck gaiters) and coffee mugs.

The Napoleonic Collection on Keeb Nerd

Unlike all other peripherals, these items are sold directly on the Keeb Nerd site. Discount codes for Keeb Nerd will be posted to my Discord server.

Artisan (Cancelled)

I previously announced a collaboration to produce a titanium artisan keycap using the Bonaparte family crest (bee) design. However, after receiving the sample, I am not confident enough in the end result to sell it alongside KAT Napoleonic, particularly given its price point. As a result, the artisan will not be sold.

Back to Index

ISO / ANSI Localization

Or, alternately titled:

Your Language Is Not Your Enter Key

Standard full-size keyboards worldwide tend to come in two major formats: ANSI and ISO* (though others exist), and they primarily differ based on the size and arrangement of their Enter keys.

ANSI boards tend to come with a horizontal rectangular 2.25u Enter key on the home row, with a 1.5u key above, used most often for backslash (default) or delete/backspace (common in HHKB-like boards).

ISO boards come with an upside-down L-shaped Enter key that spans two rows and leaves space for an additional 1u to its lower left. ISO boards also tend to split off an additional punctuation key from the left Shift, bringing the total key count for a standard board to 105.

* Technically, both the ANSI and ISO organizations actually provide specifications for both of these standards, but that’s a minor quibble.

In common conversations about keyboard localization in the mechanical keyboard community, ANSI has become a de facto nickname for the standard US QWERTY layout, while ISO tends to be used to describe one or more European locales’ boards, often using “ISO support” to mean “UK English support.”

Different countries’ localized boards do have different default assumptions regarding Enter key size and key placement, and keycap localization sets tend to follow those assumptions. For example, a Norwegian user that prefers to have an ANSI Enter key but wants use localized keycaps tends to have a few incorrect labels.

I’m here to tell you that it does not have to be that way. Your language may have a default format, but you don’t have to stick to it with KAT Napoleonic. Your language is not your Enter key.

KAT Napoleonic is here to make sure that you can get localized keycaps for both major formats, providing options for compatibility for ANSI & ISO key arrangements for all locales supported. With a bit of creativity and a configuration tool like QMK, you can use KAT Napoleonic to bring your language to your board regardless of the style of Enter key it normally supports.

See the diagram above for further details, and check out the example render of the S7 Elephant to see an example of a possible ANSI-based German layout (whereas German boards are normally ISO-based).

Back to Index

All Kits Gallery

See Kits for full descriptions.

  • Alphas - Default US English - Jefferson
  • TKL Mods - Austrian White
  • Alt TKL Mods - British Navy
  • Numpad - French Indigo
  • Numpad - Russian Green
  • Numpad - Austrian White
  • Ortho Mods - French Indigo
  • Ortho Mods - Russian Green
  • Ortho Mods - Austrian White
  • Forties Mods - French Indigo
  • Forties Mods - Russian Green
  • Ergo Mods - French Indigo
  • Ergo Mods - Russian Green
  • Spacebars
  • Novelties
  • Mac Kit
  • Blank Ergo Ortho Kit
  • Madness Kit
  • Alphas - Belgian & Apple French - Marie Louise
  • Alphas - BÉPO - Bépoleon Nonaparte
  • Alphas - Canadian French - Chateauguay
  • Alphas - Colemak - Jonathan Strange
  • Alphas - Hungarian & South Slavic - Doppelkaiser
  • Alphas - Nordic - Bernadotte
  • Alphas - Polish & Lithuanian - Uhlan
  • Alphas - UK English & Irish - Wellington
  • Alphas - US Int'l & Netherlands - Waterloo
  • Deskmat - 900x400x4mm - Minard
  • Deskmat - 900x400x4mm - Tolstoy
  • Deskmat - 700x300x4mm - Tolstoy

Back to Index


  • Thanks to my wife, the love of my life, who has been very patient and supportive of all my creative endeavors.
  • Thanks to my daughter, who is an absolutely adorable four-year-old and brings so much joy to my life.
  • Thanks to Erik (a.k.a. MK Ultra), who believed in this project while it was still a germ of an idea.
  • Huge thanks to manzel for his amazing and punctual render work.
  • Thanks to Konstantin for all the advice on the particulars of punctuation positioning in legends as well as for drawing the correct Cyrillic J for the Karađorđe alpha kit.
  • Thanks to myKeyboard.eu for committing to be a vendor for this set, and for helping with French conjugation & translation.
  • Thanks to onecreativemind for early advice on the modifier icons.
  • Thanks to Alex Lin at zFrontier for answering my KAT questions and committing to a Group Buy date early in this process.
  • Thanks to Ulliam for providing renders for the J02, the Prime_E, and the GMK Rudy comparison.
  • Thanks to shensmobile for sharing the Boardrun CNC file and for being a good creative sounding-board.
  • Thanks to walletburner for giving permission to render the Neuron keyboard.
  • Thanks to SomeGreekGuy for sharing the Abacus CNC file and giving permission to render it.
  • Thanks to the members and moderators of the many Discord servers where I’ve solicited feedback for this and other projects, with particular thanks to:

Back to Index

Copyright & Citations

Creative Commons Derivative Works

The following component designs and icons are licensed under Creative Commons Attribution-Share Alike 3 (full license text):

  • Austrian Shield Outline. Derivative work based on “Imperial Coat of Arms of the Empire of Austria.svg” by Sodacan @ Wikimedia Commons (https://tinyurl.com/omvdoy9).
  • Bee Monogram. Derivative work based on “Imperial Coat of Arms of France (1804-1815).svg” by Katepanomegas @ Wikimedia Commons (https://tinyurl.com/yd8ezb7p).
  • French Shield Outline. Derivative work based on “Imperial Coat of Arms of France (1804-1815).svg” by Katepanomegas @ Wikimedia Commons (https://tinyurl.com/yd8ezb7p).
  • Minard Chart. Derivative work based on “Minard’s Map (vectorized).svg” by Martin Grandjean @ Wikimedia Commons (https://tinyurl.com/yacwdyvt).
  • Russian Shield Outline. Derivative work based on “Imperial Standard of the Emperor of Russia (1858–1917).svg” by TRAJAN 117 @ Wikimedia Commons (https://tinyurl.com/y7fryjn4).

Public Domain Works Cited

Further Notes

All historical blurbs appearing in kit diagrams are paraphrased from various Wikipedia articles, except for a few selected quotes from:

No intellectual property from the above was used in the design of the actual keycaps or deskmats. Quotes and names used from Jonathan Strange & Mr Norrell in kit diagrams are intended as an homage. No endorsement of KAT Napoleonic by Susanna Clarke or Bloomsbury has been given nor should be implied.

All other designs are copyright 2020 by W. Alex Ronke (a.k.a. NoPunIn10Did). All Rights Reserved.

Back to Index

Links & Contacts

Main Sitehttps://katnapoleonic.com/kat-napoleonic/
SurveyKAT Napoleonic Survey
DiscordNoPun’s Keycap Designs
GeekhackIC Thread on Geekhack
KeebtalkIC Thread on Keebtalk

Copy the following to your forum profile signature if you’d like to help spread the word about KAT Napoleonic!

[url=https://tinyurl.com/kat-napoleonic][img width=360 height=120]https://i.imgur.com/73UjvEA.png[/img][/url]

Back to Index
